NSN 5990-01-021-7303 CR40980056, CR409800560, CR40980056-0
Product Details | ELECTRICAL RESOLVER
5990-01-021-7303 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: CR40980056, CR409800560, CR40980056-0, U216901, 11743669, 5990-01-021-7303, 01-021-7303, 5990010217303, 010217303
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 19 MAY 1976 | 01-021-7303 | 22966 ( RESOLVER, ELECTRICAL ) |

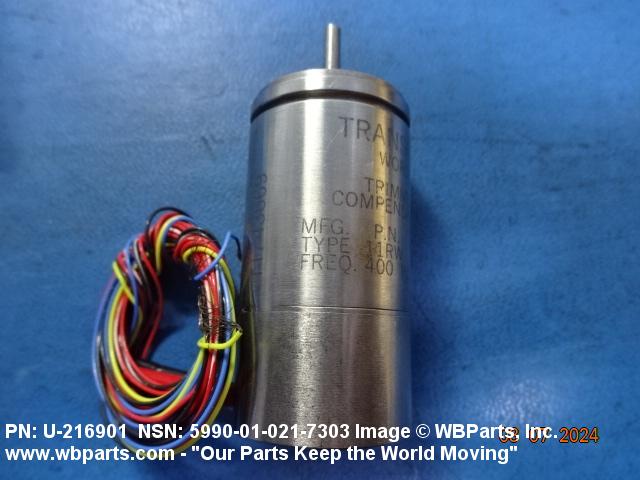

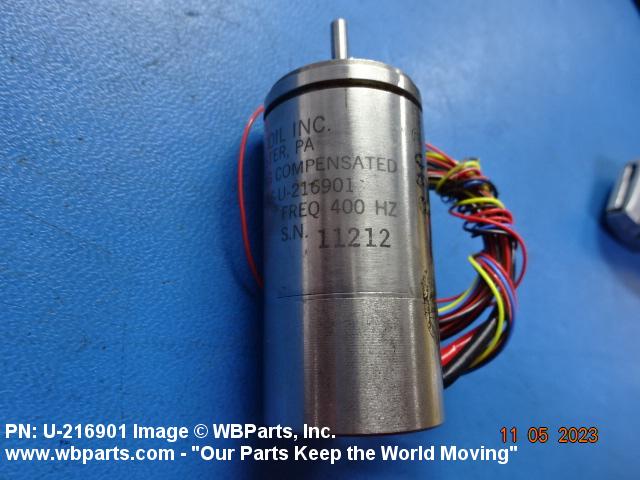

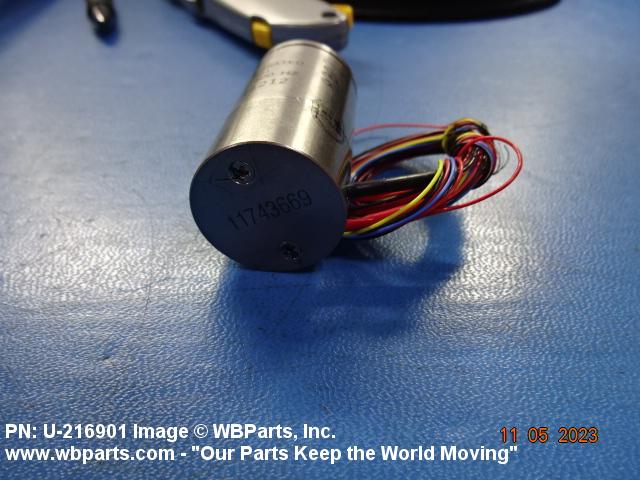

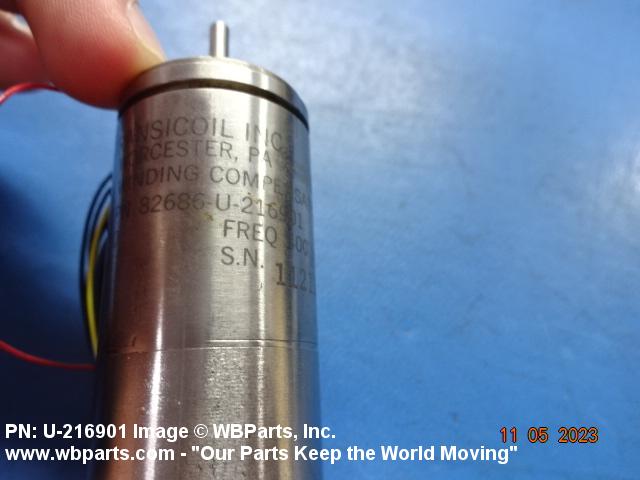

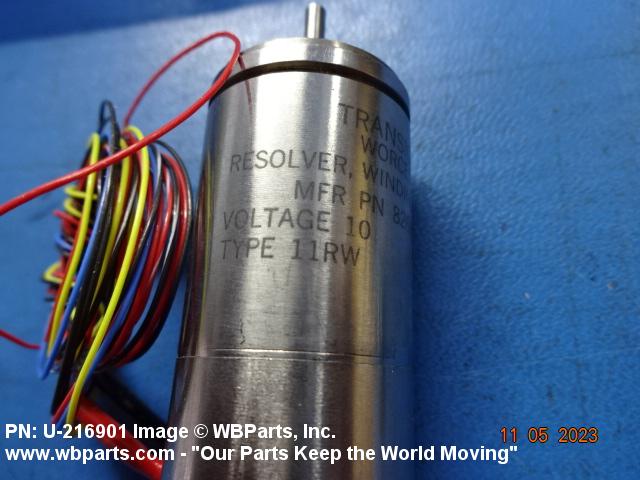

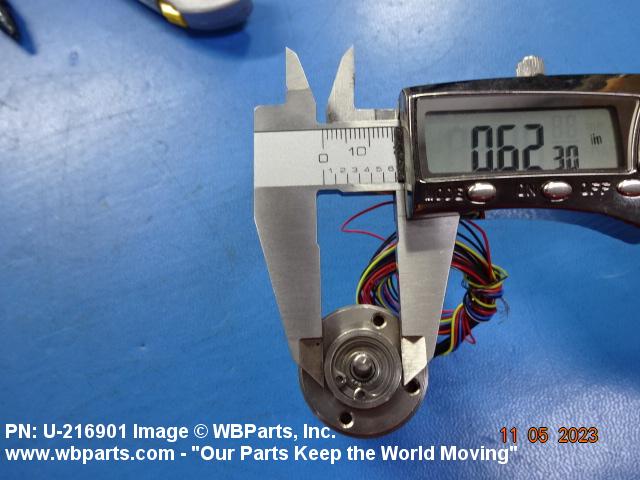

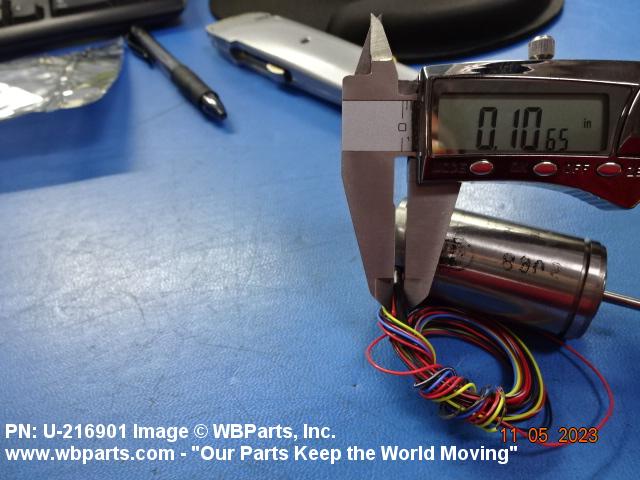

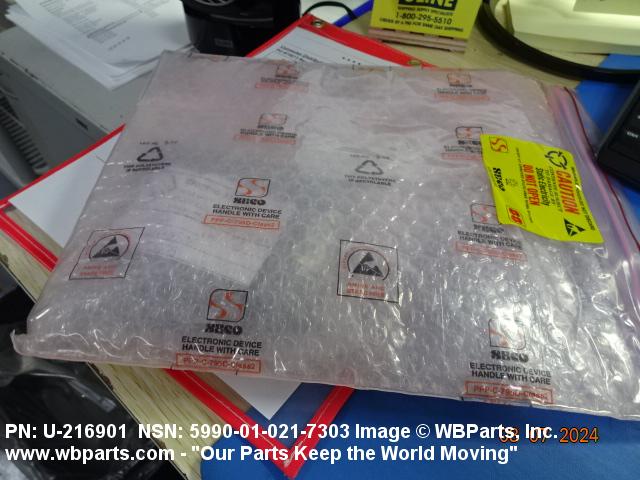

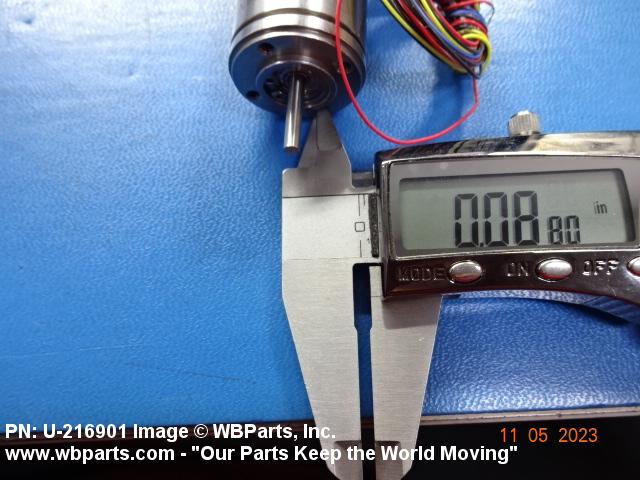

Drawings & Photos | NSN 5990-01-021-7303
Demand History | NSN 5990-01-021-7303
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-01-021-7303 | 2024-02-57 | 2 | Taiwan |
| 5990-01-021-7303 | 2023-06-165 | 20 | Taiwan |
| 5990-01-021-7303 | 2023-06-158 | 20 | Taiwan |
| 5990-01-021-7303 | 2023-06-156 | 20 | TW |
| 5990-01-021-7303 | 2023-06-156 | 20 | TW |
| 5990-01-021-7303 | 2022-12-359 | 20 | Taiwan |
| CR40980056 | 2021-09-259 | 2 | DIBBS |
| CR40980056-0 | 2021-09-259 | 2 | DIBBS |
| U216901 | 2021-09-259 | 2 | DIBBS |
| CR40980056 | 2020-03-86 | 5 | DIBBS |
| CR40980056-0 | 2020-03-86 | 5 | DIBBS |
| U216901 | 2020-03-86 | 5 | DIBBS |
| CR40980056 | 2020-02-49 | 5 | DIBBS |
| CR40980056-0 | 2020-02-49 | 5 | DIBBS |
| U216901 | 2020-02-49 | 5 | DIBBS |
| CR40980056 | 2020-02-38 | 3 | DIBBS |
| CR40980056-0 | 2020-02-38 | 3 | DIBBS |
| U216901 | 2020-02-38 | 3 | DIBBS |
| CR40980056 | 2020-02-37 | 5 | DIBBS |
| CR40980056-0 | 2020-02-37 | 5 | DIBBS |
| U216901 | 2020-02-37 | 5 | DIBBS |
| CR40980056 | 2020-01-20 | 3 | DIBBS |
| CR40980056-0 | 2020-01-20 | 3 | DIBBS |
| U216901 | 2020-01-20 | 3 | DIBBS |
| CR40980056 | 2019-08-230 | 5 | DIBBS |
| CR40980056-0 | 2019-08-230 | 5 | DIBBS |
| U216901 | 2019-08-230 | 5 | DIBBS |
| CR40980056 | 2019-08-220 | 3 | DIBBS |
| CR40980056-0 | 2019-08-220 | 3 | DIBBS |
| U216901 | 2019-08-220 | 3 | DIBBS |
| 5990-01-021-7303 | 2012-10-302 | 2 | DIBBS |
| 5990-01-021-7303 | 2012-10-302 | 4 | DIBBS |
| 5990-01-021-7303 | 2012-06-160 | 2 | DIBBS |
| 5990-01-021-7303 | 2012-01-20 | 4 | DIBBS |
| 5990-01-021-7303 | 2010-11-330 | 1 | DIBBS |
| 5990-01-021-7303 | 2010-09-264 | 2 | DIBBS |
| 5990-01-021-7303 | 2009-05-141 | 5 | DIBBS |
| 5990-01-021-7303 | 2007-12-341 | 1 | DIBBS |
| 5990-01-021-7303 | 2007-05-138 | 5 | DIBBS |
| 5990-01-021-7303 | 2007-01-31 | 5 | DIBBS |
Cross Reference | NSN 5990-01-021-7303
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-01-021-7303
Related Products | NSN 5990-01-021-7303
Technical Data | NSN 5990-01-021-7303
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 11 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 10.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 4.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 10.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZSO RESISTANCE IN OHMS | 380.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 2200.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 610.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 250.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 330.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 305.00 NOMINAL |
| TRANSFORMATION RATIO | 0.980 ROTOR TO STATOR NOMINAL |
| COMPENSATION METHOD | WINDING COMPENSATED |
| COMPENSATOR DC RESISTANCE IN OHMS | 350.00 NOMINAL |
| COMPENSATOR TRANSFORMATION RATIO IN PERCENT | 0.990 ROTOR TO COMPENSATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 9.000 OUTPUT TO INPUT NOMINAL |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 10.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 10.00 |
| OUTPUT VOLTAGE FUNCTIONAL ERROR RANGE IN PERCENT | -0.1 TO 0.1 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 16.0 CENTIMETER-GRAMS NOMINAL |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 4.0 CENTIMETER-GRAMS NOMINAL |
| BODY STYLE | A3 STANDARD ROUND C |

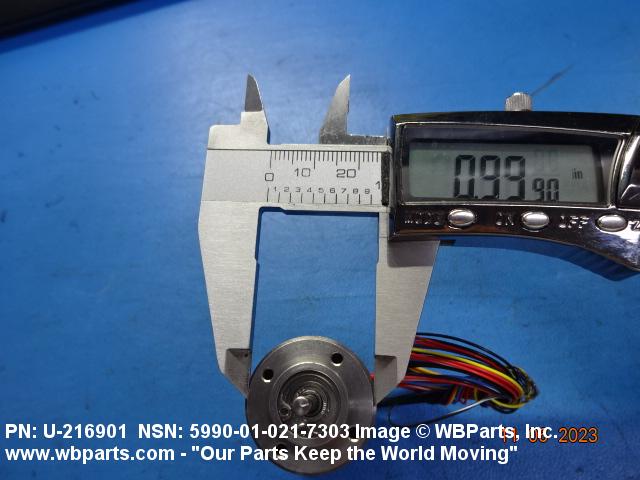

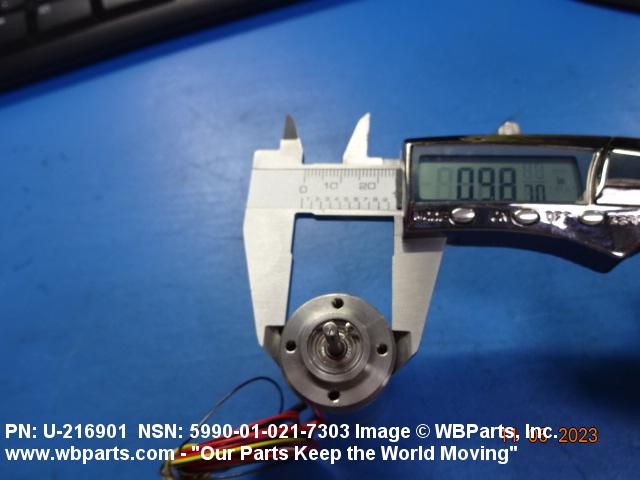

| SHOULDER DIAMETER | 0.9995 INCHES MINIMUM AND 1.0000 INCHES MAXIMUM |

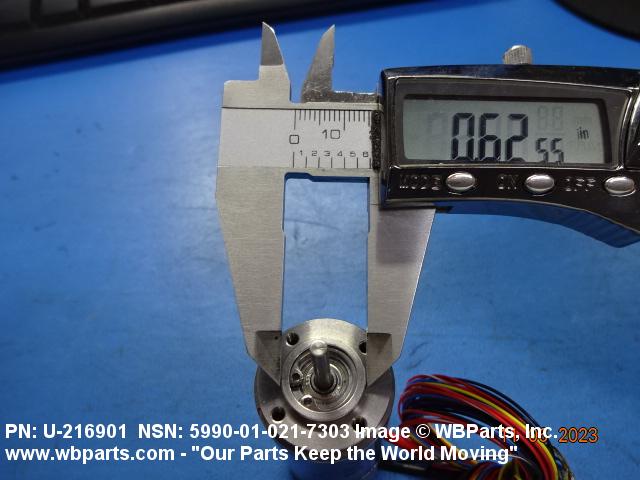

| PILOT DIAMETER | 0.6245 INCHES MINIMUM AND 0.6250 INCHES MAXIMUM |

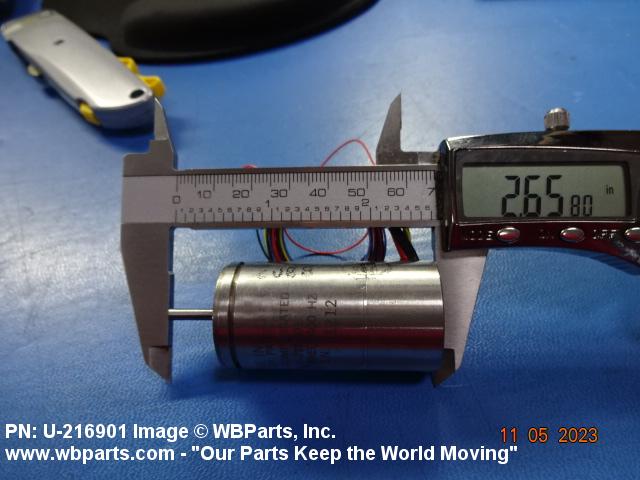

| OVERALL LENGTH | 2.6740 INCHES MAXIMUM |

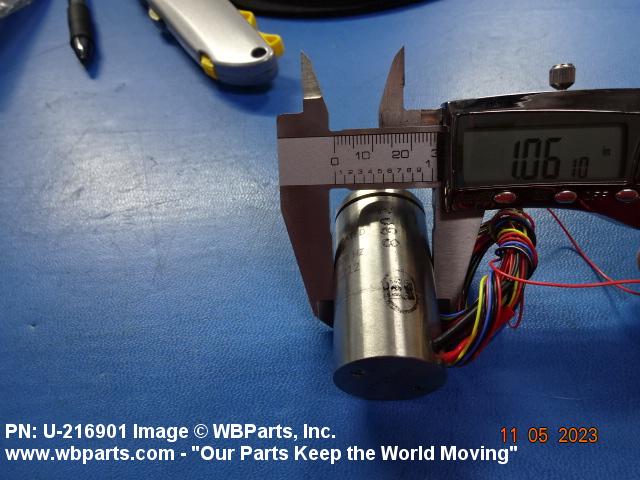

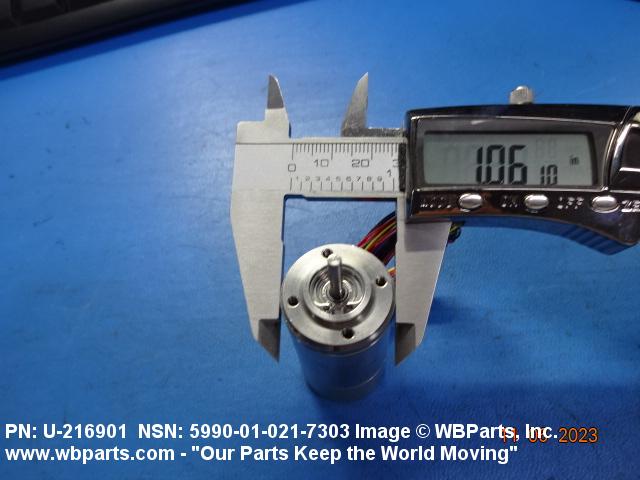

| FLANGE DIAMETER | 1.0570 INCHES MINIMUM AND 1.0650 INCHES MAXIMUM |

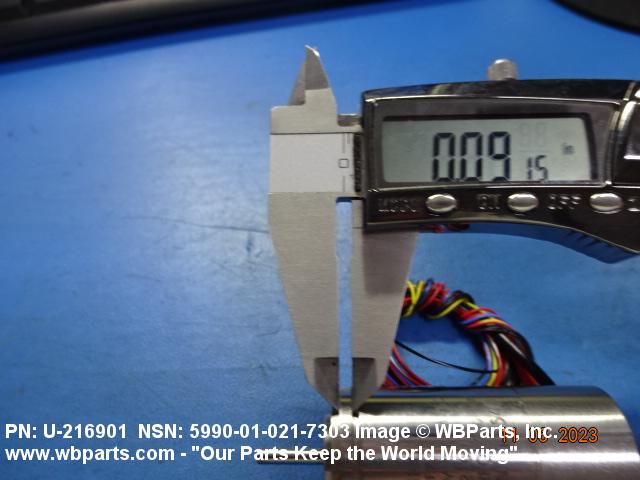

| FLANGE THICKNESS | 0.0900 INCHES MINIMUM AND 0.0960 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.9700 INCHES MINIMUM AND 0.9800 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0450 INCHES MINIMUM AND 0.0550 INCHES MAXIMUM |
| PILOT LENGTH | 0.0590 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.0590 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.0650 INCHES MAXIMUM |
| ALIGNMENT HOLE DEPTH | 0.1250 INCHES MINIMUM |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 0.8090 INCHES MINIMUM AND 0.8150 INCHES MAXIMUM |
| ALIGNMENT HOLE QUANTITY | 4 |
| SHAFT TYPE | ROUND SINGLE SHAFT |

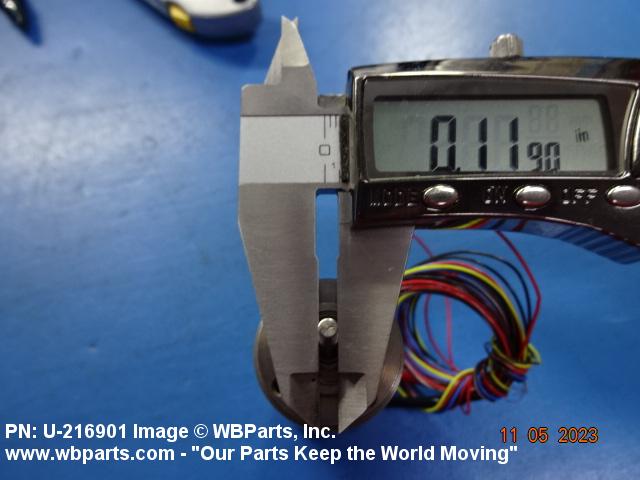

| SHAFT DIAMETER | 0.1195 INCHES MINIMUM AND 0.1200 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.6540 INCHES MINIMUM AND 0.6780 INCHES MAXIMUM SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 8 WIRE LEAD |
| TERMINAL LOCATION | SIDE |
| BODY MATERIAL | STEEL, STAINLESS |
Restrictions/Controls & Freight Information | NSN 5990-01-021-7303
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-01-021-7303
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
