NSN 5990-00-926-4324 M20708/56-01B, M20708/56C-001, M207085601B

Product Details | RECEIVER-TRANSMITTER SYNCHRO

5990-00-926-4324 A synchro having a dual purpose. It may be used in applications requiring either a receiver or transmitter. For synchros having a single purpose, see SYNCHRO, RECEIVER and SYNCHRO, TRANSMITTER.

Part Alternates: M20708/56-01B, M20708/56C-001, M207085601B, M2070856C001, AS20708/56 , AS2070856, AY2401F12C2, MIL-S-20708/56, MILS2070856, MILS20708C1A56BM2070, MILS233581F, MIL-S-2335-8-1F, TRX236N3, TRX23-6N3 , 2.012956, 2012956, 22775340001, 2277534-0001, 23M4F1Q, 23TR6B, 23TRX6, 23TRX6A, 23TRX6B, 4913169-00, 512291, 59 000-016, 59000016, 5M736098011, 5M7360-980-11, 8151853085PC22, 815-1853085PC22, 8212778, 5990-00-926-4324, 00-926-4324, 5990009264324, 491316900, 009264324

Electrical and Electronic Equipment Components | Synchros and Resolvers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	09 MAY 1966	00-926-4324	27218 ( SYNCHRO, RECEIVER-TRANSMITTER )

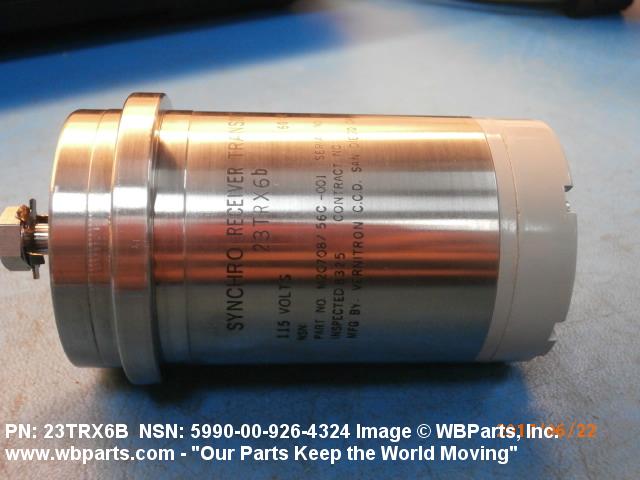

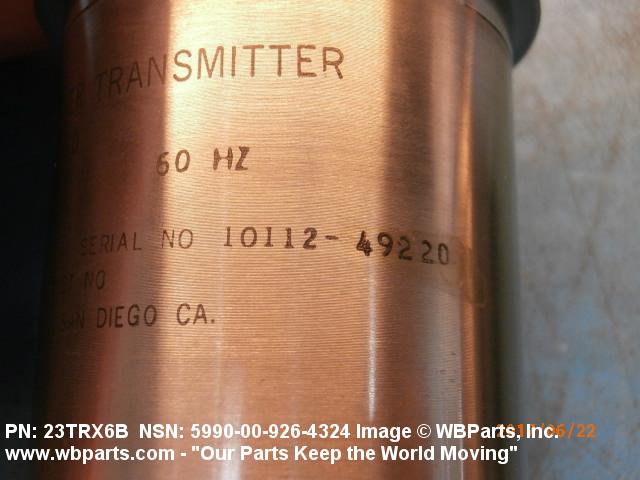

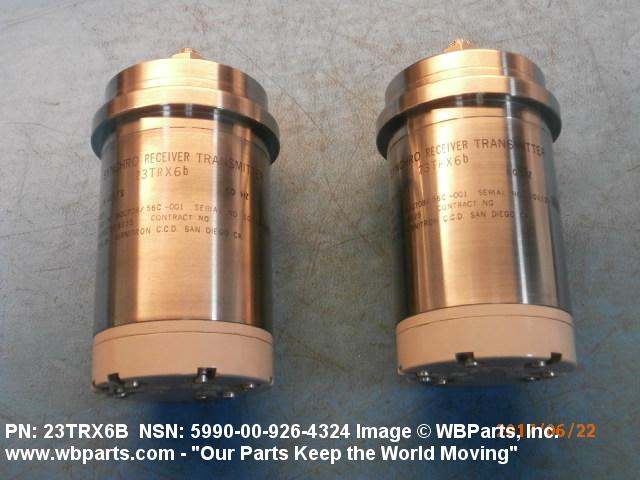

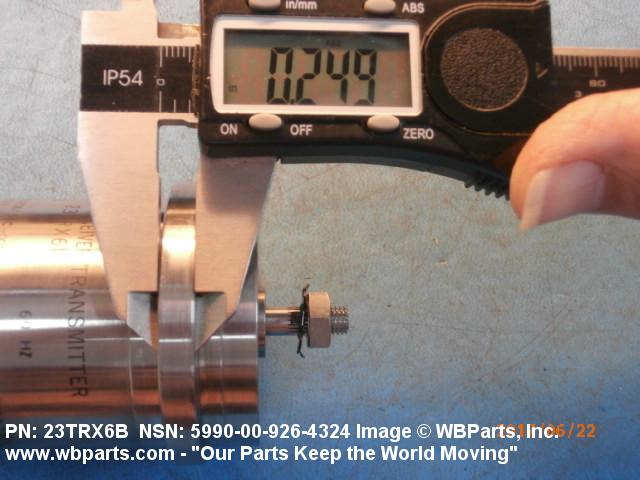

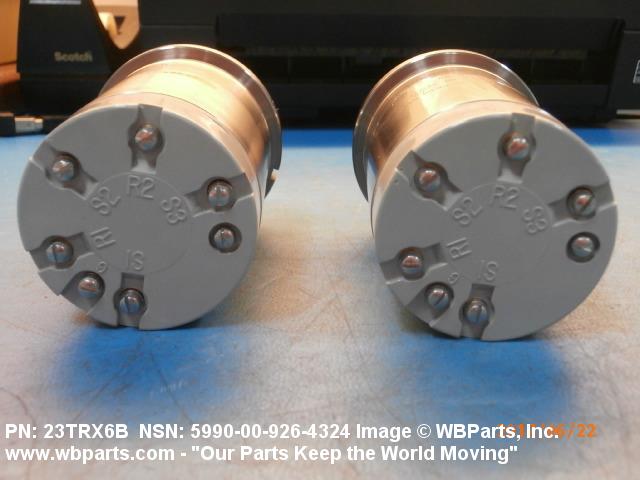

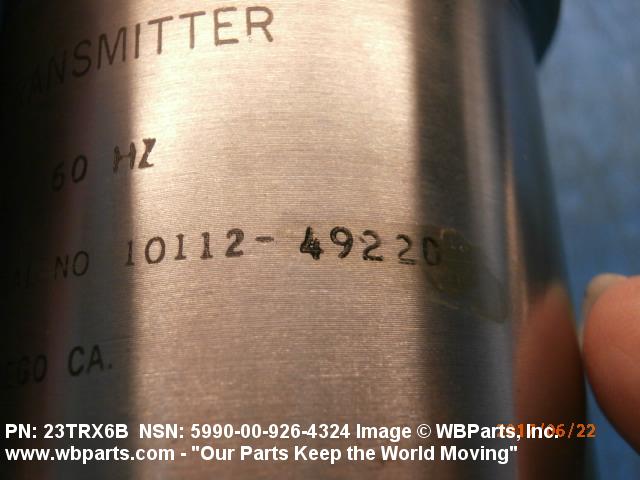

Drawings & Photos | NSN 5990-00-926-4324

Part Number	Request Date	QTY	Origin
5990-00-926-4324	2024-04-114	1	US
5990-00-926-4324	2023-10-291	30	DIBBS
5990-00-926-4324	2023-10-284	5	United States
5990-00-926-4324	2023-08-233	1	South Korea
5990-00-926-4324	2023-08-218	47	DIBBS
5990-00-926-4324	2023-05-151	31	DIBBS
5990-00-926-4324	2022-11-321	18	DIBBS
5990-00-926-4324	2022-11-317	33	DIBBS
5990-00-926-4324	2022-08-237	128	DIBBS
23TRX6B	2022-04-111	1	South Korea
5990-00-926-4324	2022-02-53	4	US
M207085601B	2022-01-14	2	United States
5990-00-926-4324	2021-11-319	91	DIBBS
5990-00-926-4324	2021-07-196	10	Korea
M2070856C001	2021-06-173	9	United States
5990-00-926-4324	2021-04-112	4	NL
5990-00-926-4324	2021-04-112	5	NL
23TRX6B	2020-10-302	1	South Korea
5990-00-926-4324	2020-09-248	1	Greece
5990-00-926-4324	2020-03-72	20	DIBBS
5990-00-926-4324	2019-12-337	18	DIBBS
5990-00-926-4324	2019-10-302	2	United States
5990-00-926-4324	2019-09-266	12	DIBBS
5990-00-926-4324	2019-09-254	12	DIBBS
5990-00-926-4324	2019-07-192	1	United States
5990-00-926-4324	2018-10-288	8	DIBBS
5990-00-926-4324	2018-09-266	25	DIBBS
5990-00-926-4324	2018-08-228	58	DIBBS
5990-00-926-4324	2018-07-203	23	DIBBS
5990-00-926-4324	2018-06-173	10	US
23TRX6A	2018-06-171	2	Norway
M2070856C001	2018-06-171	2	Norway
23TRX6A	2018-04-120	1	US
5990-00-926-4324	2018-04-120	1	PE
5990-00-926-4324	2017-11-334	12	Korea
5990-00-926-4324	2017-11-334	21	DIBBS
23TRX6B	2017-09-270	1	KR
5990-00-926-4324	2017-09-267	16	DIBBS
5990-00-926-4324	2017-07-207	3	US
5990-00-926-4324	2017-03-86	2	United States
5990-00-926-4324	2017-01-27	1	United States
5990-00-926-4324	2017-01-22	10	CA
5990-00-926-4324	2016-07-187	35	DIBBS
5990-00-926-4324	2016-04-119	28	DIBBS
5990-00-926-4324	2016-03-74	29	DIBBS
5990-00-926-4324	2016-03-63	29	DIBBS
5990-00-926-4324	2016-02-39	24	DIBBS
5990-00-926-4324	2015-11-327	22	DIBBS
5990-00-926-4324	2015-11-316	22	DIBBS
5990-00-926-4324	2015-10-303	21	DIBBS
5990-00-926-4324	2015-10-291	21	DIBBS
M207085601B	2015-07-182	4	US
5990-00-926-4324	2014-11-316	31	DIBBS
M207085601B	2014-08-218	4	US
M207085601B	2014-08-216	4	PH
5990-00-926-4324	2014-05-142	41	DIBBS
23TRX6B	2014-02-43	1	US
23TRX6A	2014-01-27	1	US
5990-00-926-4324	2013-12-351	2	us
M207085601B	2013-12-344	1	US
M207085601B	2013-12-344	2	US
5990-00-926-4324	2013-11-326	44	DIBBS
AY2401F12C2	2013-09-269	7	Canada
5990-00-926-4324	2013-03-78	33	DIBBS
5990-00-926-4324	2013-02-58	36	DIBBS
5990-00-926-4324	2012-11-326	50	DIBBS
5990-00-926-4324	2012-09-272	26	DIBBS
23TRX6B	2012-09-268	5	US
M2070856C001	2012-09-268	2	US
5990-00-926-4324	2012-09-251	2	US
5990-00-926-4324	2012-08-244	38	DIBBS
5990-00-926-4324	2012-05-139	125	DIBBS
5990-00-926-4324	2012-05-135	68	DIBBS
5990-00-926-4324	2011-09-245	53	DIBBS
5990-00-926-4324	2011-08-213	29	DIBBS
5990-00-926-4324	2011-05-130	40	DIBBS
23TR6B	2011-04-98	1	ID
5990-00-926-4324	2011-02-42	12	MY
23TRX6B	2010-12-356	2	VN
5990-00-926-4324	2010-11-305	51	DIBBS
5990-00-926-4324	2010-10-285	2	United Kingdom
5990-00-926-4324	2010-09-270	24	DIBBS
5990-00-926-4324	2010-09-250	2	US
5990-00-926-4324	2010-09-250	7	DIBBS
5990-00-926-4324	2010-08-236	16	DIBBS
23TRX6A	2010-08-224	25	US
5990-00-926-4324	2010-07-210	49	DIBBS
5990-00-926-4324	2010-06-181	23	DIBBS
5990-00-926-4324	2010-06-174	1	Norway
5990-00-926-4324	2010-06-159	27	DIBBS
23TRX6	2010-06-152	4	United States
5990-00-926-4324	2010-04-105	2	US
5990-00-926-4324	2010-02-47	4	US
5990-00-926-4324	2010-01-19	10	Korea
5990-00-926-4324	2009-11-314	1	South Korea
5990-00-926-4324	2009-09-264	17	DIBBS
5990-00-926-4324	2009-05-133	52	DIBBS
5990-00-926-4324	2008-10-277	50	DIBBS
5990-00-926-4324	2008-02-43	55	DIBBS
5990-00-926-4324	2007-07-188	38	DIBBS

Cross Reference | NSN 5990-00-926-4324

Part Number	Cage Code	Manufacturer
2.012956	D2865	RAYTHEON ANSCHUETZ GMBH DBA RAYTHEON ELECTRICS GMBH
2277534-0001	02987	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX FLIGHT SYSTEMS
23M4F1Q	K0624	MUIRHEAD AEROSPACE LTD DBA MUIRHEAD AVIONICS
23TR6B	96169	ELECTRIC BOAT CORPORATION
23TRX6	12140	INDEPENDENT PROTECTION CO INC
23TRX6	12763	DYNALEC CORPORATION
23TRX6	28199	L-3 COMMUNICATIONS CORPORATION DBA L-3 HENSCHEL
23TRX6	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
23TRX6A	12763	DYNALEC CORPORATION
23TRX6A	19315	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS FORMER BENDIX NAVIGATION AND
23TRX6B	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.
23TRX6B	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
23TRX6B	C0689	CONSILIUM GMBH
23TRX6B	S3012	CONSILIUM MARINE & SAFETY AB,NAVIGATION
4913169-00	90536	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN
512291	23667	SMITHS DETECTION, INC. DIV EDGEWOOD
59 000-016	D9853	ROCKWELL COLLINS DEUTSCHLAND SERVICES GMBH
5M7360-980-11	D1901	AIRBUS DEFENCE AND SPACE GMBH DIV SEPS
815-1853085PC22	80064	NAVAL SHIP SYSTEMS COMMAND
8212778	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
AS20708/56	0VH01	SAE CUSTOMER SERVICE DEPT 2045
AS20708/56	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
AY2401F12C2	55972	HONEYWELL INTL INC DEFENSE AVIONICS SYSTEMS
M20708/56-01B	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.
M20708/56-01B	81343	SOCIETY OF AUTOMOTIVE ENGINEERS INC
M20708/56-01B	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M20708/56C-001	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-20708/56	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-S-2335-8-1F	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MILS20708C1A56BM2070	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
TRX23-6N3	10112	GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5990-00-926-4324

Compare

Related Products | NSN 5990-00-926-4324

5990-00-927-3074, 5990-00-927-3076, 5990-00-927-3122, 5990-00-927-3124, 5990-00-927-3127

Technical Data | NSN 5990-00-926-4324

Characteristic	Specifications
BODY SIZE	23
ROTOR INPUT VOLTAGE RATING IN VOLTS	115.0 NOMINAL
ROTOR INPUT CURRENT RATING	210.0 MILLIAMPERES MAXIMUM
ROTOR INPUT ELECTRICAL POWER RATING	5.6 WATTS MAXIMUM
FREQUENCY IN HERTZ	60.0 NOMINAL
ZSS IMPEDANCE MAGNITUDE IN OHMS	110.00 MINIMUM AND 145.00 MAXIMUM
ZSS IMPEDANCE ANGLE IN DEG	10.00 MINIMUM AND 17.00 MAXIMUM
TRANSFORMATION RATIO	0.783 STATOR TO ROTOR NOMINAL
PHASE SHIFT ANGLE IN DEG	11.000 INPUT TO OUTPUT NOMINAL
MAXIMUM TEMP RISE	35.0 DEG CELSIUS
MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT	60.00 OUTPUT
MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT	160.00
ELECTRICAL ERROR ANGULAR RANGE IN MINUTES	-8.0 TO 8.0
RECEIVER ERROR ANGULAR RANGE IN MINUTES	-45.0 TO 45.0
TORQUE GRADIENT PER ANGULAR DEG	0.120 INCH-OUNCES MINIMUM
BODY STYLE	A4 STANDARD ROUND D
SHOULDER DIAMETER	1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM
PILOT DIAMETER	0.5950 INCHES NOMINAL

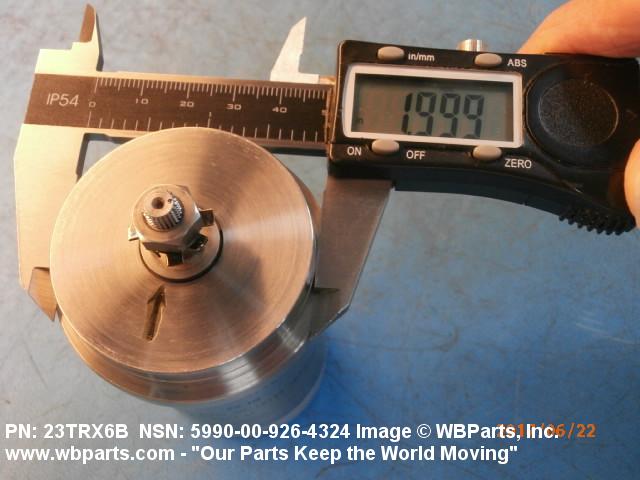

SECOND SHOULDER DIAMETER	1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM

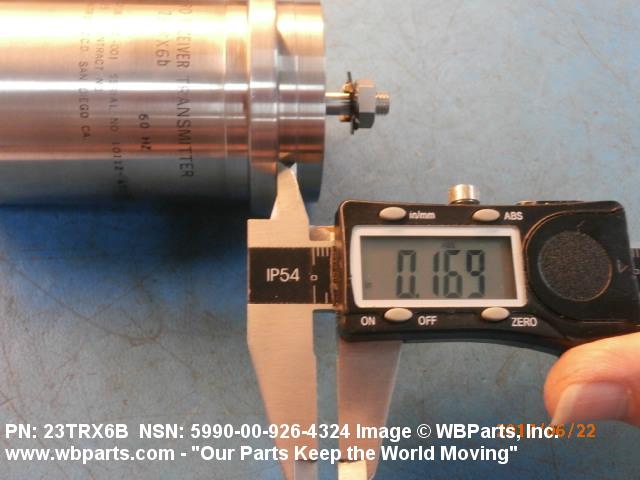

SECOND SHOULDER LENGTH	0.1700 INCHES NOMINAL

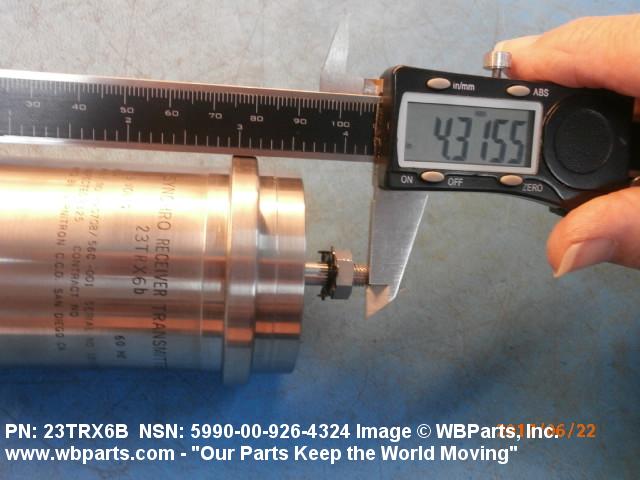

OVERALL LENGTH	4.2990 INCHES NOMINAL

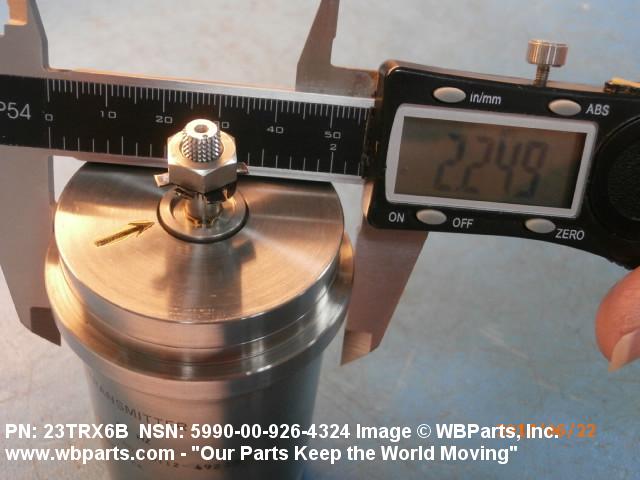

FLANGE DIAMETER	2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM
FLANGE THICKNESS	0.2500 INCHES NOMINAL
BODY DIAMETER	1.9900 INCHES MAXIMUM
PILOT LENGTH	0.0430 INCHES NOMINAL
SHOULDER LENGTH	0.2500 INCHES NOMINAL
AFT OF FIRST FLANGE DIAMETER	1.9400 INCHES MAXIMUM
MOUNTING SURFACE TO TERMINAL END DISTANCE	3.5800 INCHES NOMINAL
SHAFT TYPE	SPLINE W/THREADS SINGLE SHAFT

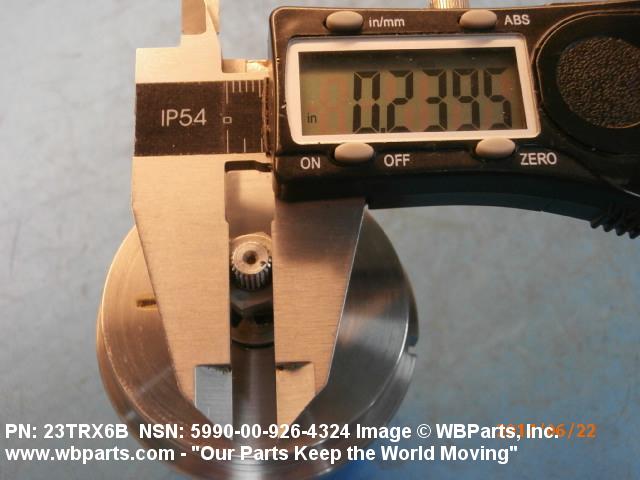

SHAFT DIAMETER	0.2403 INCHES MINIMUM AND 0.2405 INCHES MAXIMUM SINGLE SHAFT
SHAFT LENGTH	0.7190 INCHES NOMINAL SINGLE SHAFT
SHAFT THREAD LENGTH	0.2900 INCHES NOMINAL SINGLE SHAFT
SPLINE TOOTH QUANTITY	22 SINGLE SHAFT
SPLINE TOOTH DIAMETRAL PITCH	96 SINGLE SHAFT
SHAFT THREAD SERIES DESIGNATOR	UNF SINGLE SHAFT
SHAFT NOMINAL THREAD SIZE	0.250 INCHES SINGLE SHAFT
SHAFT THREAD CLASS	2A SINGLE SHAFT
SHAFT THREAD DIRECTION	RIGHT-HAND SINGLE SHAFT

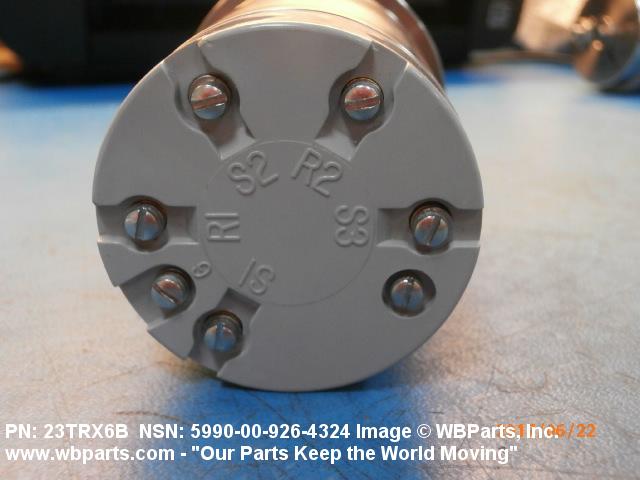

TERMINAL TYPE AND QUANTITY	5 SCREW
TERMINAL LOCATION	REAR
BODY MATERIAL	STEEL, STAINLESS
TEST DATA DOCUMENT	81349-MIL-S-20708 SPECIFICATION
SPECIFICATION/STANDARD DATA	81349-MIL-S-20708/56 GOVERNMENT SPECIFICATION
III FRAGILITY FACTOR	MODERATELY RUGGED
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD	M20708/56-01B

Restrictions/Controls & Freight Information | NSN 5990-00-926-4324

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	062120	GENERATORS/MOTORS/PARTS NOI
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	593	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	V	Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5990-00-926-4324

Category	Code	Description
Materiel Category and Inventory Manager	Q	Electronics Materiel (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Materiel Management Aggregation Code	EH	SX:ELECTRONIC COMPONENTS
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
