Product Details | RECEIVER-TRANSMITTER SYNCHRO

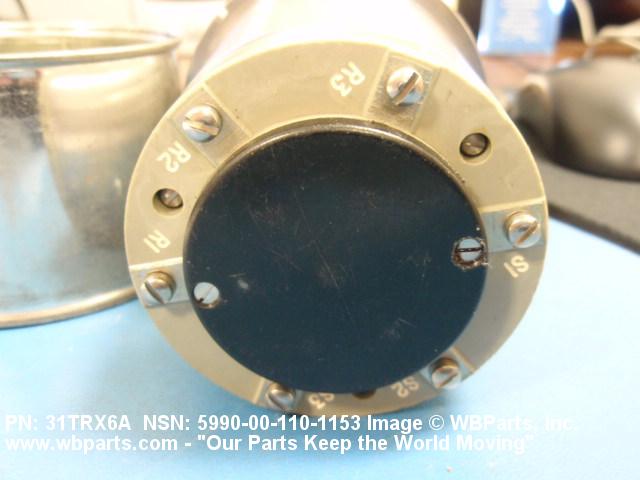

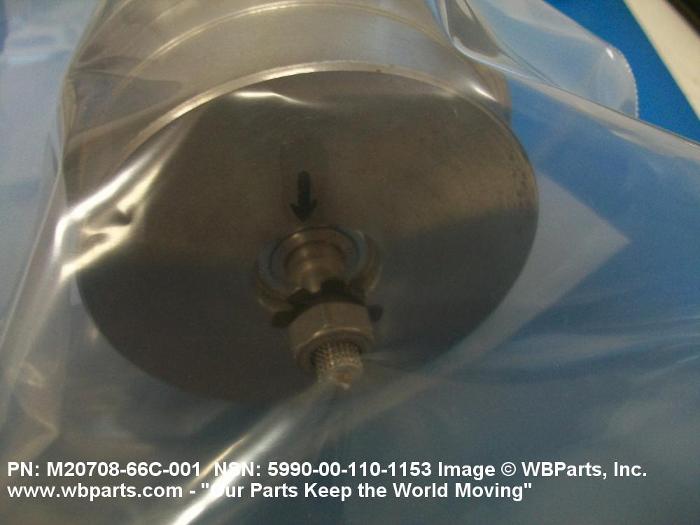

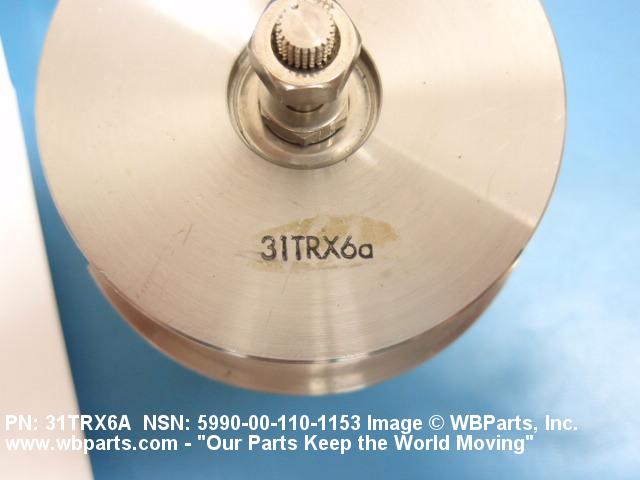

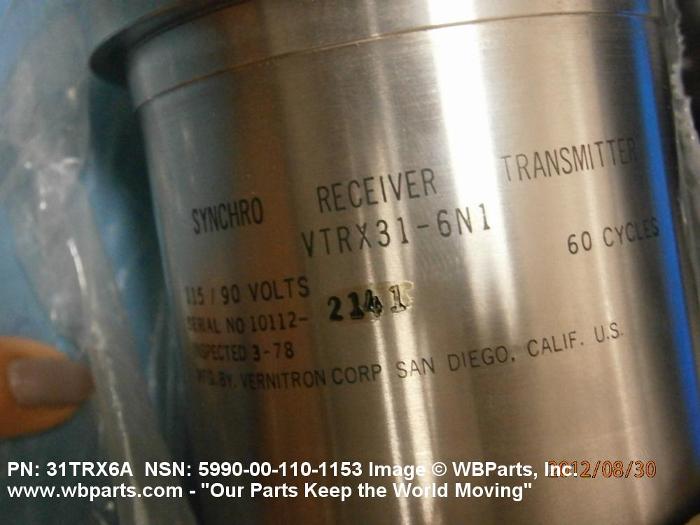

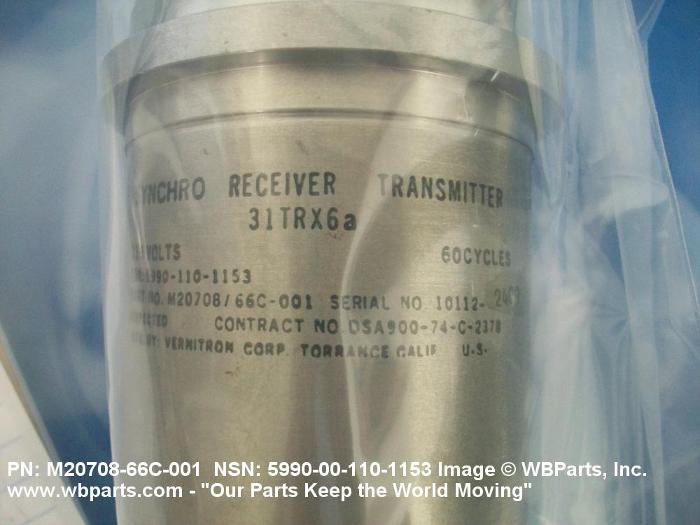

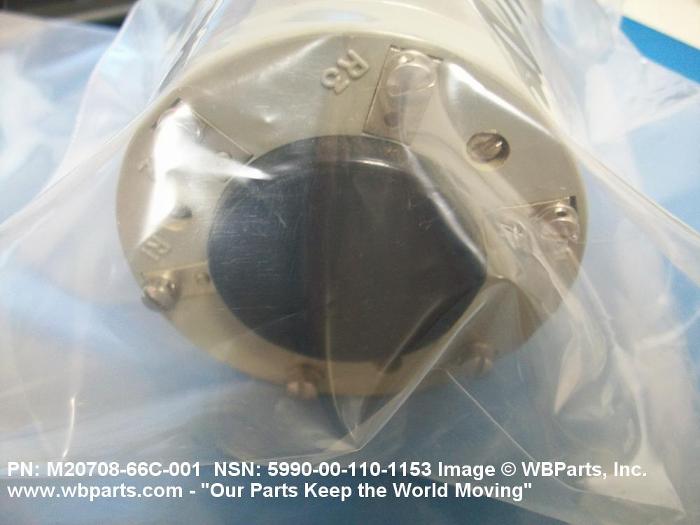

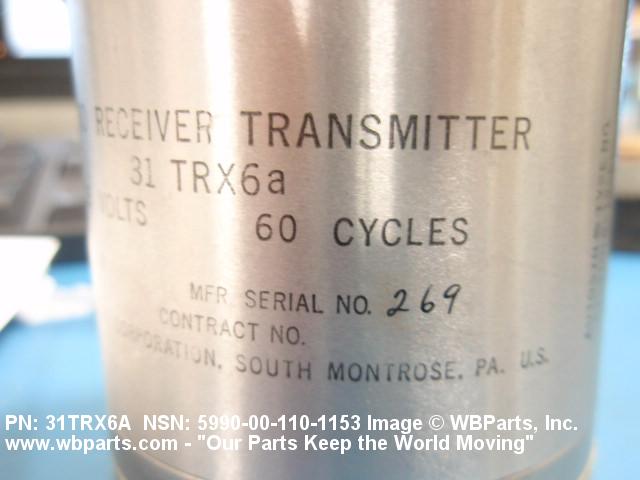

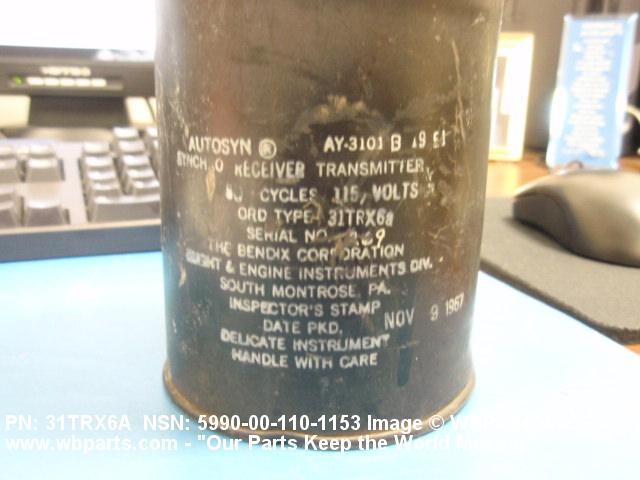

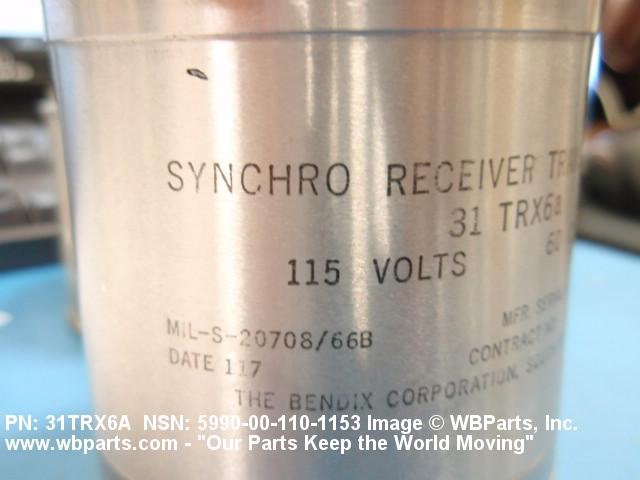

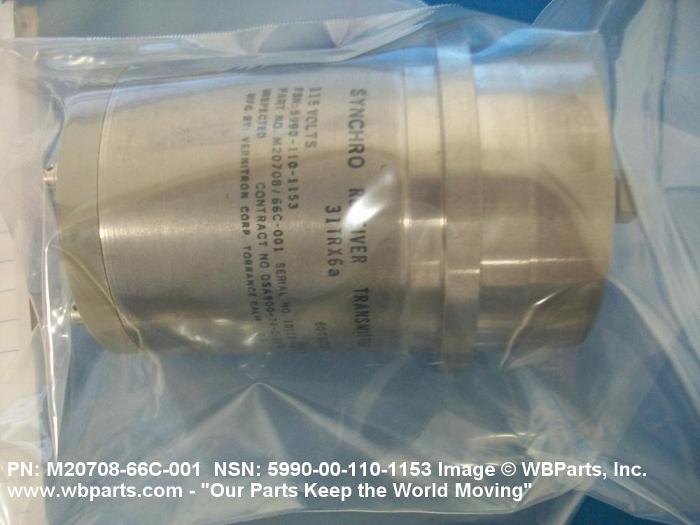

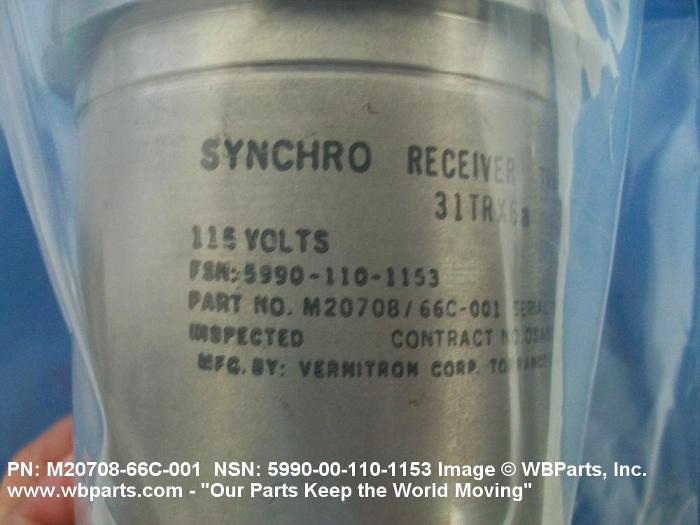

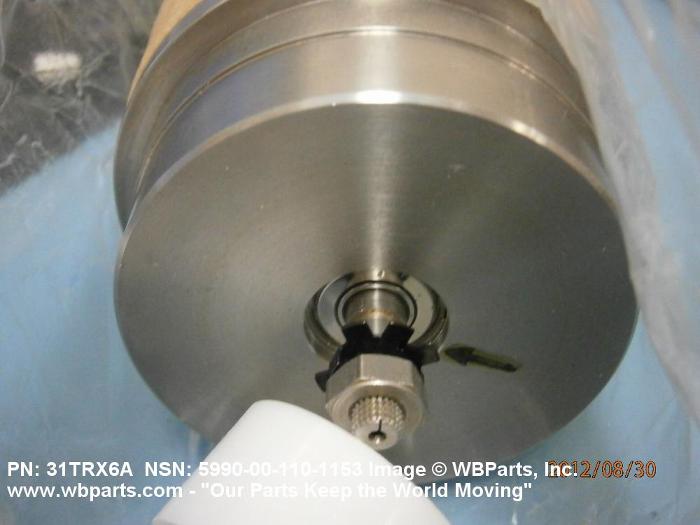

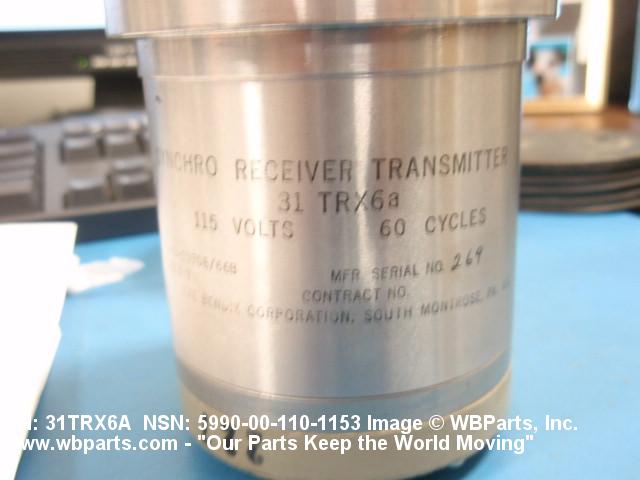

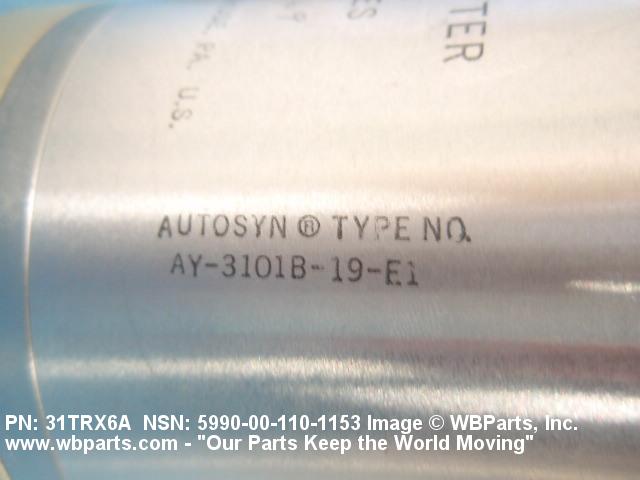

5990-00-110-1153 A synchro having a dual purpose. It may be used in applications requiring either a receiver or transmitter. For synchros having a single purpose, see SYNCHRO, RECEIVER and SYNCHRO, TRANSMITTER.
Part Alternates: M20708/66-001, M20708/66-01A, M2070866001, M207086601A, M2070866C001, M20708-66C-001, AS20708/66, AS20708/99 , AS2070866, AS2070899, MIL-S-20708/66, MILS2070866, 10-1732 PIECE 56, 101732PIECE56, 15A4911, 15A491-1, 31TRX6, 31TRX6A, 685021C300043, 685021C30004-3, 5990-00-110-1153, 00-110-1153, 5990001101153, 001101153
Electrical and Electronic Equipment Components | Synchros and Resolvers
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 09 AUG 1968 | 00-110-1153 | 27218 ( SYNCHRO, RECEIVER-TRANSMITTER ) |
