Product Details | DIFFERENTIAL TRANSMITTER SYNCHRO
5990-00-851-2793 A synchro, the rotor of which is mechanically positioned for modifying electrical angular information, received from a transmitter synchro and transmitting to receiver synchro or control transformer synchro electrical information corresponding to the sum or difference of the electrical input angle and its rotor position angle. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: MS20708/94-23CX6, MS207089423CX6, MILS20708, 23CX6, 4186800005, 4186800-005, 5990-00-851-2793, 00-851-2793, 5990008512793, 008512793
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-851-2793 | 02071 ( SYNCHRO, DIFFERENTIAL TRANSMITTER ) |

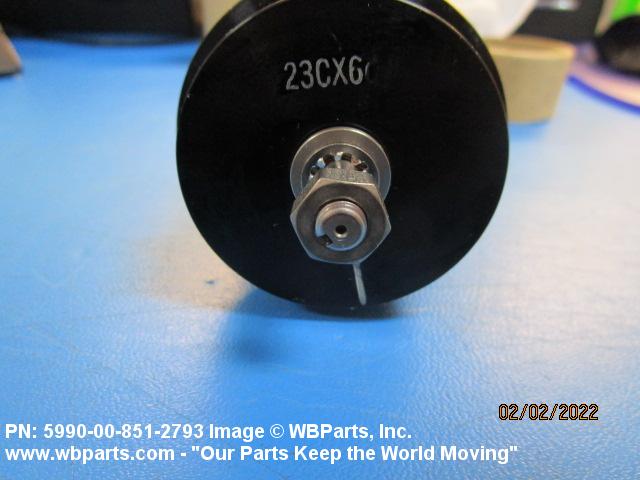

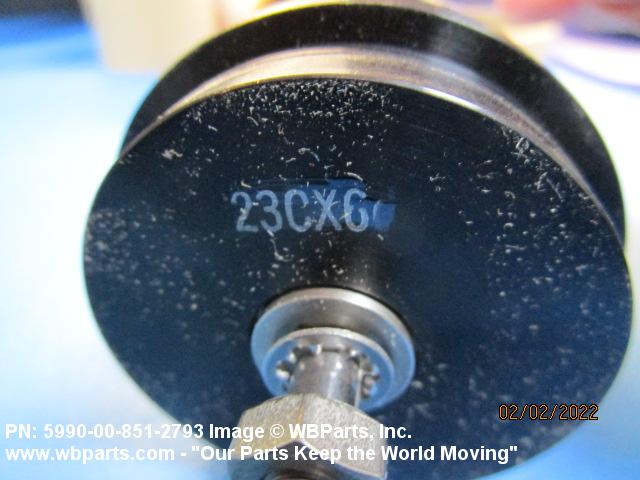

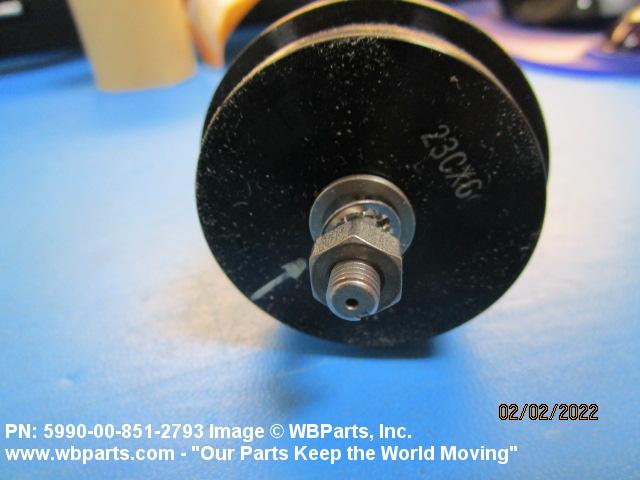

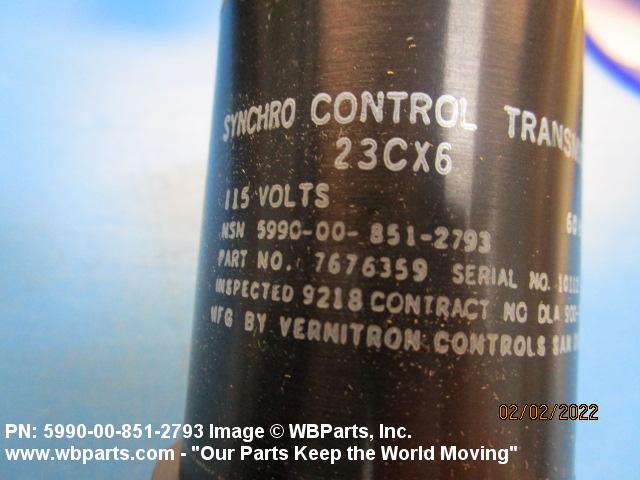

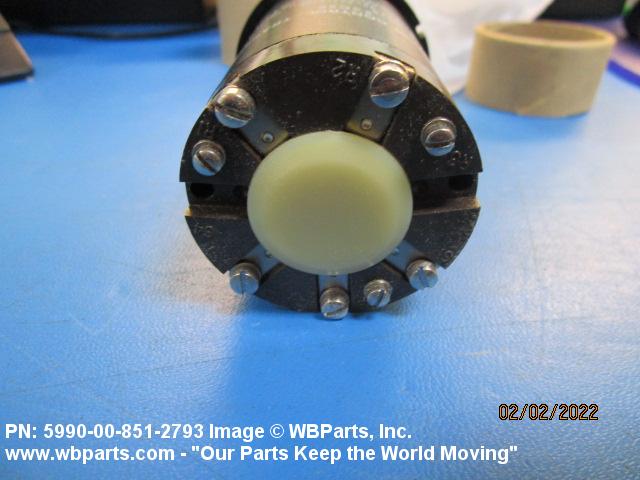

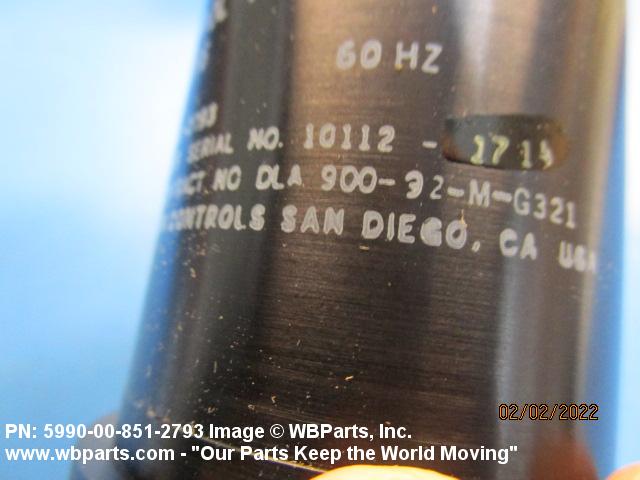

Drawings & Photos | NSN 5990-00-851-2793
Demand History | NSN 5990-00-851-2793
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-851-2793 | 2022-01-24 | 1 | United States |
| 5990-00-851-2793 | 2021-11-312 | 1 | United States |
| 23CX6 | 2021-07-182 | 2 | US |
Cross Reference | NSN 5990-00-851-2793
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-851-2793
Related Products | NSN 5990-00-851-2793
Technical Data | NSN 5990-00-851-2793
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 23 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 115.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 75.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 1.6 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 236.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 1590.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 217.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 796.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 485.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 167.00 NOMINAL |
| ZSO-90 RESISTANCE IN OHMS | 206.00 NOMINAL |
| PLUS J ZSO-90 REACTANCE IN OHMS | 271.00 NOMINAL |
| TRANSFORMATION RATIO | 0.783 ROTOR TO STATOR NOMINAL |
| MAXIMUM TEMP RISE | 45.0 DEG CELSIUS |
| MAXIMUM FUNDAMENTAL NULL VOLTAGE IN MILLIVOLTS PER VOLT | 75.00 OUTPUT |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 100.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -8.0 TO 8.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 0.50 INCH-OUNCES MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 0.20 INCH-OUNCES MAXIMUM |
| BODY STYLE | A4 STANDARD ROUND D |

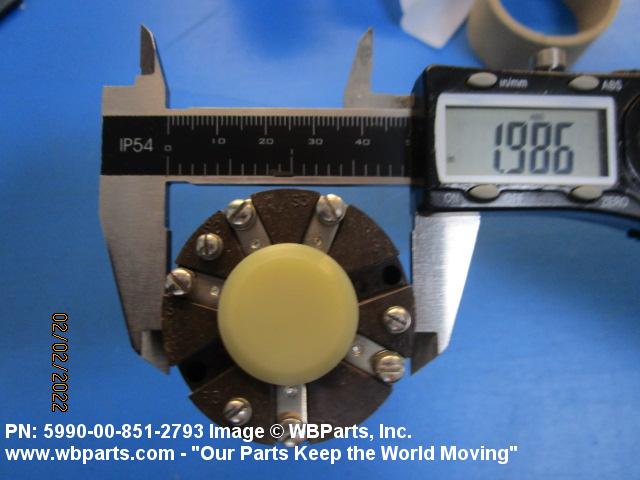

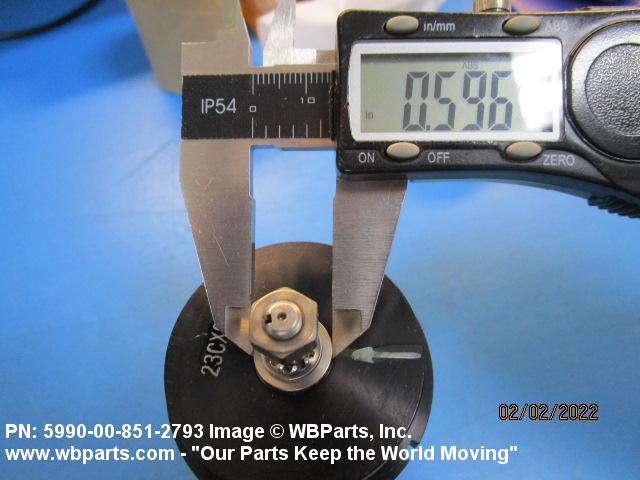

| SHOULDER DIAMETER | 1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM |
| PILOT DIAMETER | 0.5900 INCHES MINIMUM AND 0.6000 INCHES MAXIMUM |
| SECOND SHOULDER DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
| SECOND SHOULDER LENGTH | 0.1680 INCHES MINIMUM AND 0.1700 INCHES MAXIMUM |

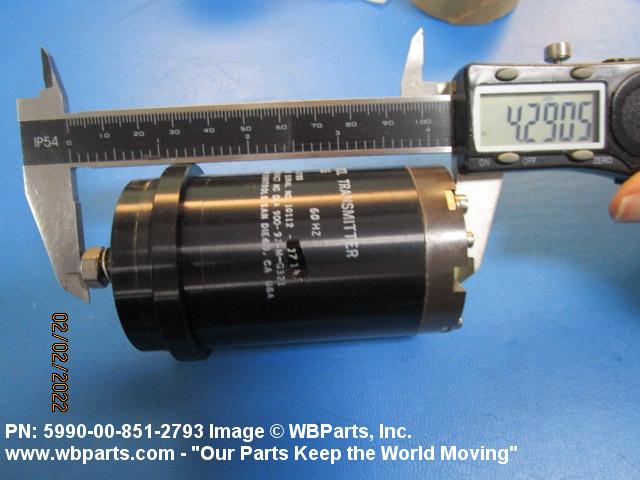

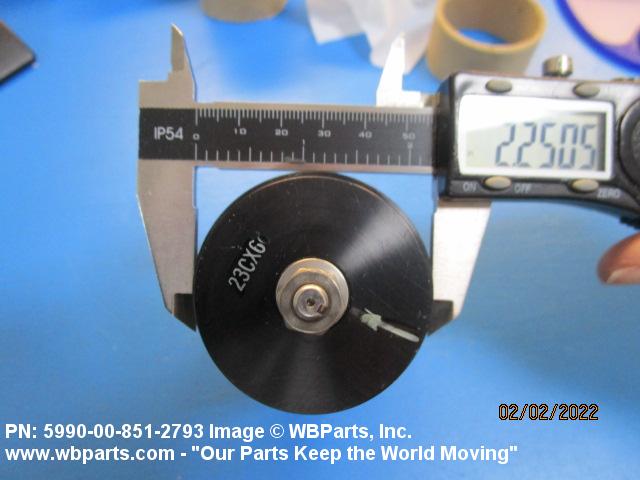

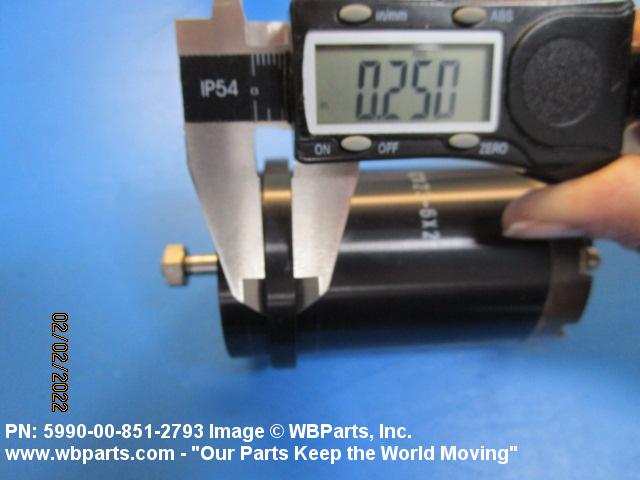

| OVERALL LENGTH | 4.2940 INCHES MAXIMUM |
| FLANGE DIAMETER | 2.2490 INCHES MINIMUM AND 2.2500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.2480 INCHES MINIMUM AND 0.2500 INCHES MAXIMUM |
| BODY DIAMETER | 1.9850 INCHES MINIMUM AND 1.9900 INCHES MAXIMUM |
| PILOT LENGTH | 0.0360 INCHES MINIMUM AND 0.0460 INCHES MAXIMUM |
| SHOULDER LENGTH | 0.2500 INCHES NOMINAL |
| AFT OF FIRST FLANGE DIAMETER | 1.9985 INCHES MINIMUM AND 1.9995 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.4450 INCHES MAXIMUM |
| ALIGNMENT HOLE DEPTH | 0.1250 INCHES NOMINAL |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 1.6420 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 3 |
| SHAFT TYPE | ROUND, THREADED SINGLE SHAFT |
| SHAFT DIAMETER | 0.2402 INCHES MINIMUM AND 0.2405 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.6930 INCHES MINIMUM AND 0.7190 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.3100 INCHES MINIMUM AND 0.3300 INCHES MAXIMUM SINGLE SHAFT |
