NSN 5990-00-826-0991 VRW154C1, VRW15-4C1, 0D10379
Product Details | ELECTRICAL RESOLVER
5990-00-826-0991 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: VRW154C1, VRW15-4C1, 0D10379, 315MS131P002, 5990-00-826-0991, 00-826-0991, 5990008260991, 008260991
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-826-0991 | 22966 ( RESOLVER, ELECTRICAL ) |
Drawings & Photos | NSN 5990-00-826-0991
Cross Reference | NSN 5990-00-826-0991
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0D10379 | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
| 315MS131P002 | 04164 | RAYTHEON ELECTRONIC SYSTEMS, INC |
| 315MS131P002 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| 315MS131P002 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| VRW15-4C1 | 10112 | GENERAL DYNAMICS GLOBAL IMAGING TECHNOLOGIES, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-826-0991
Related Products | NSN 5990-00-826-0991
Technical Data | NSN 5990-00-826-0991
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 15 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 30.0 NOMINAL |
| STATOR INPUT CURRENT RATING | 45.0 MILLIAMPERES MAXIMUM |
| STATOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 200.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 295.00 NOMINAL |
| TRANSFORMATION RATIO | 0.980 ROTOR TO STATOR NOMINAL |
| TRANSFORMATION RATIO EQUALITY IN PERCENT | 0.1 NOMINAL |
| COMPENSATION METHOD | RESISTOR COMPENSATED |
| COMPENSATOR DC RESISTANCE IN OHMS | 295.00 NOMINAL |
| COMPENSATOR TRANSFORMATION RATIO IN PERCENT | 0.985 ROTOR TO COMPENSATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 6.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 150.00 |
| INTERAXIS ERROR ANGULAR RANGE IN MINUTES | -5.0 TO 5.0 |
| OUTPUT VOLTAGE FUNCTIONAL ERROR RANGE IN PERCENT | -0.1 TO 0.1 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -5.0 TO 5.0 |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 2.00 INCH-OUNCES NOMINAL |
| BODY STYLE | A2 STANDARD ROUND B |
| SHOULDER DIAMETER | 1.3120 INCHES MAXIMUM |
| PILOT DIAMETER | 0.8750 INCHES MAXIMUM |
| OVERALL LENGTH | 1.4370 INCHES MAXIMUM |
| FLANGE DIAMETER | 1.4370 INCHES NOMINAL |
| FLANGE THICKNESS | 0.0830 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.0780 INCHES NOMINAL |
| PILOT LENGTH | 0.0400 INCHES NOMINAL |
| SHOULDER LENGTH | 0.1320 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.0630 INCHES MAXIMUM |
| ALIGNMENT HOLE DEPTH | 0.1250 INCHES MINIMUM |
| ALIGNMENT HOLE BOLT CIRCLE DIAMETER | 1.1000 INCHES NOMINAL |
| ALIGNMENT HOLE QUANTITY | 4 |
| SHAFT TYPE | ROUND SINGLE SHAFT |
| SHAFT DIAMETER | 0.1873 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.5310 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 12 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | ALUMINUM ALLOY OR STEEL, STAINLESS |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0005 INCHES |
| III SHAFT MAXIMUM RUNOUT | 0.0005 INCHES |

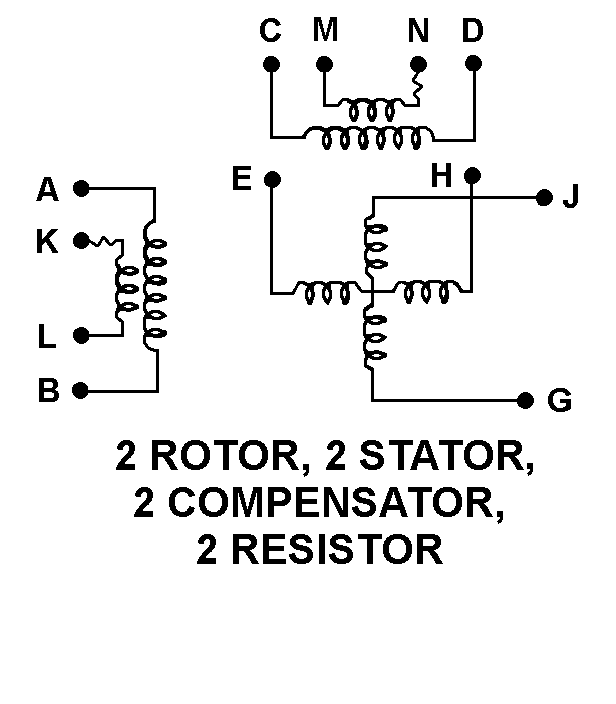

| III SCHEMATIC DIAGRAM DESIGNATOR | D13 TWO ROTOR, TWO STATOR, TWO COMPENSATOR, TWO RESISTOR |
| III TERMINAL DESIGNATOR AND SCHEMATIC POSITION | CONNECTION R1 POSITION J AND CONNECTION R2 POSITION G AND CONNECTION R3 POSITION E AND CONNECTION R4 POSITION J AND CONNECTION S1 POSITION B AND CONNECTION S2 POSITION C AND CONNECTION S3 POSITION A AND CONNECTION S4 POSITION D AND |
