Product Details | DIFFERENTIAL TRANSMITTER SYNCHRO

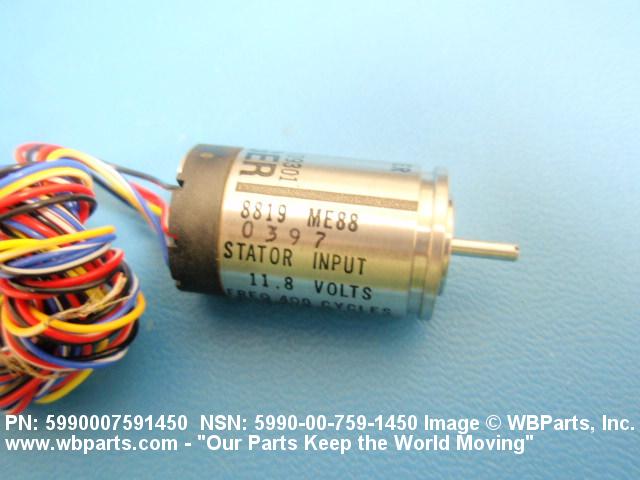

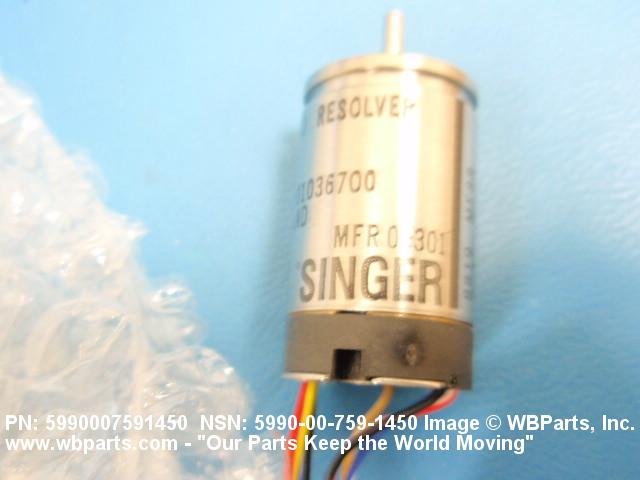

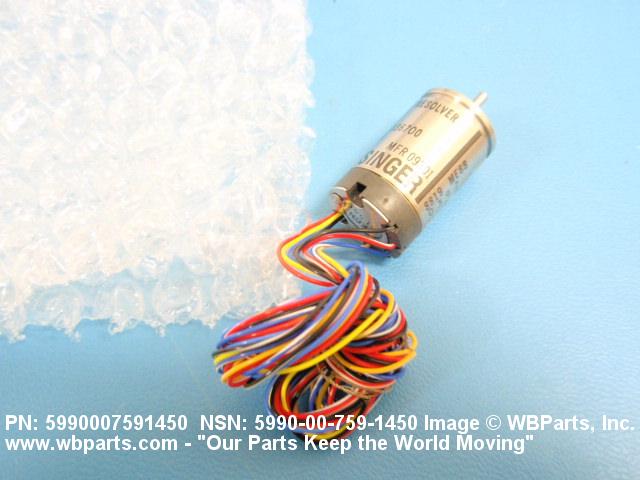

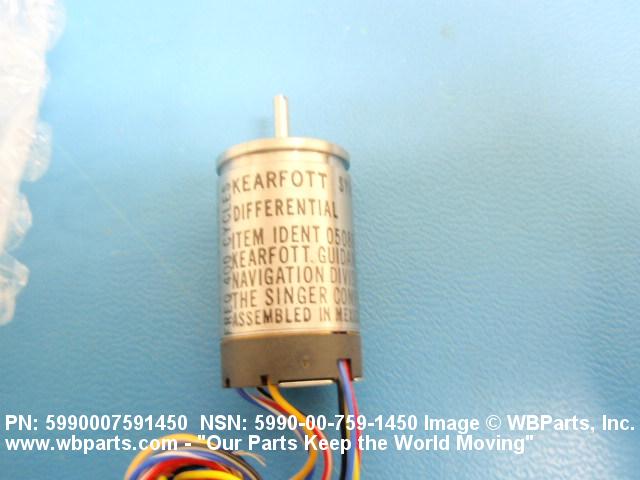

5990-00-759-1450 A synchro, the rotor of which is mechanically positioned for modifying electrical angular information, received from a transmitter synchro and transmitting to receiver synchro or control transformer synchro electrical information corresponding to the sum or difference of the electrical input angle and its rotor position angle. Does not include variable resistors, goniometers, variable transformers, or items with dials.

Part Alternates: CM01036700, 128C967H01, 5990-00-759-1450, 00-759-1450, 5990007591450, 007591450

Electrical and Electronic Equipment Components | Synchros and Resolvers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	23 JUL 1971	00-759-1450	02071 ( SYNCHRO, DIFFERENTIAL TRANSMITTER )

Drawings & Photos | NSN 5990-00-759-1450

Part Number	Request Date	QTY	Origin
5990-00-759-1450	2024-07-192	1	United States
5990-00-759-1450	2024-06-164	1	US
5990-00-759-1450	2024-06-157	1	United States
5990-00-759-1450	2024-05-127	1	United States
CM01036700	2021-10-293	1	United States
128C967H01	2020-03-69	2	US
5990-00-759-1450	2020-01-29	2	US
CM01036700	2019-05-122	19	US
CM01036700	2019-04-91	30	DIBBS
CM01036700	2019-03-80	30	DIBBS
5990-00-759-1450	2019-02-58	3	United States
5990-00-759-1450	2018-08-218	19	DIBBS
5990-00-759-1450	2018-07-207	19	DIBBS
5990-00-759-1450	2017-06-166	15	DIBBS
5990-00-759-1450	2017-05-130	15	DIBBS
5990-00-759-1450	2013-10-283	3	US
5990-00-759-1450	2013-04-93	10	DIBBS
5990-00-759-1450	2013-02-53	12	us
5990-00-759-1450	2013-02-40	12	DIBBS
5990-00-759-1450	2011-11-311	22	United States
5990-00-759-1450	2011-11-307	22	DIBBS
5990-00-759-1450	2011-09-273	14	DIBBS
5990-00-759-1450	2011-06-155	15	DIBBS
5990-00-759-1450	2010-02-36	17	DIBBS
5990-00-759-1450	2010-01-07	5	DIBBS
5990-00-759-1450	2009-12-338	5	DIBBS
5990-00-759-1450	2009-10-302	9	DIBBS
5990-00-759-1450	2009-10-292	8	DIBBS
5990-00-759-1450	2009-06-152	6	DIBBS
5990-00-759-1450	2009-04-110	9	DIBBS
5990-00-759-1450	2009-02-43	4	DIBBS
5990-00-759-1450	2008-12-365	1	Chile
5990-00-759-1450	2008-12-340	12	DIBBS
5990-00-759-1450	2008-03-84	23	DIBBS

Cross Reference | NSN 5990-00-759-1450

Part Number	Cage Code	Manufacturer
128C967H01	97942	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS
CM01036700	05088	KEARFOTT CORPORATION DIV A SUBSIDIARY OF ASTRONAUTICS
CM01036700	88818	KEARFOTT CORPORATION DBA KEARFOTT
