NSN 5990-00-644-0107 0S3883, 00-644-0107, 006440107
Product Details | DIFFERENTIAL TRANSMITTER SYNCHRO
5990-00-644-0107 A synchro, the rotor of which is mechanically positioned for modifying electrical angular information, received from a transmitter synchro and transmitting to receiver synchro or control transformer synchro electrical information corresponding to the sum or difference of the electrical input angle and its rotor position angle. Does not include variable resistors, goniometers, variable transformers, or items with dials.
Part Alternates: 0S3883, 5990-00-644-0107, 00-644-0107, 5990006440107, 006440107
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-644-0107 | 02071 ( SYNCHRO, DIFFERENTIAL TRANSMITTER ) |
Drawings & Photos | NSN 5990-00-644-0107
Cross Reference | NSN 5990-00-644-0107
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0S3883 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-644-0107
Related Products | NSN 5990-00-644-0107
Technical Data | NSN 5990-00-644-0107
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 31 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 91.8 MAXIMUM |
| STATOR INPUT CURRENT RATING | 605.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 13.2 WATTS NOMINAL |
| FREQUENCY IN HERTZ | 60.0 NOMINAL |
| BODY STYLE | A7 STANDARD ROUND, ROTATABLE HOUSING |
| SHOULDER DIAMETER | 2.7000 INCHES NOMINAL |
| OVERALL LENGTH | 4.3700 INCHES NOMINAL |
| FLANGE DIAMETER | 3.0980 INCHES MINIMUM AND 3.1000 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.2470 INCHES MINIMUM AND 0.2530 INCHES MAXIMUM |
| BODY DIAMETER | 2.7000 INCHES NOMINAL |
| SHOULDER LENGTH | 1.0000 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 3.3800 INCHES NOMINAL |
| SHAFT TYPE | SPLINE W/THREADS SINGLE SHAFT |
| SHAFT DIAMETER | 0.2405 INCHES NOMINAL SINGLE SHAFT |
| SHAFT LENGTH | 0.6810 INCHES MINIMUM AND 0.7060 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT THREAD LENGTH | 0.2670 INCHES NOMINAL SINGLE SHAFT |
| SPLINE TOOTH QUANTITY | 22 SINGLE SHAFT |
| SPLINE TOOTH DIAMETRAL PITCH | 96 SINGLE SHAFT |
| SHAFT THREAD SERIES DESIGNATOR | UNF SINGLE SHAFT |
| SHAFT NOMINAL THREAD SIZE | 0.250 INCHES SINGLE SHAFT |
| SHAFT THREAD DIRECTION | RIGHT-HAND SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 5 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | ALUMINUM |
| III SHAFT END PLAY | 0.0040 INCHES NOMINAL |
| III SHAFT MAXIMUM RUNOUT | 0.0005 INCHES |

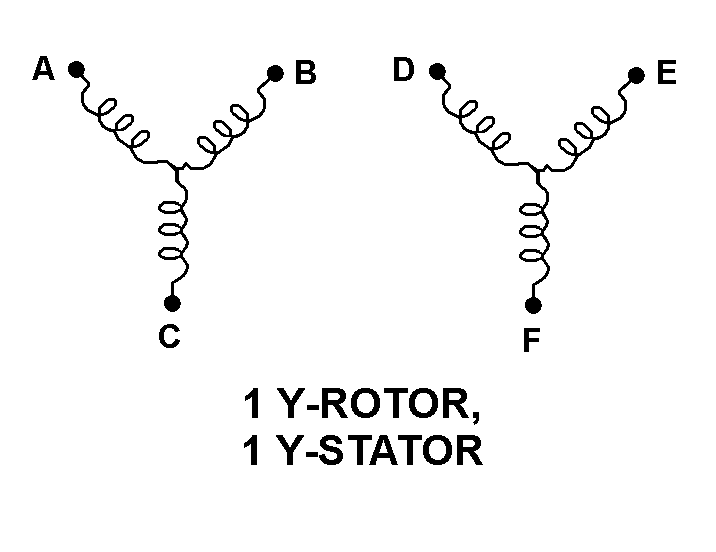

| III SCHEMATIC DIAGRAM DESIGNATOR | E3 ONE Y-ROTOR, ONE Y-STATOR |
