NSN 5990-00-644-0075 M01033, M0-1033, M01033K
Product Details | ELECTRICAL RESOLVER
5990-00-644-0075 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: M01033, M0-1033, M01033K, M0-1033K, NR59B, NR-59B, 14250410, 1425-0410, 23421301, 23-4213-01, 23SS1582B, 5990-00-644-0075, 00-644-0075, 5990006440075, 006440075
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-644-0075 | 22966 ( RESOLVER, ELECTRICAL ) |
Drawings & Photos | NSN 5990-00-644-0075
Cross Reference | NSN 5990-00-644-0075
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1425-0410 | 89944 | KOLLSMAN, INC. |
| 23-4213-01 | 99932 | MOOG INC. DBA MOOG COMPONENTS GROUP |
| 23SS1582B | 73693 | SCHULZE MFG. INC. |
| M0-1033 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| M0-1033K | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| NR-59B | 83330 | DIALIGHT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-644-0075
Related Products | NSN 5990-00-644-0075
Technical Data | NSN 5990-00-644-0075
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 24 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| STATOR INPUT CURRENT RATING | NOT RATED |
| STATOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | NOT RATED |
| ROTOR INPUT CURRENT RATING | NOT RATED |
| ROTOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 100.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 200.00 NOMINAL AND 420.00 NOMINAL |
| TRANSFORMATION RATIO | 0.290 STATOR TO ROTOR NOMINAL |

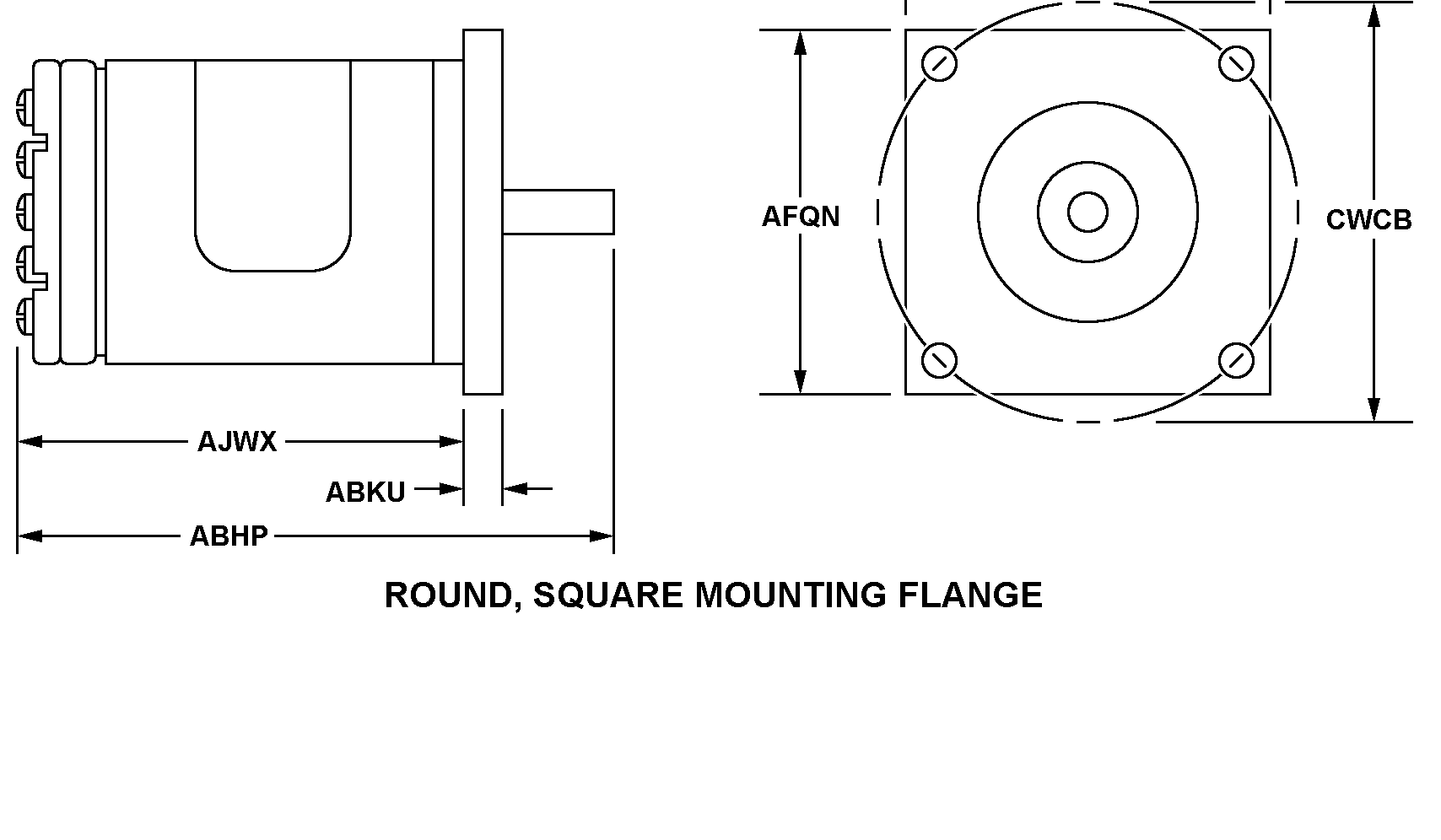

| BODY STYLE | A9 ROUND, SQUARE MOUNTING FLANGE |
| OVERALL LENGTH | 3.5630 INCHES NOMINAL |
| FLANGE THICKNESS | 0.3130 INCHES NOMINAL |
| FLANGE LENGTH | 2.3750 INCHES NOMINAL |
| FLANGE WIDTH | 2.3750 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.6410 INCHES NOMINAL |
| SECURING HOLE BOLT CIRCLE DIAMETER | 1.9370 INCHES NOMINAL |
| SECURING HOLE QUANTITY | 4 |
| SHAFT TYPE | ROUND SINGLE SHAFT |
| SHAFT DIAMETER | 0.1240 INCHES MINIMUM AND 0.1245 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3750 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 7 SCREW |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0010 INCHES |
| III SHAFT END PLAY DETERMINING WEIGHT | 16.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0020 INCHES |
Restrictions/Controls & Freight Information | NSN 5990-00-644-0075
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-644-0075
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
