Product Details | ELECTRICAL RESOLVER
5990-00-503-4156 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: 2607571, 948810, 5990-00-503-4156, 00-503-4156, 5990005034156, 005034156
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-503-4156 | 22966 ( RESOLVER, ELECTRICAL ) |
Drawings & Photos | NSN 5990-00-503-4156
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-503-4156
Related Products | NSN 5990-00-503-4156
Technical Data | NSN 5990-00-503-4156
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 15 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | NOT RATED |
| STATOR INPUT CURRENT RATING | NOT RATED |
| STATOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 0.5 MINIMUM AND 16.0 MAXIMUM |
| ROTOR INPUT CURRENT RATING | NOT RATED |
| ROTOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| TRANSFORMATION RATIO | 0.995 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 3.500 INPUT TO OUTPUT NOMINAL |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.8720 INCHES MINIMUM AND 0.8750 INCHES MAXIMUM |
| OVERALL LENGTH | 2.9060 INCHES NOMINAL |
| FLANGE DIAMETER | 1.4330 INCHES MINIMUM AND 1.4370 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0900 INCHES MINIMUM AND 0.0960 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 1.3115 INCHES MINIMUM AND 1.3120 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0750 INCHES MINIMUM AND 0.0810 INCHES MAXIMUM |
| PILOT LENGTH | 0.0370 INCHES MINIMUM AND 0.0430 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 2.3660 INCHES MAXIMUM |
| SHAFT TYPE | ROUND SINGLE SHAFT |
| SHAFT DIAMETER | 0.1870 INCHES MINIMUM AND 0.1872 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.5300 INCHES MINIMUM AND 0.5500 INCHES MAXIMUM SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 14 PIN |
| TERMINAL LOCATION | REAR |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0004 INCHES |
| III SHAFT RADIAL PLAY TEST POINT | 0.353 INCHES NOMINAL |
| III SHAFT RADIAL PLAY DETERMINING WEIGHT | 16.0 OUNCES |

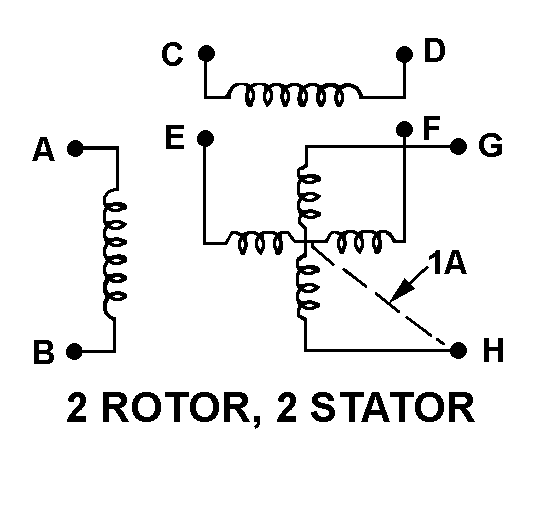

| III SCHEMATIC DIAGRAM DESIGNATOR | D1 TWO ROTOR, TWO STATOR |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | 948810 |
