Product Details | ELECTRICAL RESOLVER
5990-00-124-2556 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: AY084KJ111A1, 080V3408A/L658, 080V3408AL658, 55174, 9050503, 905050-3, 5990-00-124-2556, 00-124-2556, 5990001242556, 001242556
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 NOV 1968 | 00-124-2556 | 22966 ( RESOLVER, ELECTRICAL ) |
Drawings & Photos | NSN 5990-00-124-2556
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-124-2556
Related Products | NSN 5990-00-124-2556
Technical Data | NSN 5990-00-124-2556
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 11.8 NOMINAL |
| STATOR INPUT CURRENT RATING | NOT RATED |
| STATOR INPUT ELECTRICAL POWER RATING | NOT RATED |
| ROTOR INPUT VOLTAGE RATING IN VOLTS | 26.0 NOMINAL |
| ROTOR INPUT CURRENT RATING | 66.0 MILLIAMPERES NOMINAL |
| ROTOR INPUT ELECTRICAL POWER RATING | 416.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 158.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 490.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 44.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 150.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 263.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 75.50 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 133.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 36.30 NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 15.000 INPUT TO OUTPUT NOMINAL |
| MAXIMUM TOTAL NULL VOLTAGE OUTPUT IN MILLIVOLTS PER VOLT | 30.00 |
| ELECTRICAL ERROR ANGULAR RANGE IN MINUTES | -7.0 TO 7.0 |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 16.0 CENTIMETER-GRAMS MAXIMUM |
| ACTUATOR FRICTION TORQUE AT PLUS 25 DEG CELSIUS | 4.0 CENTIMETER-GRAMS MAXIMUM |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.5000 INCHES MAXIMUM |
| OVERALL LENGTH | 1.4350 INCHES MAXIMUM |
| FLANGE DIAMETER | 0.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0620 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.6910 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0620 INCHES NOMINAL |
| PILOT LENGTH | 0.0430 INCHES NOMINAL |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.0150 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |
| SHAFT DIAMETER | 0.0900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT LENGTH | 0.3530 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0250 INCHES NOMINAL SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III SHAFT MAXIMUM RADIAL PLAY | 0.0005 INCHES |
| III SHAFT RADIAL PLAY TEST POINT | 0.125 INCHES MAXIMUM |
| III SHAFT RADIAL PLAY DETERMINING WEIGHT | 4.0 OUNCES |
| III SHAFT END PLAY | 0.0003 INCHES MINIMUM AND 0.0008 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 8.0 OUNCES |
| III SHAFT MAXIMUM RUNOUT | 0.0010 INCHES |

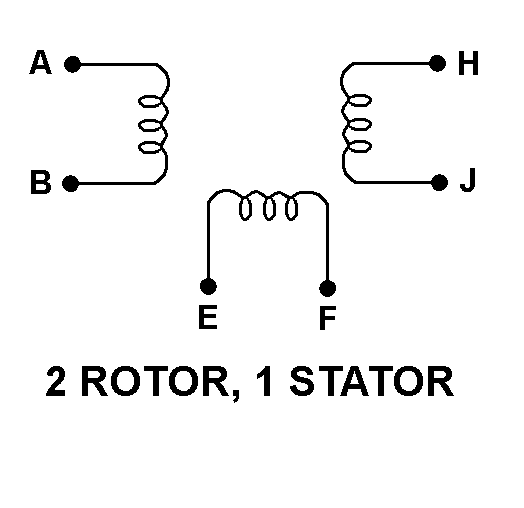

| III SCHEMATIC DIAGRAM DESIGNATOR | D24 TWO ROTOR, ONE STATOR |
| III TERMINAL DESIGNATOR AND SCHEMATIC POSITION | CONNECTION R1 POSITION A AND CONNECTION R2 POSITION B AND |
