NSN 5990-00-113-6081 CM01037103, CM41033010, U217376
Product Details | ELECTRICAL RESOLVER
5990-00-113-6081 An item consisting of a rotor and a stator inductively coupled. It usually has two rotor windings displaced from each other by 90 degrees and two stator windings similarly displaced. The output voltage(s) is a trigonometric function of the input voltage(s) and the angular displacement of the rotor with respect to the stator. See also SYNCHRO (as modified) and GONIOMETER, ELECTRICAL. Excludes TRANSOLVER, ELECTRICAL and potentiometer sine/cosine electrical resolvers.
Part Alternates: CM01037103, CM41033010, U217376, U-217376, 08RC0111B, 08RC-0111-B, 5314986, 531498-6, 5990-00-113-6081, 00-113-6081, 5990001136081, 001136081
Electrical and Electronic Equipment Components | Synchros and Resolvers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 SEP 1968 | 00-113-6081 | 22966 ( RESOLVER, ELECTRICAL ) |

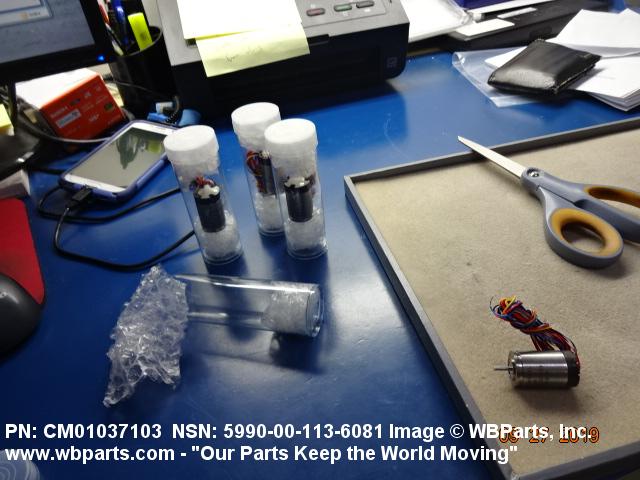

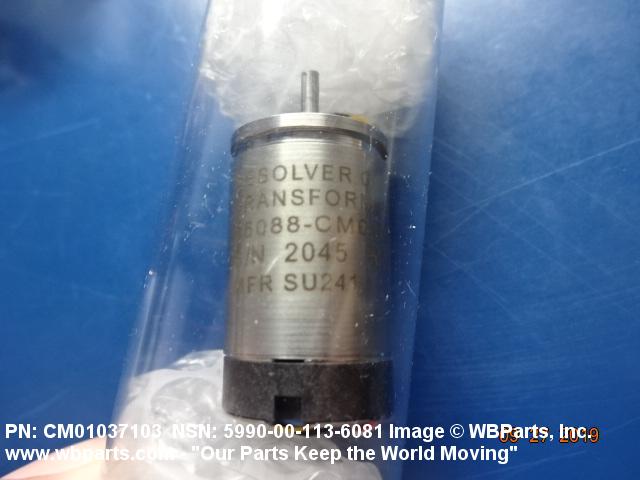

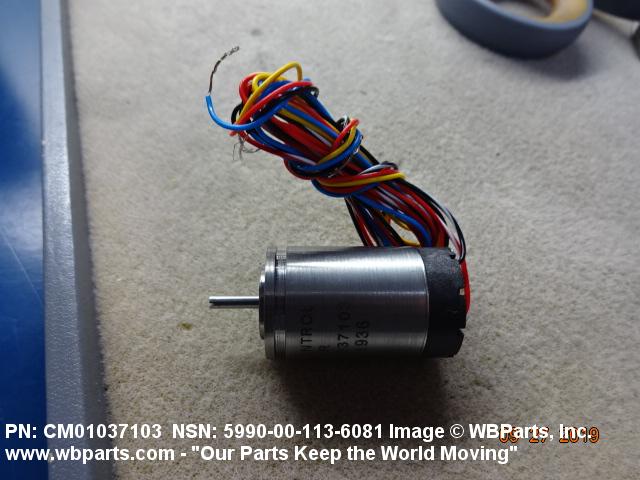

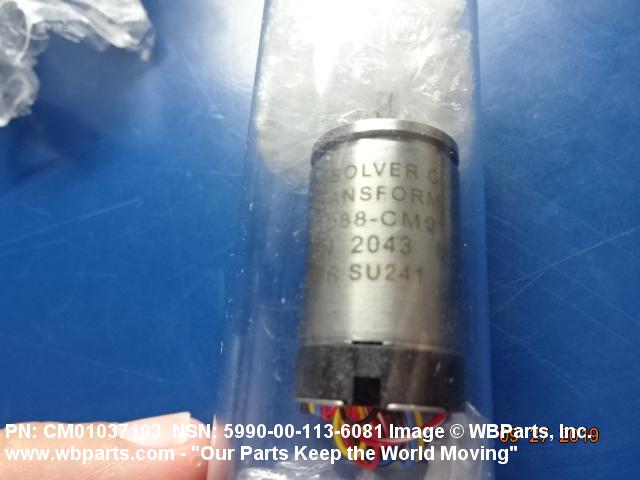

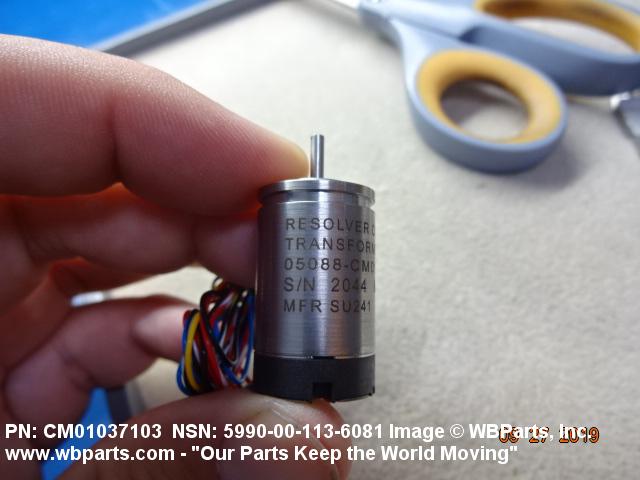

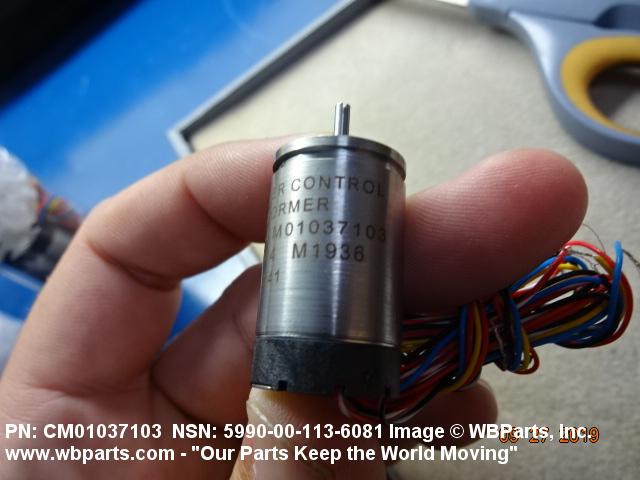

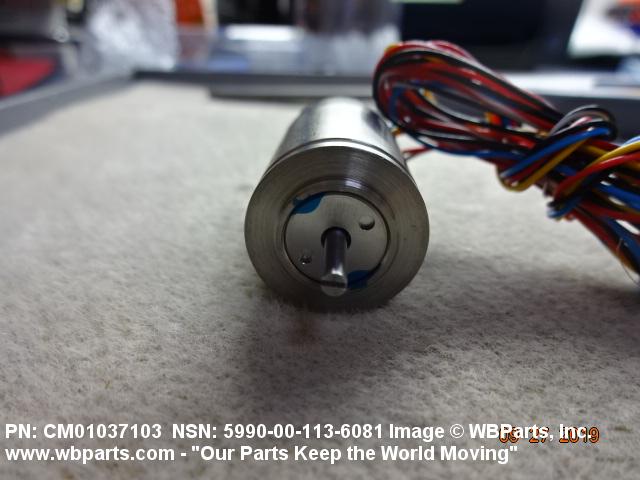

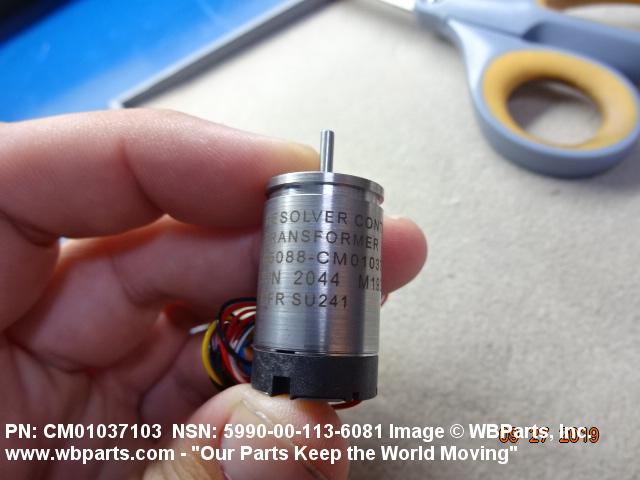

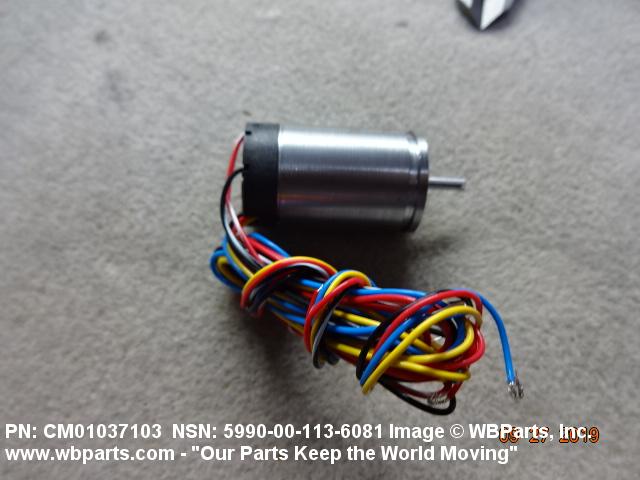

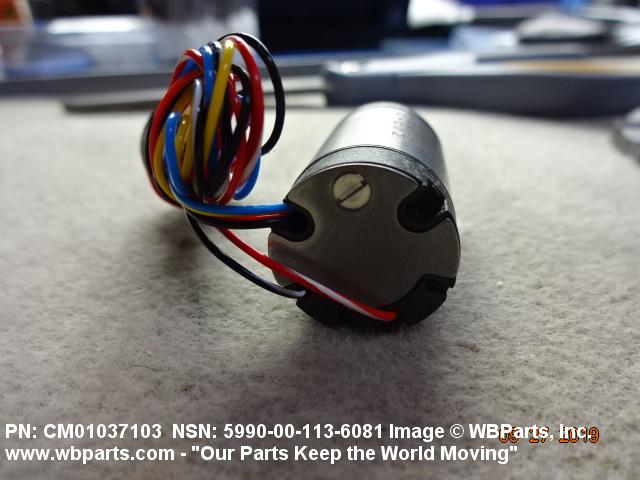

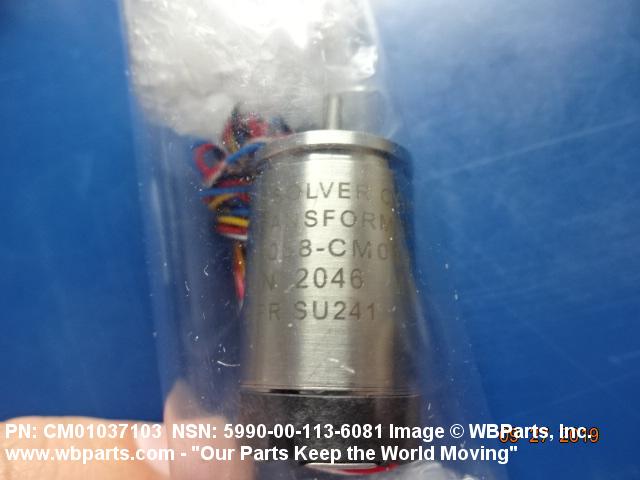

Drawings & Photos | NSN 5990-00-113-6081
Demand History | NSN 5990-00-113-6081
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5990-00-113-6081 | 2020-08-217 | 6 | US |
| 08RC-0111-B | 2020-08-217 | 10 | DIBBS |
| 531498-6 | 2020-08-217 | 10 | DIBBS |
| CM01037103 | 2020-08-217 | 10 | DIBBS |
| U-217376 | 2020-08-217 | 10 | DIBBS |
| 08RC-0111-B | 2020-07-203 | 10 | DIBBS |
| 531498-6 | 2020-07-203 | 10 | DIBBS |
| CM01037103 | 2020-07-203 | 10 | DIBBS |
| U-217376 | 2020-07-203 | 10 | DIBBS |
| 08RC-0111-B | 2020-07-188 | 6 | DIBBS |
| 531498-6 | 2020-07-188 | 6 | DIBBS |
| CM01037103 | 2020-07-188 | 6 | DIBBS |
| U-217376 | 2020-07-188 | 6 | DIBBS |
| 08RC-0111-B | 2020-06-173 | 6 | DIBBS |
| 531498-6 | 2020-06-173 | 6 | DIBBS |
| CM01037103 | 2020-06-173 | 6 | DIBBS |
| U-217376 | 2020-06-173 | 6 | DIBBS |
| 08RC-0111-B | 2020-04-111 | 53 | DIBBS |
| 531498-6 | 2020-04-111 | 53 | DIBBS |
| CM01037103 | 2020-04-111 | 53 | DIBBS |
| U-217376 | 2020-04-111 | 53 | DIBBS |
| 08RC-0111-B | 2020-04-100 | 53 | DIBBS |
| 531498-6 | 2020-04-100 | 53 | DIBBS |
| CM01037103 | 2020-04-100 | 53 | DIBBS |
| U-217376 | 2020-04-100 | 53 | DIBBS |
| 08RC-0111-B | 2019-01-22 | 10 | DIBBS |
| 531498-6 | 2019-01-22 | 10 | DIBBS |
| CM01037103 | 2019-01-22 | 10 | DIBBS |
| U-217376 | 2019-01-22 | 10 | DIBBS |
| 5990-00-113-6081 | 2018-11-333 | 3 | DIBBS |
| 5990-00-113-6081 | 2018-11-324 | 4 | United States |
| 5990-00-113-6081 | 2018-11-320 | 4 | US |
| 5990-00-113-6081 | 2018-11-319 | 1 | DIBBS |
| 5990-00-113-6081 | 2018-09-260 | 1 | DIBBS |
| 5990-00-113-6081 | 2018-08-226 | 1 | United States |
| 5990-00-113-6081 | 2018-06-179 | 1 | DIBBS |
| 08RC0111B | 2018-05-126 | 2 | United States |
| 5990-00-113-6081 | 2018-05-123 | 3 | DIBBS |
| 5990-00-113-6081 | 2017-04-108 | 2 | DIBBS |
| 5990-00-113-6081 | 2009-05-150 | 12 | DIBBS |
| 5990-00-113-6081 | 2009-02-55 | 9 | DIBBS |
Cross Reference | NSN 5990-00-113-6081
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 08RC-0111-B | 51761 | CDA INTERCORP LLC |
| 531498-6 | 96214 | RAYTHEON COMPANY DBA RAYTHEON |
| CM01037103 | 05088 | KEARFOTT CORPORATION DIV A SUBSIDIARY OF ASTRONAUTICS |
| CM01037103 | 09301 | KEARFOTT CORP SOMA FORWARDING DIV |
| CM01037103 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| CM41033010 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| U-217376 | 82686 | TRANSICOIL LLC DBA ADS/TRANSICOIL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5990-00-113-6081
Related Products | NSN 5990-00-113-6081
Technical Data | NSN 5990-00-113-6081
| Characteristic | Specifications |
|---|---|
| BODY SIZE | 8 |
| STATOR INPUT VOLTAGE RATING IN VOLTS | 11.8 NOMINAL |
| STATOR INPUT CURRENT RATING | 14.0 MILLIAMPERES NOMINAL |
| STATOR INPUT ELECTRICAL POWER RATING | 33.0 MILLIWATTS NOMINAL |
| FREQUENCY IN HERTZ | 400.0 NOMINAL |
| ZRO RESISTANCE IN OHMS | 887.00 NOMINAL |
| PLUS J ZRO REACTANCE IN OHMS | 3912.00 NOMINAL |
| ZSO RESISTANCE IN OHMS | 230.00 NOMINAL |
| PLUS J ZSO REACTANCE IN OHMS | 956.00 NOMINAL |
| ZRS RESISTANCE IN OHMS | 1224.00 NOMINAL |
| PLUS J ZRS REACTANCE IN OHMS | 428.00 NOMINAL |
| ROTOR DC RESISTANCE IN OHMS | 625.00 NOMINAL |
| STATOR DC RESISTANCE IN OHMS | 180.00 NOMINAL |
| TRANSFORMATION RATIO | 1.907 ROTOR TO STATOR NOMINAL |
| PHASE SHIFT ANGLE IN DEG | 10.800 INPUT TO OUTPUT NOMINAL |
| ACTUATOR FRICTION TORQUE AT MINUS 55 DEG CELSIUS | 4.0 CENTIMETER-GRAMS NOMINAL |
| BODY STYLE | A1 STANDARD ROUND A |
| PILOT DIAMETER | 0.4995 INCHES MINIMUM AND 0.5000 INCHES MAXIMUM |

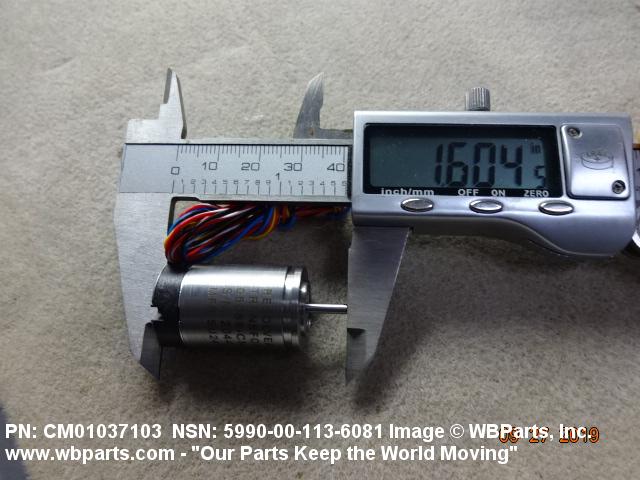

| OVERALL LENGTH | 1.6240 INCHES MAXIMUM |

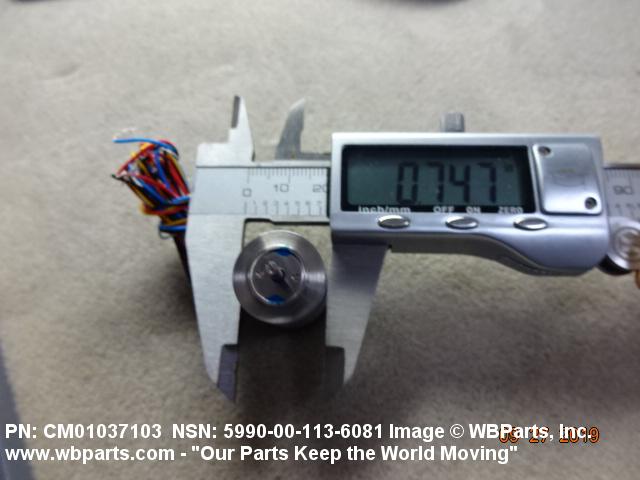

| FLANGE DIAMETER | 0.7470 INCHES MINIMUM AND 0.7500 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.0590 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 0.6880 INCHES MINIMUM AND 0.6910 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.0590 INCHES MINIMUM AND 0.0650 INCHES MAXIMUM |
| PILOT LENGTH | 0.0380 INCHES MINIMUM AND 0.0430 INCHES MAXIMUM |
| MOUNTING SURFACE TO TERMINAL END DISTANCE | 1.2400 INCHES MAXIMUM |
| SHAFT TYPE | ROUND, SLOTTED SINGLE SHAFT |

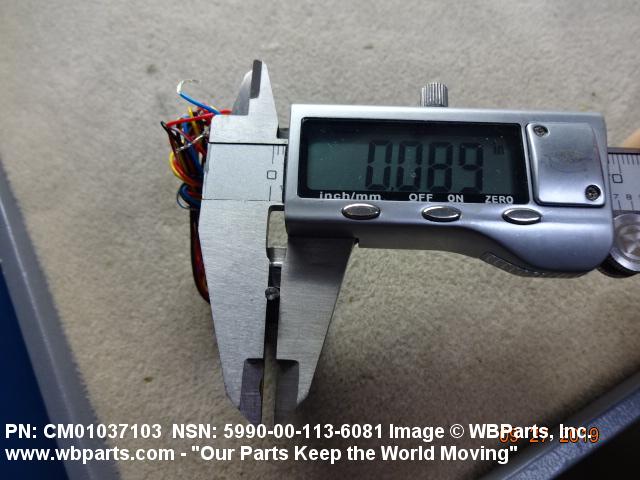

| SHAFT DIAMETER | 0.0895 INCHES MINIMUM AND 0.0900 INCHES MAXIMUM SINGLE SHAFT |

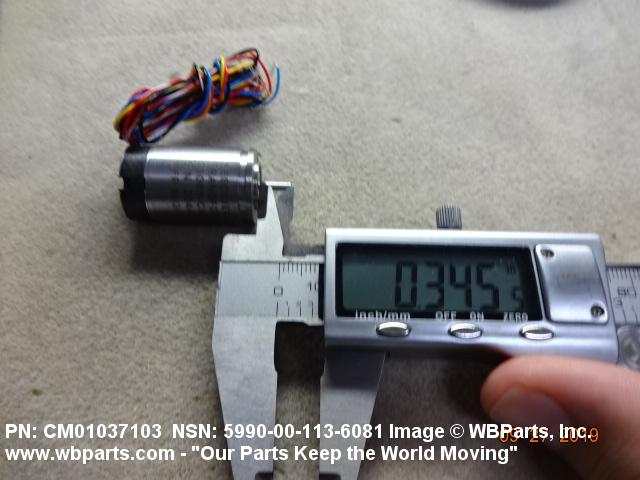

| SHAFT LENGTH | 0.3660 INCHES MINIMUM AND 0.3900 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT DEPTH | 0.0250 INCHES MINIMUM AND 0.0350 INCHES MAXIMUM SINGLE SHAFT |
| SHAFT SLOT WIDTH | 0.0200 INCHES MINIMUM AND 0.0300 INCHES MAXIMUM SINGLE SHAFT |
| TERMINAL TYPE AND QUANTITY | 6 WIRE LEAD |
| TERMINAL LOCATION | REAR |
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| III SHAFT END PLAY | 0.0005 INCHES MINIMUM AND 0.0015 INCHES MAXIMUM |
| III SHAFT END PLAY DETERMINING WEIGHT | 8.0 OUNCES |
| III FRAGILITY FACTOR | MODERATELY RUGGED |
Restrictions/Controls & Freight Information | NSN 5990-00-113-6081
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5990-00-113-6081
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
