NSN 5985-01-603-0137 ELT 10-773-3, ELT.10.773.3, ELT107733
Product Details | ANTENNA
5985-01-603-0137 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: ELT 10-773-3, ELT.10.773.3, ELT107733, 5985-01-603-0137, 01-603-0137, 5985016030137, 016030137
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 FEB 2012 | 01-603-0137 | 00749 ( ANTENNA ) |

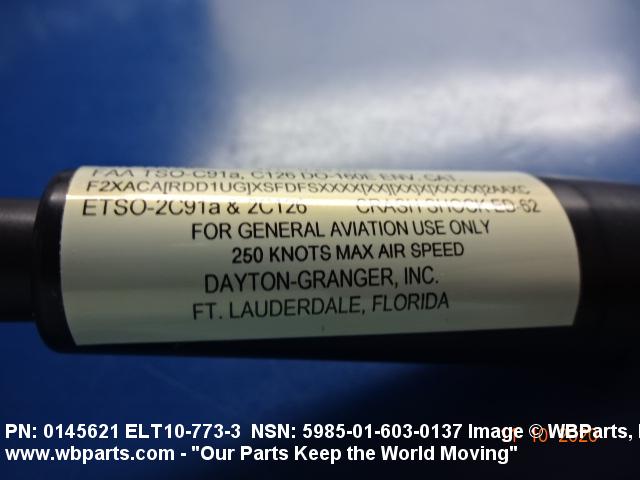

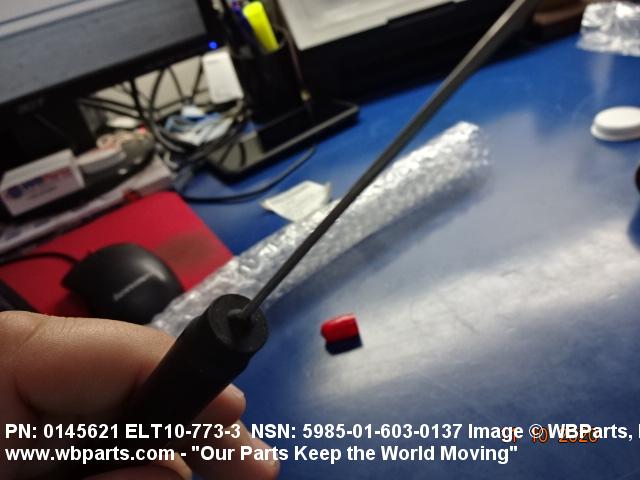

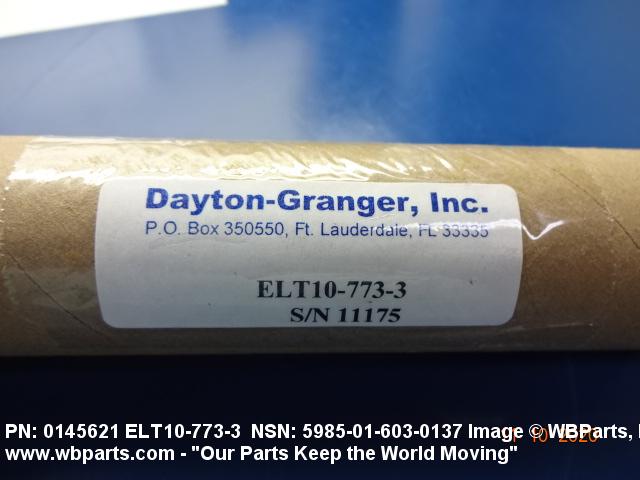

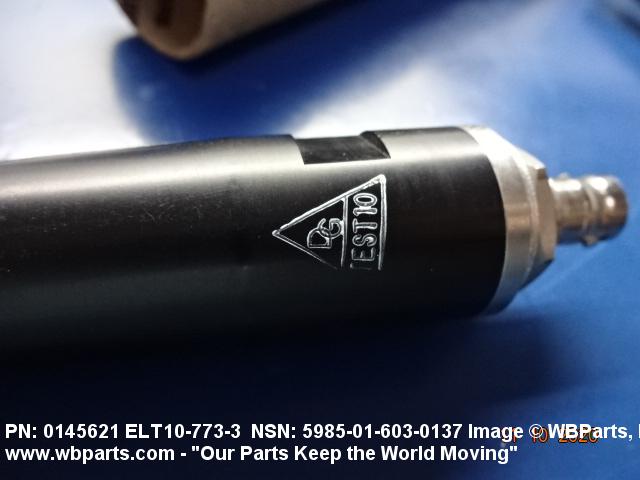

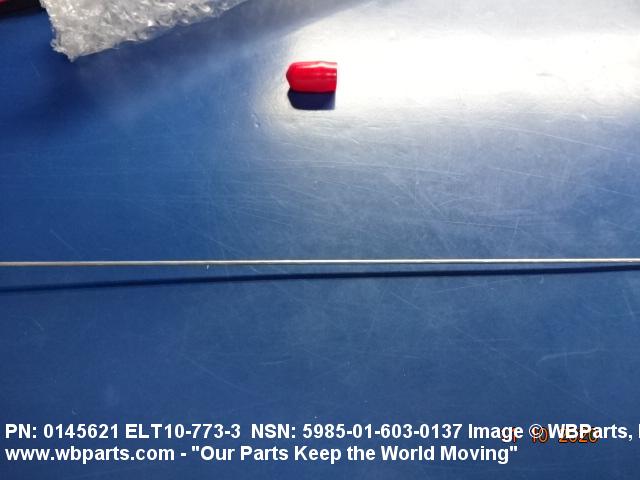

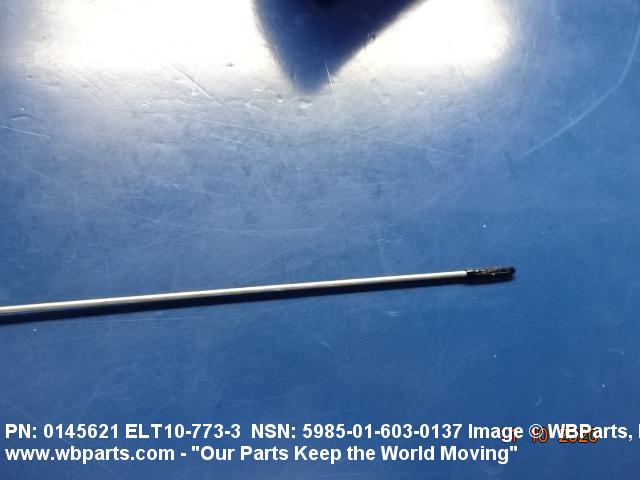

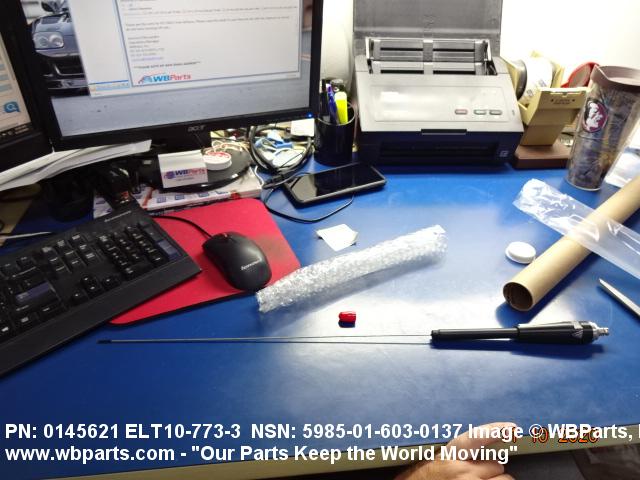

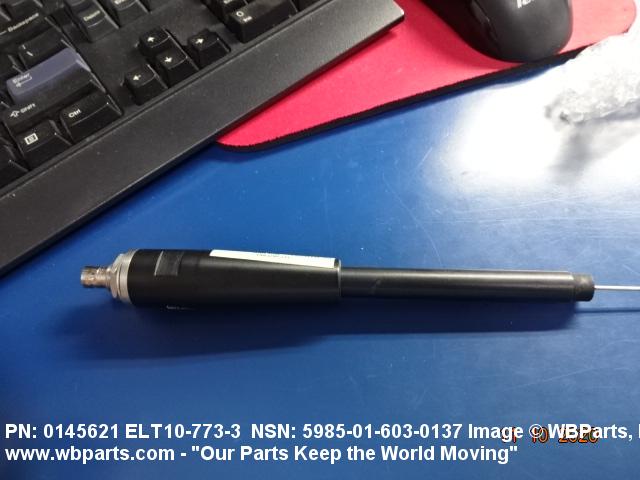

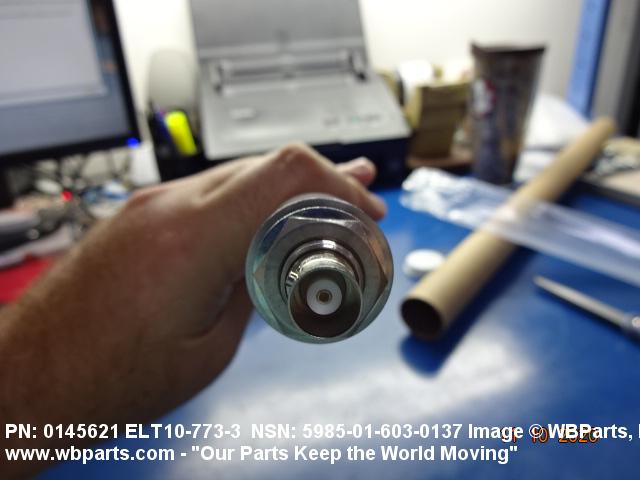

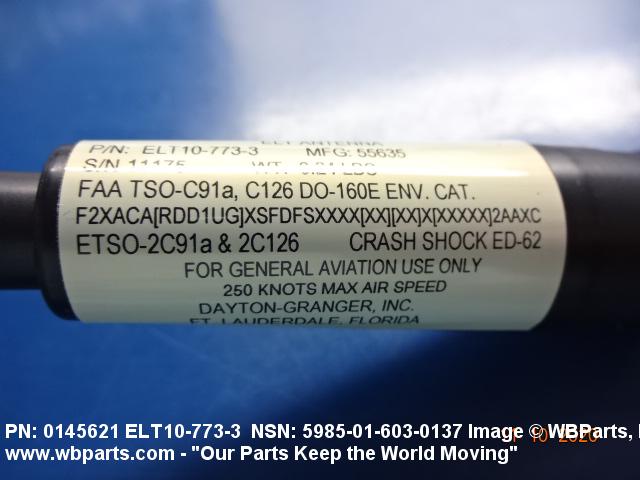

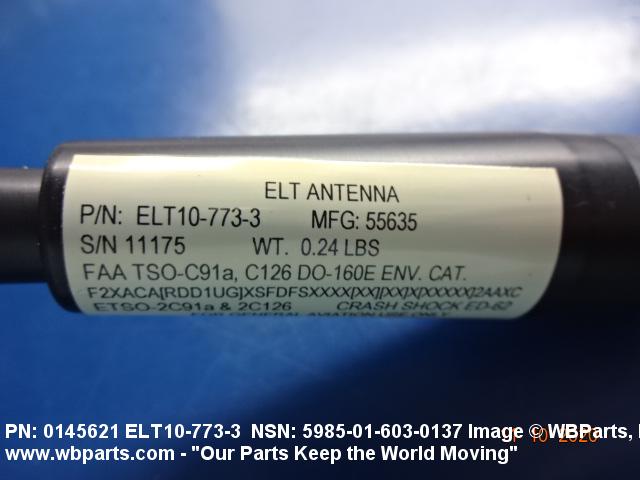

Drawings & Photos | NSN 5985-01-603-0137
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-603-0137
Technical Data | NSN 5985-01-603-0137
| Characteristic | Specifications |
|---|---|
| CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 ALL ANTENNAS |
| DESIGN TYPE | WHIP ALL ANTENNAS |
| TERMINAL TYPE | CABLE W/CONNECTOR ALL ANTENNAS |
| MOUNTING METHOD | CONNECTOR |
| MOUNTING HOLE DIAMETER | 13.0 MILLIMETERS NOMINAL |
| FREQUENCY RATING | 121.5 MEGAHERTZ MINIMUM AND 406.0 MEGAHERTZ MAXIMUM ALL ANTENNAS |
| RADIATION PATTERN | OMNIDIRECTIONAL ALL ANTENNAS |
| BEAM SCANNING METHOD | FIXED ALL ANTENNAS |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | WHIP ANTENNA |
Restrictions/Controls & Freight Information | NSN 5985-01-603-0137
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
