NSN 5985-01-003-0633 11D28500, 01-003-0633, 010030633
Product Details | ANTENNA
5985-01-003-0633 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: 11D28500, 5985-01-003-0633, 01-003-0633, 5985010030633, 010030633
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 APR 1975 | 01-003-0633 | 00749 ( ANTENNA ) |

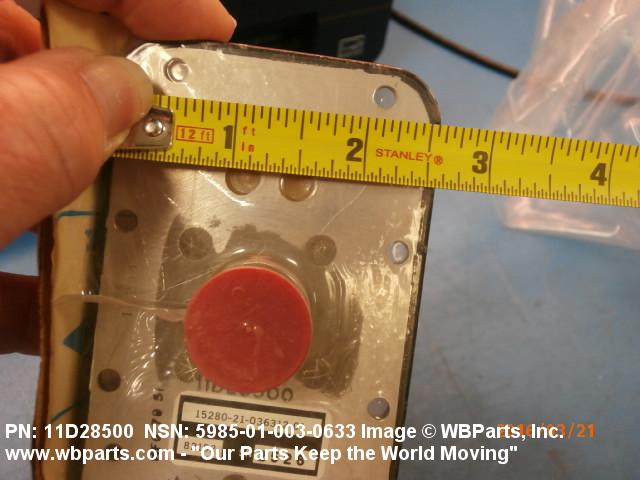

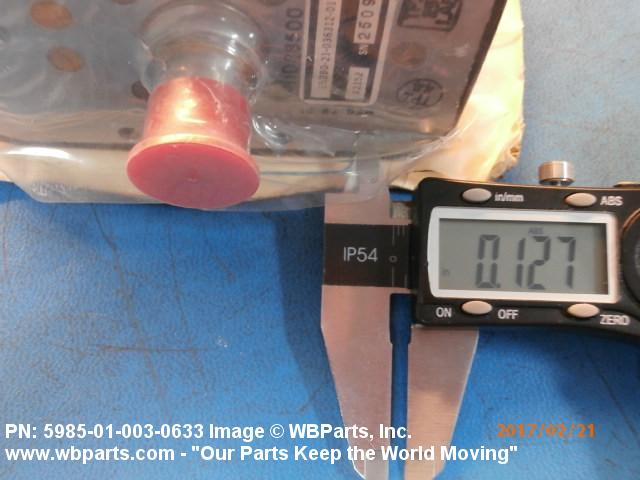

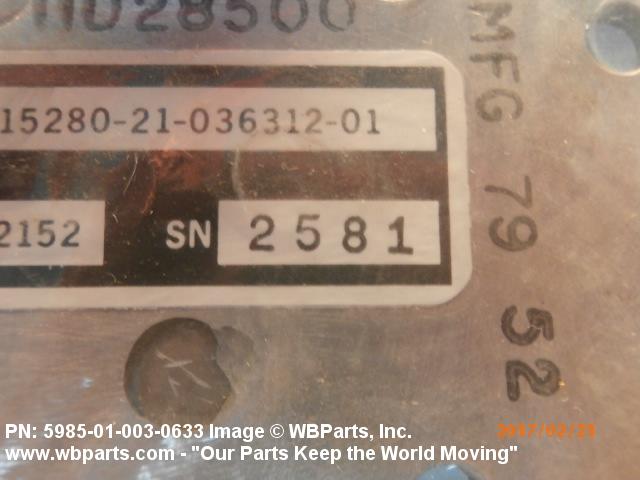

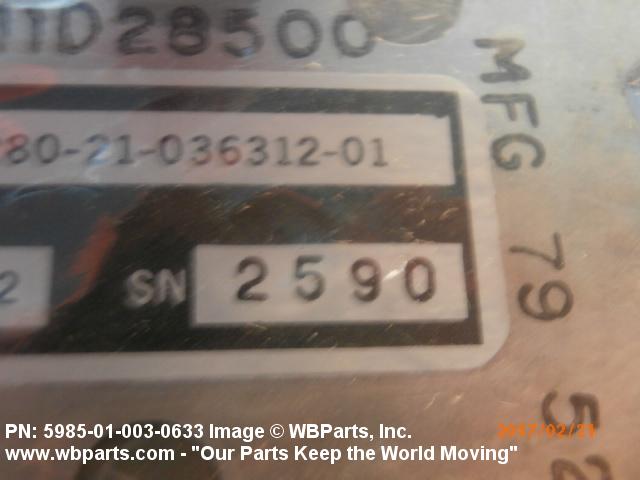

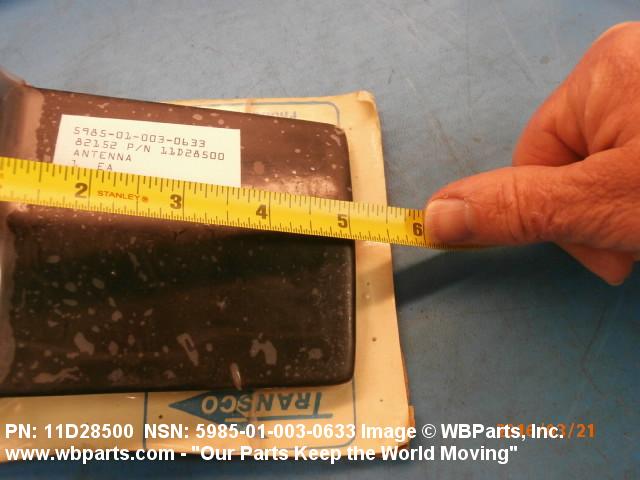

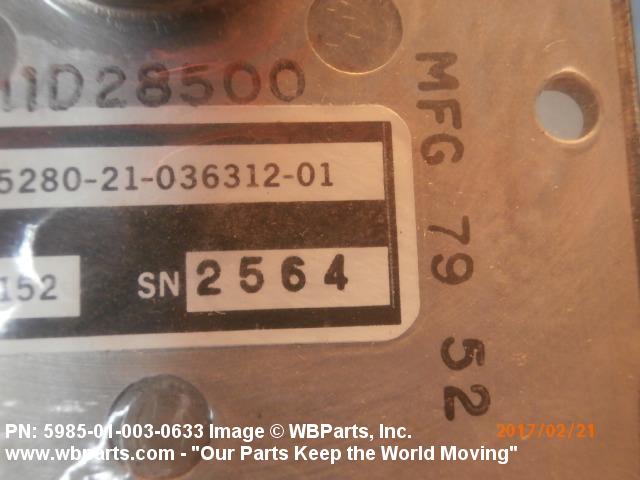

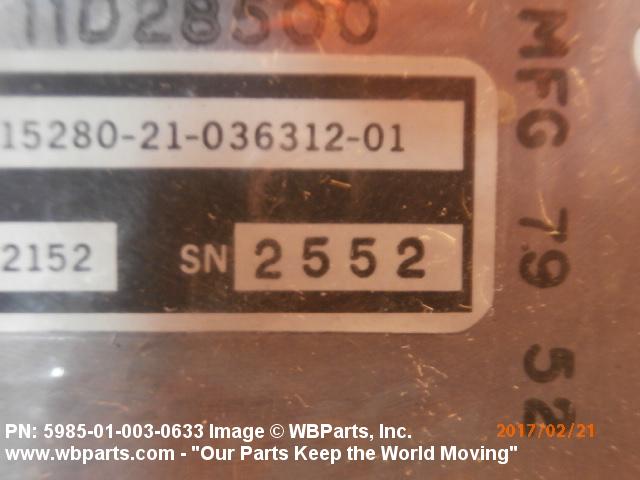

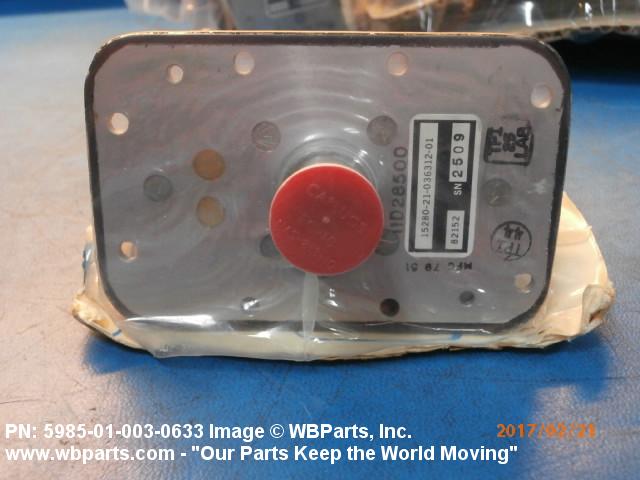

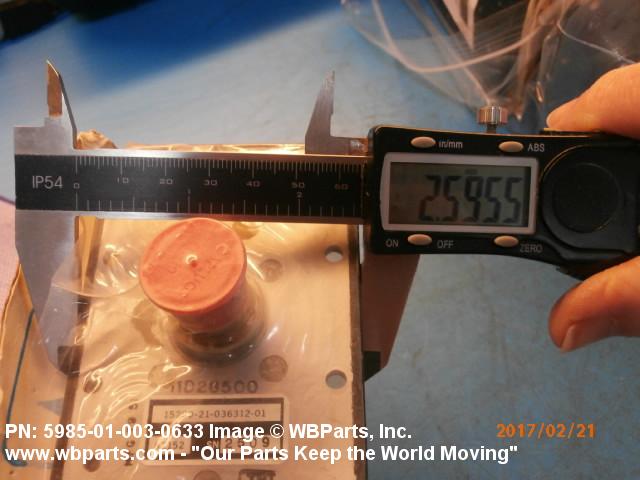

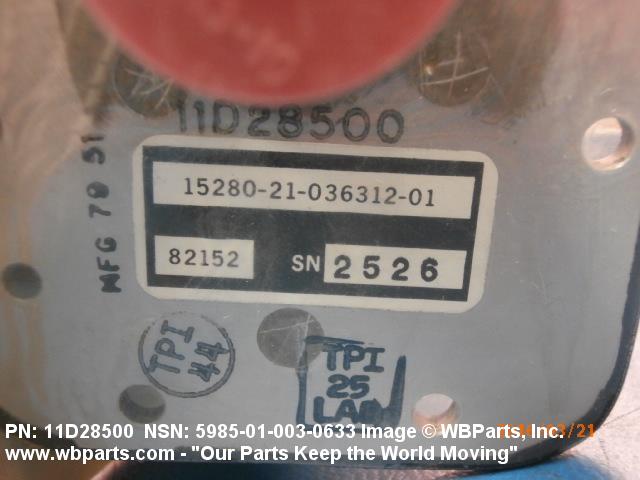

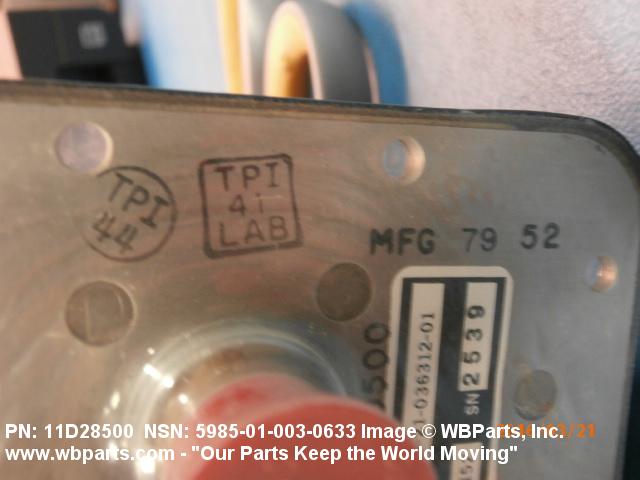

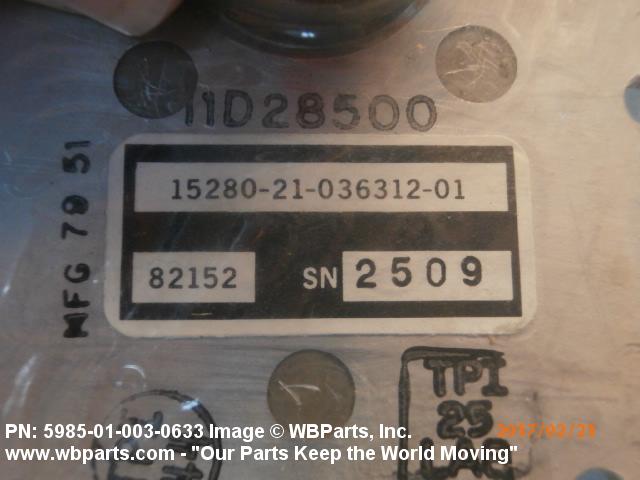

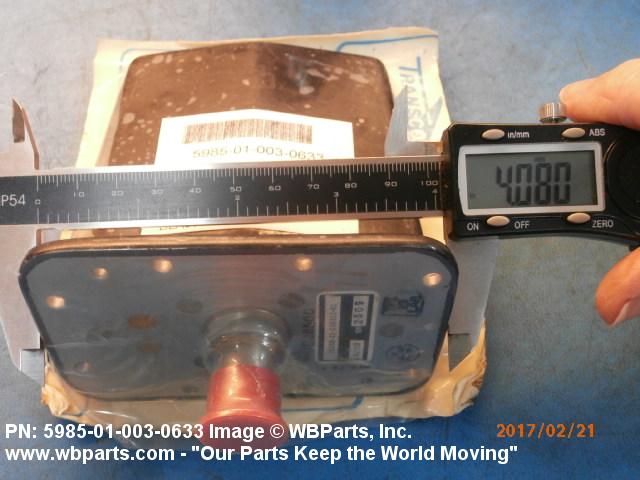

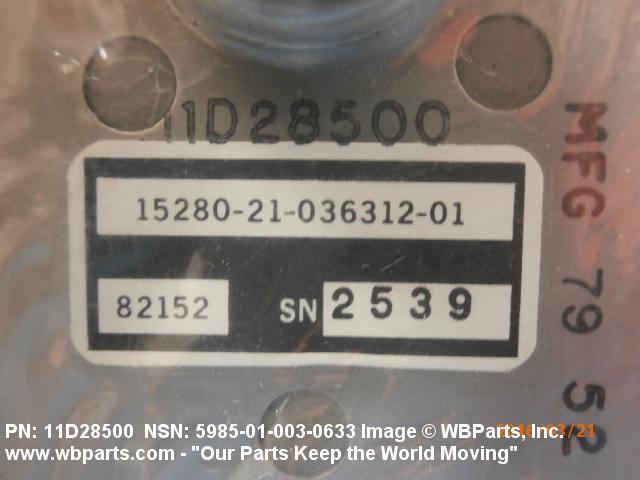

Drawings & Photos | NSN 5985-01-003-0633
Demand History | NSN 5985-01-003-0633
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 11D28500 | 2024-10-298 | 3 | DIBBS |
| 11D28500 | 2024-07-200 | 2 | DIBBS |
| 11D28500 | 2024-06-176 | 1 | DIBBS |
| 11D28500 | 2023-02-43 | 1 | DIBBS |
| 5985-01-003-0633 | 2022-08-224 | 10 | US |
| 11D28500 | 2022-04-94 | 1 | DIBBS |
| 5985-01-003-0633 | 2022-03-83 | 5 | United States |
| 11D28500 | 2022-03-79 | 1 | DIBBS |
| 11D28500 | 2021-10-304 | 1 | DIBBS |
| 11D28500 | 2019-11-328 | 2 | DIBBS |
| 5985-01-003-0633 | 2019-09-273 | 2 | United States |
| 11D28500 | 2019-04-108 | 2 | DIBBS |
| 11D28500 | 2019-03-80 | 2 | DIBBS |
| 11D28500 | 2019-01-17 | 3 | DIBBS |
| 5985-01-003-0633 | 2018-05-138 | 12 | US |
| 11D28500 | 2018-03-78 | 10 | United States |
| 5985-01-003-0633 | 2017-08-213 | 7 | United States |
| 5985-01-003-0633 | 2017-02-33 | 15 | United States |
| 5985-01-003-0633 | 2016-03-78 | 3 | DIBBS |
| 5985-01-003-0633 | 2016-03-68 | 2 | United States |
| 5985-01-003-0633 | 2016-02-53 | 3 | DIBBS |
| 5985-01-003-0633 | 2016-02-40 | 3 | DIBBS |
| 5985-01-003-0633 | 2014-10-279 | 2 | DIBBS |
| 5985-01-003-0633 | 2014-09-267 | 2 | DIBBS |
| 5985-01-003-0633 | 2013-07-199 | 2 | DIBBS |
| 5985-01-003-0633 | 2012-11-307 | 2 | DIBBS |
| 5985-01-003-0633 | 2012-09-262 | 3 | DIBBS |
| 5985-01-003-0633 | 2012-09-249 | 2 | US |
| 5985-01-003-0633 | 2012-08-229 | 2 | US |
| 5985-01-003-0633 | 2009-06-180 | 7 | DIBBS |
| 5985-01-003-0633 | 2008-01-10 | 4 | DIBBS |
| 5985-01-003-0633 | 2006-07-194 | 4 | DIBBS |
| 5985-01-003-0633 | 2006-05-145 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-003-0633
Related Products | NSN 5985-01-003-0633
Technical Data | NSN 5985-01-003-0633
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | BLADE SINGLE ANTENNA ELEMENT |
| ELECTROMAGNETIC POLARIZATION TYPE | VERTICAL SINGLE ANTENNA ELEMENT |
| RADIATION PATTERN | OMNIDIRECTIONAL SINGLE ANTENNA ELEMENT |
| BEAM SCANNING METHOD | FIXED SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 0.500 GIGAHERTZ MINIMUM AND 2.000 GIGAHERTZ MAXIMUM SINGLE ANTENNA ELEMENT |
| POWER RATING | 25.000 WATTS CW SINGLE ANTENNA ELEMENT |
| CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE ANTENNA ELEMENT |
| TERMINAL TYPE | RECEPTACLE, COAXIAL SINGLE ANTENNA ELEMENT |
| COAXIAL CONNECTOR SERIES DESIGNATION | N SINGLE ANTENNA ELEMENT |
| CONNECTOR END DESIGN | SOCKET SINGLE ANTENNA ELEMENT |
| OVERALL LENGTH | 5.190 INCHES NOMINAL |
| OVERALL HEIGHT | 2.560 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE QUANTITY | 10 |
| MOUNTING HOLE DIAMETER | 0.127 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| III UNPACKAGED UNIT WEIGHT | 0.800 POUNDS |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-01-003-0633
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060560 | AERIALS/ANTENNAE O/T TV |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-003-0633
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
