NSN 5985-01-394-9446 M15370/9-014N, M153709014N, MIL-C-15370/9
Product Details | DIRECTIONAL COUPLER
5985-01-394-9446 An item specifically designed to be inserted into a transmission line, waveguide or coaxial transmission line to provide a suitable test outlet. The test signal is attenuated to a predetermined value.
Part Alternates: M15370/9-014N, M153709014N, MIL-C-15370/9, MILC153709, 5985-01-394-9446, 01-394-9446, 5985013949446, 013949446
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 AUG 1994 | 01-394-9446 | 00384 ( COUPLER, DIRECTIONAL ) |

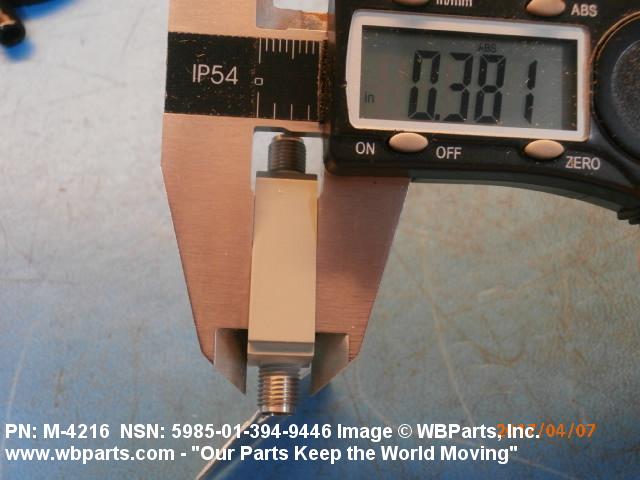

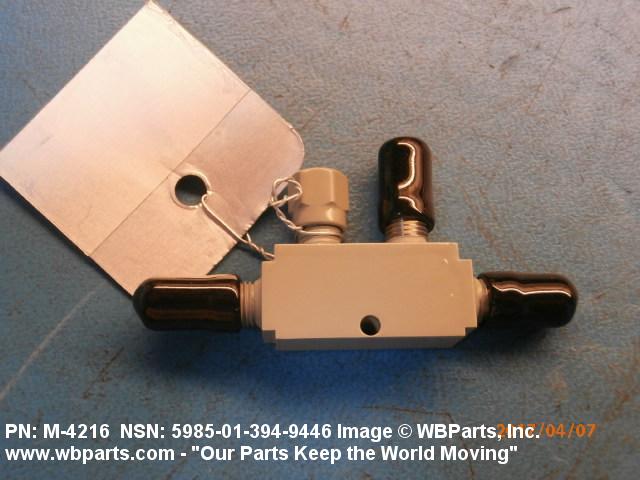

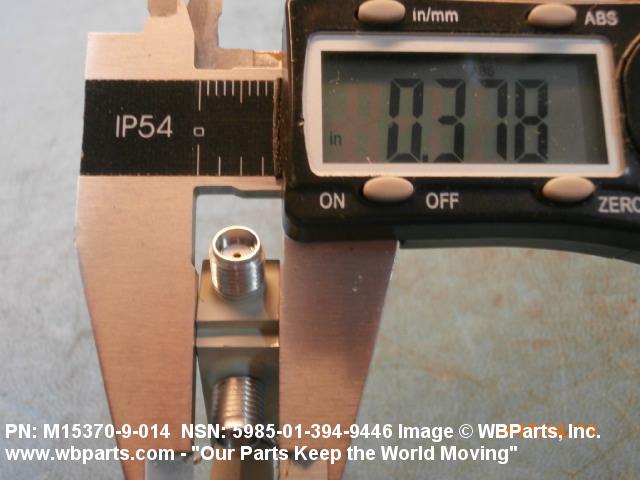

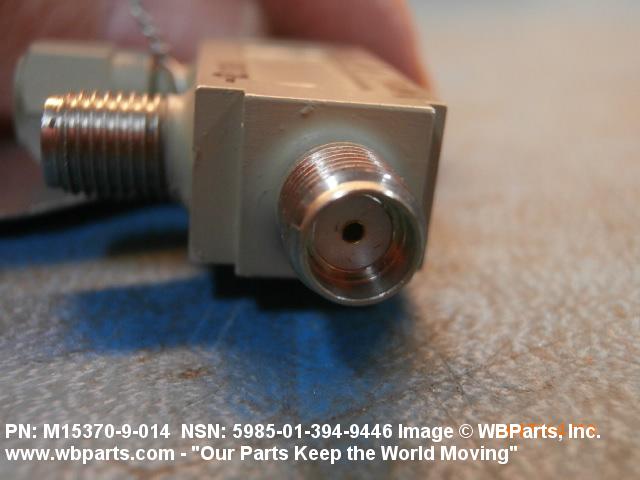

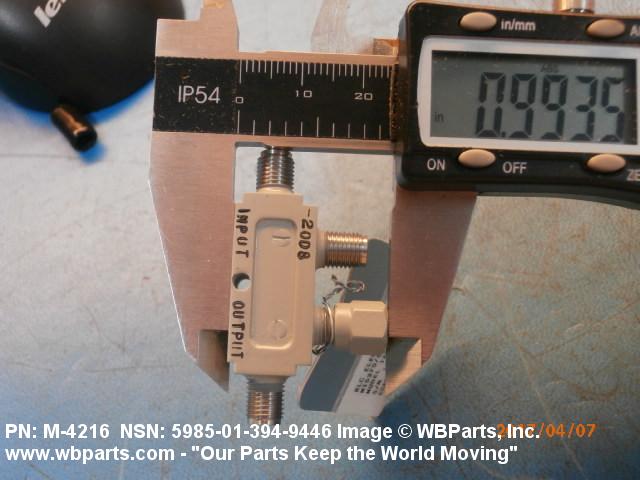

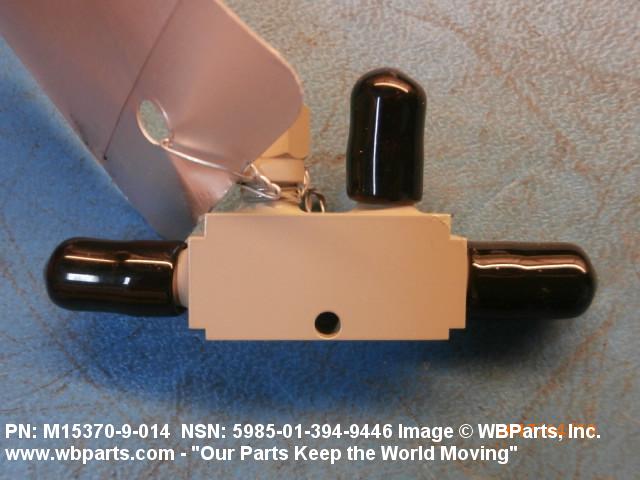

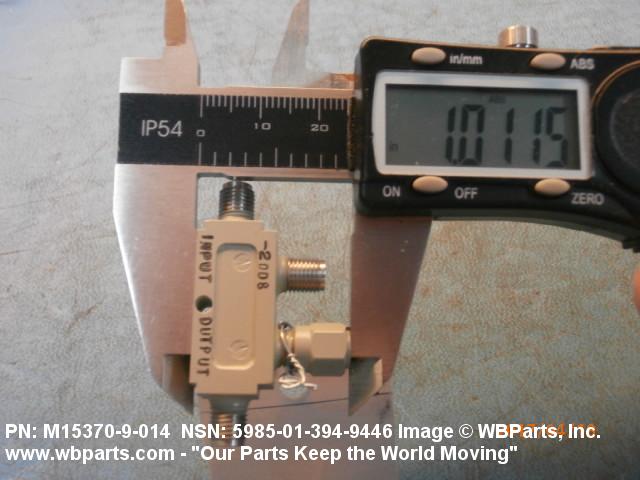

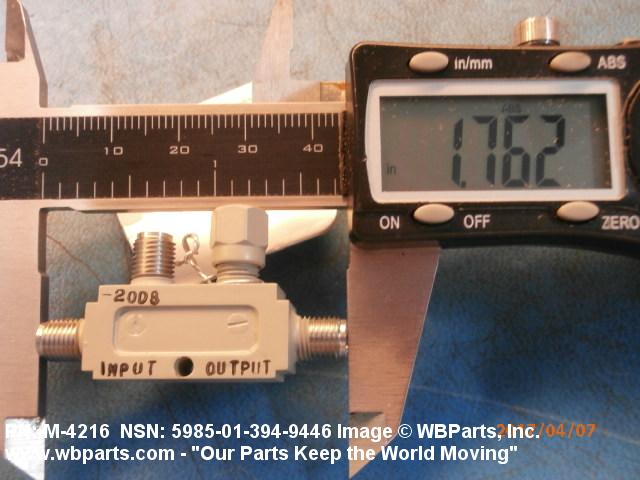

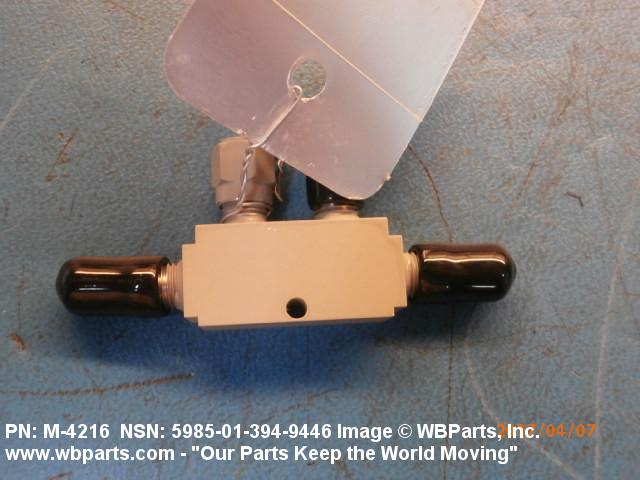

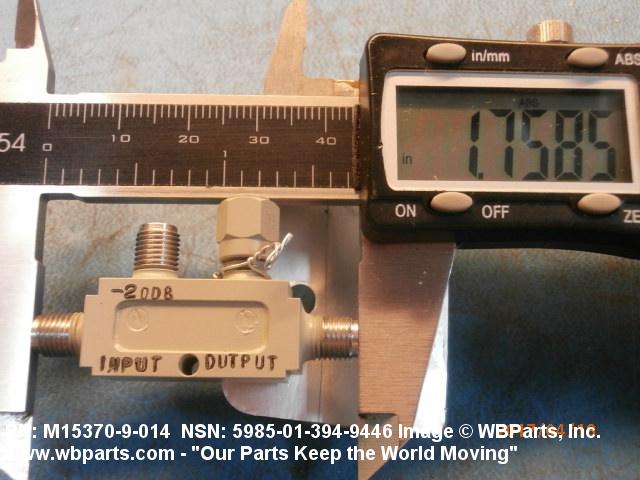

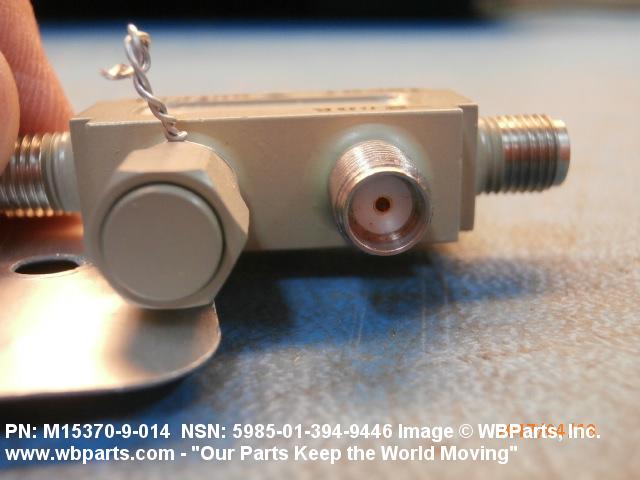

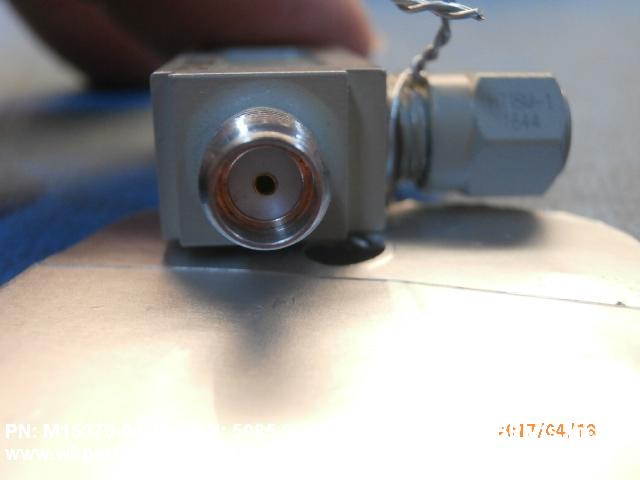

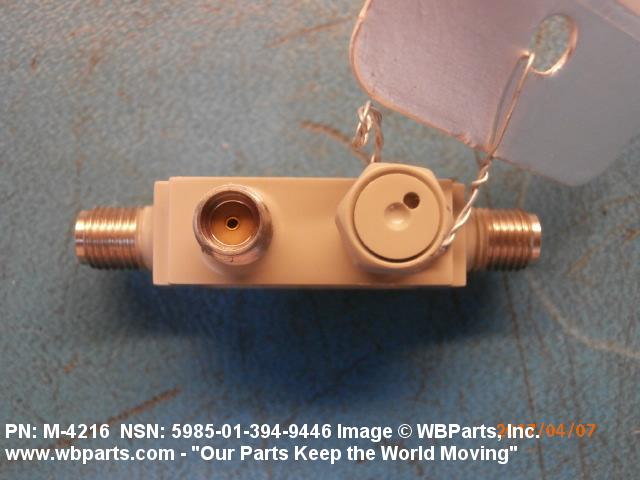

Drawings & Photos | NSN 5985-01-394-9446
Demand History | NSN 5985-01-394-9446
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-394-9446 | 2022-06-153 | 4 | DIBBS |
| 5985-01-394-9446 | 2019-03-66 | 8 | DIBBS |
| 5985-01-394-9446 | 2018-11-333 | 2 | DIBBS |
| 5985-01-394-9446 | 2017-08-215 | 5 | DIBBS |
| 5985-01-394-9446 | 2017-03-81 | 4 | DIBBS |
| 5985-01-394-9446 | 2017-01-19 | 1 | United States |
| 5985-01-394-9446 | 2016-12-340 | 7 | DIBBS |
| 5985-01-394-9446 | 2016-11-321 | 1 | United States |
| 5985-01-394-9446 | 2015-10-302 | 6 | DIBBS |
| 5985-01-394-9446 | 2015-08-221 | 5 | DIBBS |
| 5985-01-394-9446 | 2015-07-200 | 7 | DIBBS |
| 5985-01-394-9446 | 2013-11-308 | 12 | DIBBS |
| 5985-01-394-9446 | 2013-10-283 | 4 | DIBBS |
| 5985-01-394-9446 | 2013-06-175 | 18 | DIBBS |
| 5985-01-394-9446 | 2012-02-58 | 10 | DIBBS |
| 5985-01-394-9446 | 2011-07-187 | 9 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-394-9446
Related Products | NSN 5985-01-394-9446
Technical Data | NSN 5985-01-394-9446
| Characteristic | Specifications |
|---|---|
| UNIT TYPE | COAXIAL LINE |
| RADIO FREQUENCY RATING | 7.0 GIGAHERTZ MINIMUM AND 12.4 GIGAHERTZ MAXIMUM |
| DESIGN TYPE | BIDIRECTIONAL |
| POWER LOSS IN DECIBELS | 0.3 |
| TERMINAL FITTING NAME | SMA MALE COUPLING |
| TERMINAL FITTING USAGE DESIGN | MAIN LINE AND SECONDARY LINE |
| OVERALL LENGTH | 1.820 INCHES MAXIMUM |
| OVERALL WIDTH | 1.290 INCHES MAXIMUM |
| OVERALL HEIGHT | 0.400 INCHES NOMINAL |
| TEST DATA DOCUMENT | 81349-MIL-C-15370 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-C-15370/9 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-C-15370/9 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M15370/9-014N |
Restrictions/Controls & Freight Information | NSN 5985-01-394-9446
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061520 | COUPLINGS CONDUIT CAST IRON |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
