NSN 5985-01-298-4943 REMU0111, REM-U-0111, 2024403010

Product Details | DIRECTIONAL COUPLER

5985-01-298-4943 An item specifically designed to be inserted into a transmission line, waveguide or coaxial transmission line to provide a suitable test outlet. The test signal is attenuated to a predetermined value.

Part Alternates: REMU0111, REM-U-0111, 2024403010, 2024-4030-10, 5189424, 5985-01-298-4943, 01-298-4943, 5985012984943, 012984943

Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	17 APR 1989	01-298-4943	00384 ( COUPLER, DIRECTIONAL )

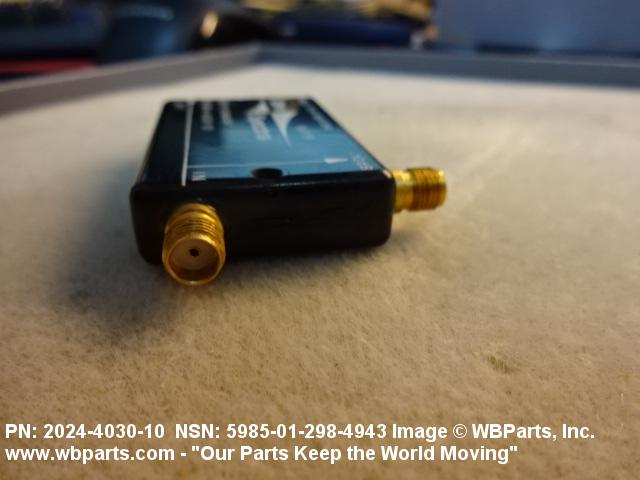

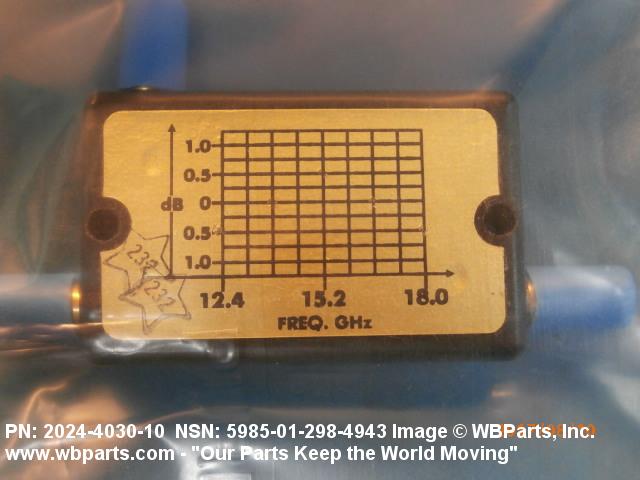

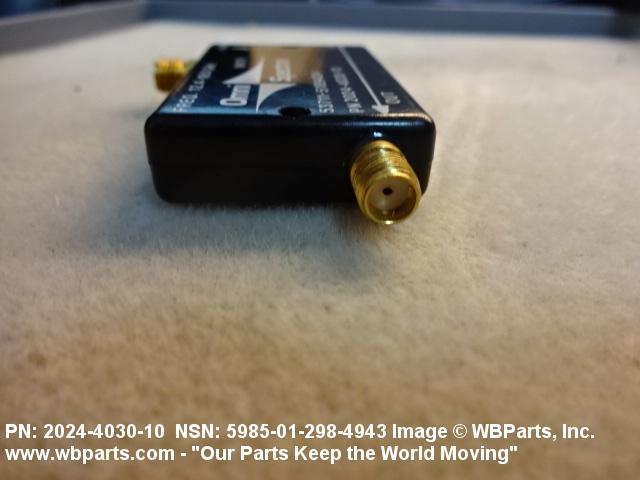

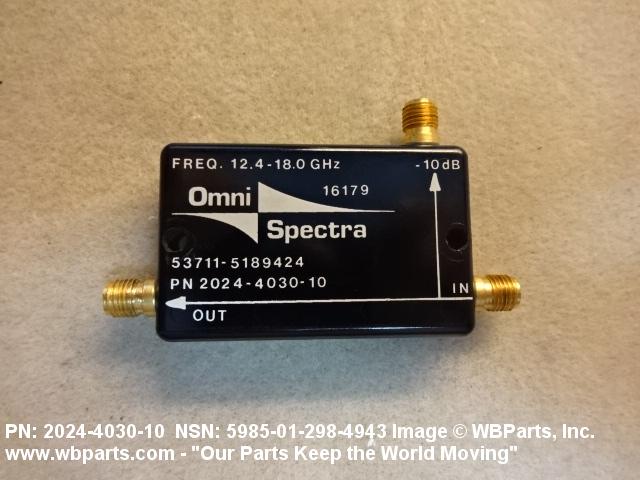

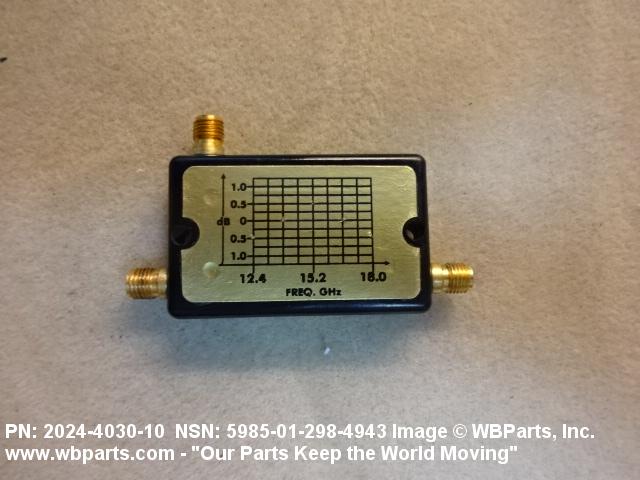

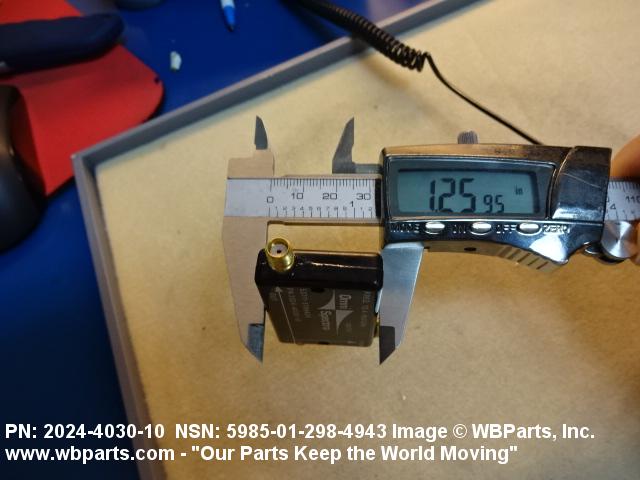

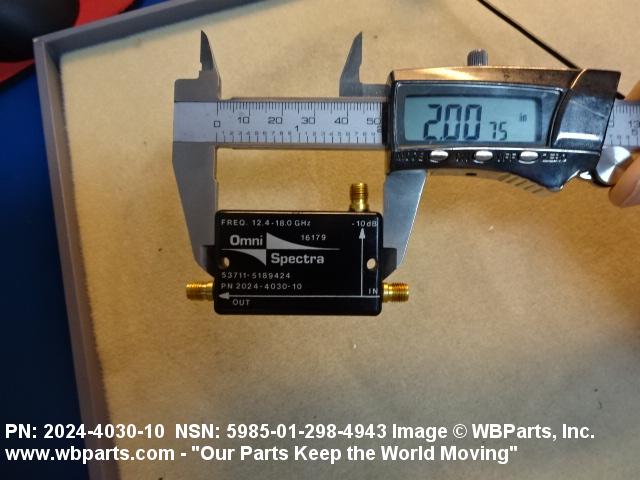

Drawings & Photos | NSN 5985-01-298-4943

Part Number	Request Date	QTY	Origin
5985-01-298-4943	2017-11-316	3	DIBBS
5985-01-298-4943	2017-10-277	1	DIBBS
5985-01-298-4943	2017-09-269	3	United Kingdom
5985-01-298-4943	2017-07-207	1	United Kingdom
5189424	2017-07-202	1	United Kingdom

Cross Reference | NSN 5985-01-298-4943

Part Number	Cage Code	Manufacturer
2024-4030-10	96341	COBHAM ELECTRONIC SYSTEMS INC. DBA COBHAM DEFENSE ELECTRONICS
5189424	06351	MICROWAVE ENGINEERING CORPORATION
5189424	0R8N4	ADVANCED TECHNICAL MATERIALS, INC. DBA A T M
5189424	0S2B1	RME FILTERS INC
5189424	53711	NAVAL SEA SYSTEMS COMMAND
REM-U-0111	0S2B1	RME FILTERS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5985-01-298-4943

Compare

Related Products | NSN 5985-01-298-4943

5985-01-298-4969, 5985-01-298-4972, 5985-01-298-4973, 5985-01-298-5067, 5985-01-298-5179

Technical Data | NSN 5985-01-298-4943

Characteristic	Specifications
UNIT TYPE	TRANSMISSION LINE
RADIO FREQUENCY RATING	12.4 GIGAHERTZ MINIMUM AND 18.0 GIGAHERTZ MAXIMUM
DESIGN TYPE	BIDIRECTIONAL
POWER LOSS IN DECIBELS	9.0 AND 11.0
TERMINAL FITTING USAGE DESIGN	MAIN LINE

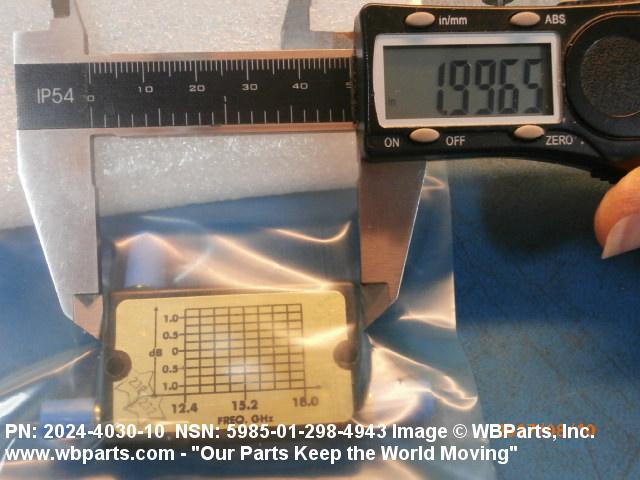

OVERALL LENGTH	1.970 INCHES MINIMUM AND 2.030 INCHES MAXIMUM

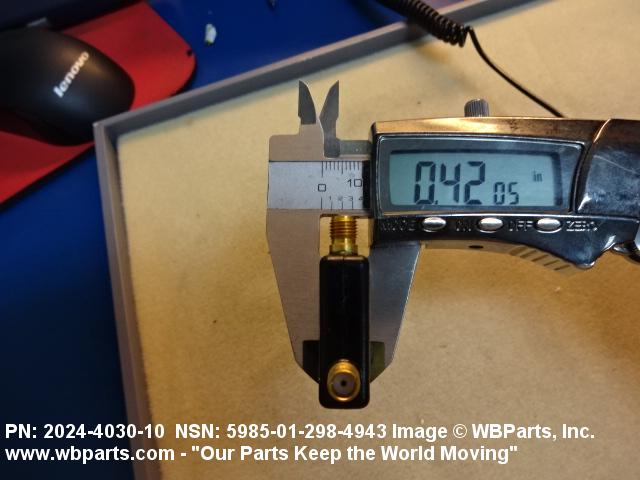

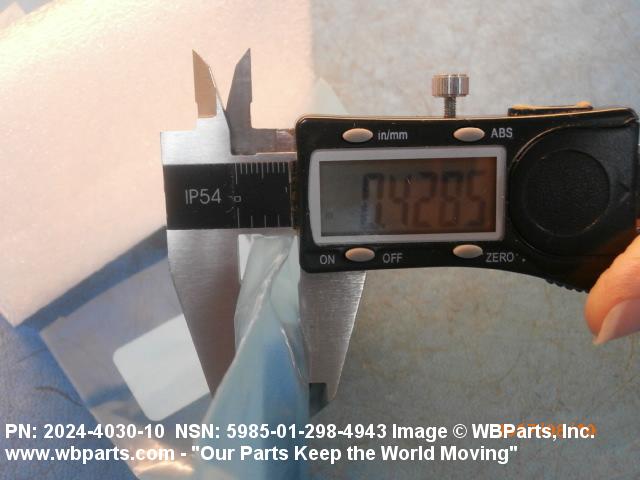

OVERALL HEIGHT	0.400 INCHES MINIMUM AND 0.440 INCHES MAXIMUM
SPECIAL FEATURES	CASE MATERIAL FIBERITE OR EQUIVALENT; EXTERNAL SURFACE NATURAL BLACK; CONNECTOR BODY OF CORROSION RESISTANT STEEL AND PASSIVATED; VSWR 1.3 MAX; INSERTION LOSS 35 DB MAX; TWO MOUNTING HOLES 0.005 IN. DIA
III FSC APPLICATION DATA	ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT

Restrictions/Controls & Freight Information | NSN 5985-01-298-4943

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	P	There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product
Demilitarization Code:	D	Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.)
Controlled Inventory Item Code:	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	061520	COUPLINGS CONDUIT CAST IRON
Less than car load rating
Less than truck load rating	P	77.5
Water commodity Code	72D	unknown
Originating Activity Code	TX	Defense Supply Center Columbus Columbus, OH 43218
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	H	Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5985-01-298-4943

Navy

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	7	NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7).
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
