NSN 5985-01-392-0613 2170132010, 217-0132-010, 01-392-0613
Product Details | WAVEGUIDE
5985-01-392-0613 An item consisting of a hollow tube of conductive material having a predetermined cross section specifically designed to guide or conduct high frequency electromagnetic energy through its interior. Does not include coaxial cable. Refers to bulk quantities only.
Part Alternates: 2170132010, 217-0132-010, 5985-01-392-0613, 01-392-0613, 5985013920613, 013920613
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 23-JUN-94 | 01-392-0613 | 00510 ( WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-392-0613
Demand History | NSN 5985-01-392-0613
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-392-0613 | 2013-11-307 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-392-0613
Technical Data | NSN 5985-01-392-0613
| Characteristic | Specifications |
|---|---|

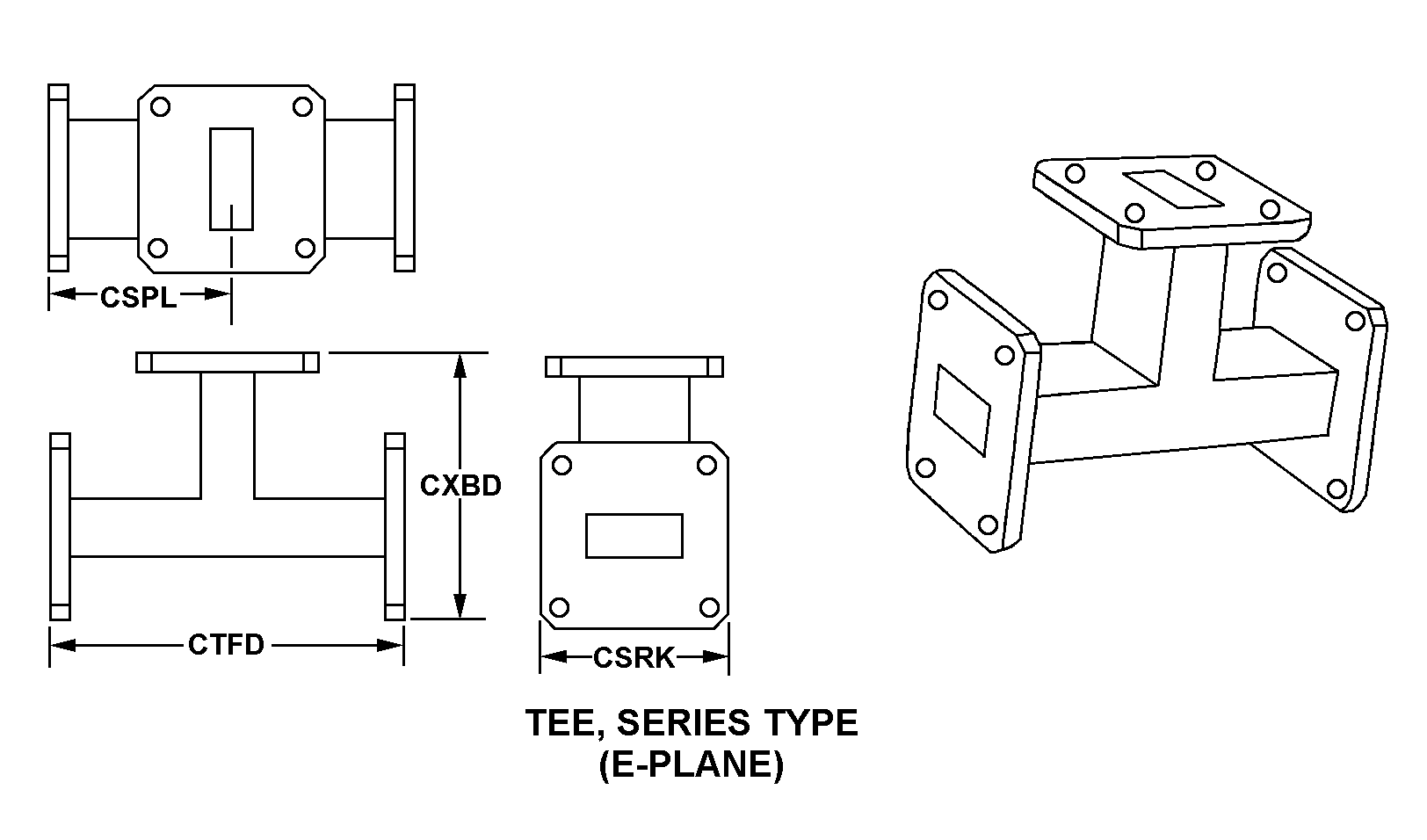

| STYLE DESIGNATOR | B8 TEE, SERIES TYPE |
| WAVEGUIDE LENGTH | 2.500 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| FLEXIBILITY | RIGID ALL TUBING SEGMENT |
| SPECIAL FEATURES | FREQUENCY, 43.25 GHZ TO 45.75 GHZ; VSWR, 1.10:1 MAXIMUM; INSERTION LOSS, 0.1 DB MAXIMUM; RF POWER CAPACITY; 250 WATTS CONTINUOUS WAVE; Q-BAND ASSEMBLY WITH PRESSURE RELIEF VALVE |
| III END ITEM IDENTIFICATION | MILSTAR |
Restrictions/Controls & Freight Information | NSN 5985-01-392-0613
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
