NSN 5985-01-052-6473 TFT784B12N, TFT-78-4-B-12N, 01-052-6473
Product Details | WAVEGUIDE
5985-01-052-6473 An item consisting of a hollow tube of conductive material having a predetermined cross section specifically designed to guide or conduct high frequency electromagnetic energy through its interior. Does not include coaxial cable. Refers to bulk quantities only.
Part Alternates: TFT784B12N, TFT-78-4-B-12N, 5985-01-052-6473, 01-052-6473, 5985010526473, 010526473
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 DEC 1977 | 01-052-6473 | 00510 ( WAVEGUIDE ) |

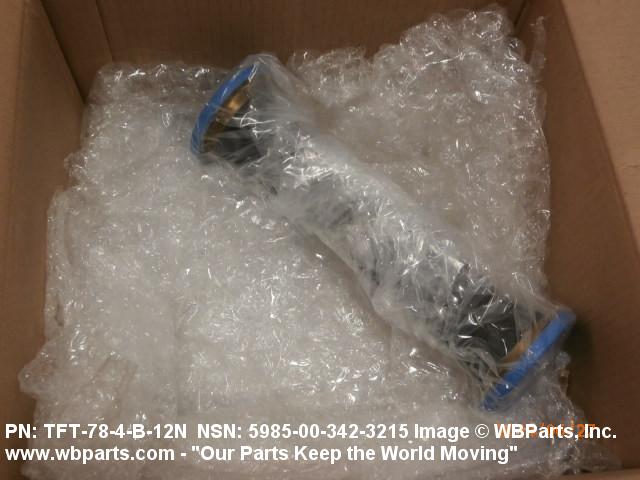

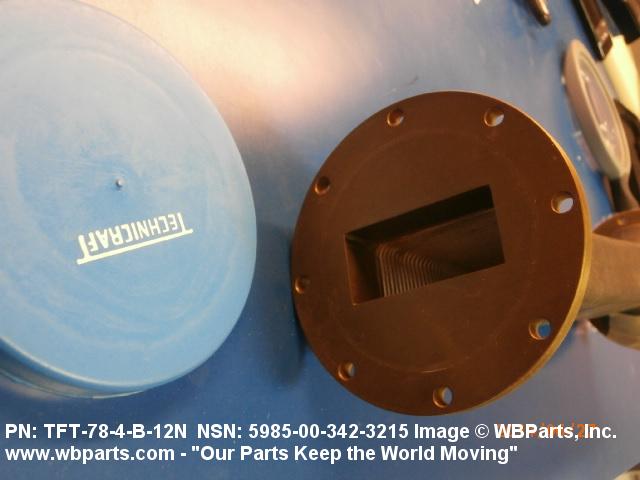

Drawings & Photos | NSN 5985-01-052-6473
Demand History | NSN 5985-01-052-6473
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TFT784B12N | 2007-12-353 | 2 | United Kingdom |
Cross Reference | NSN 5985-01-052-6473
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TFT-78-4-B-12N | 0BX85 | KEDDEG COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-052-6473
Technical Data | NSN 5985-01-052-6473
| Characteristic | Specifications |
|---|---|
| WAVEGUIDE LENGTH | 12.000 INCHES NOMINAL |
| FLEXIBILITY | FLEXIBLE SINGLE TUBING SEGMENT |
| III END ITEM IDENTIFICATION | WSR-74C RADAR, LWR |
Restrictions/Controls & Freight Information | NSN 5985-01-052-6473
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
