Product Details | ELECTRICAL DUMMY LOAD
5985-01-341-0811 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: A3TC02, 413139, 5985-01-341-0811, 01-341-0811, 5985013410811, 013410811
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JUN 1991 | 01-341-0811 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-01-341-0811
Demand History | NSN 5985-01-341-0811
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-341-0811 | 2008-09-259 | 7 | DIBBS |
| 5985-01-341-0811 | 2008-06-158 | 1 | DIBBS |
| 5985-01-341-0811 | 2008-05-134 | 9 | DIBBS |
| 5985-01-341-0811 | 2008-05-123 | 10 | DIBBS |
| 5985-01-341-0811 | 2008-01-12 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-341-0811
Technical Data | NSN 5985-01-341-0811
| Characteristic | Specifications |
|---|---|

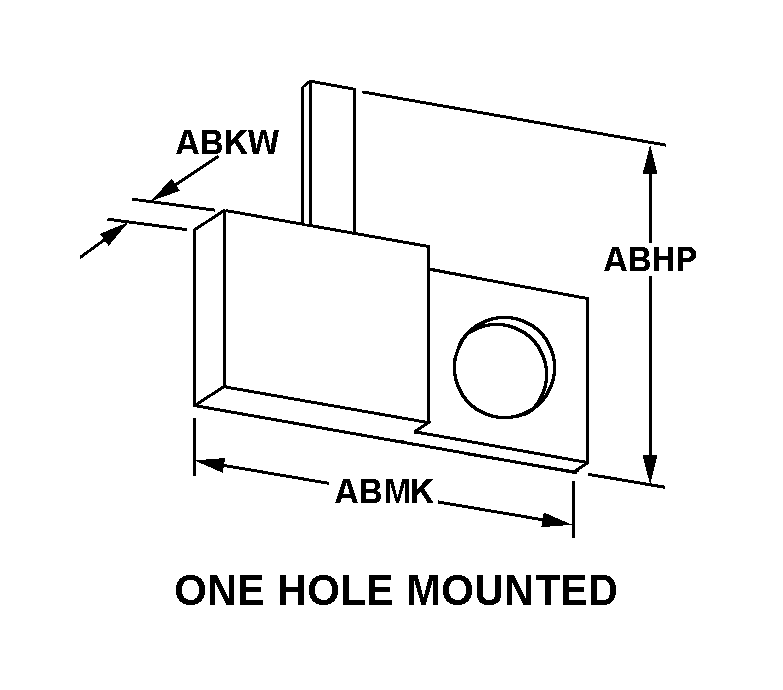

| STYLE DESIGNATOR | 32A ONE HOLE MOUNTED |
| OVERALL LENGTH | 0.500 INCHES NOMINAL |
| OVERALL HEIGHT | 0.160 INCHES MAXIMUM |
| OVERALL WIDTH | 0.515 INCHES NOMINAL |
| FREQUENCY RANGE RATING | 0.000 TO 2.000 GIGAHERTZ |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| VOLTAGE STANDING WAVE RATIO | 1.20 AND 1.35 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.000 TO 1.000 GIGAHERTZ AND 1.000 TO 2.000 GIGAHERTZ |
| TERMINATION TYPE | CONNECTOR |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
| III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIP. |
