NSN 5985-00-576-9755 2002610000, 2002-6100-00, 20206100
Product Details | ELECTRICAL DUMMY LOAD
5985-00-576-9755 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 2002610000, 2002-6100-00, 20206100, 2020-6100, 5985-00-576-9755, 00-576-9755, 5985005769755, 005769755
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 11 DEC 1974 | 00-576-9755 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-00-576-9755
Demand History | NSN 5985-00-576-9755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-576-9755 | 2010-02-53 | 28 | DIBBS |
| 5985-00-576-9755 | 2008-07-205 | 5 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-576-9755
Technical Data | NSN 5985-00-576-9755
| Characteristic | Specifications |
|---|---|

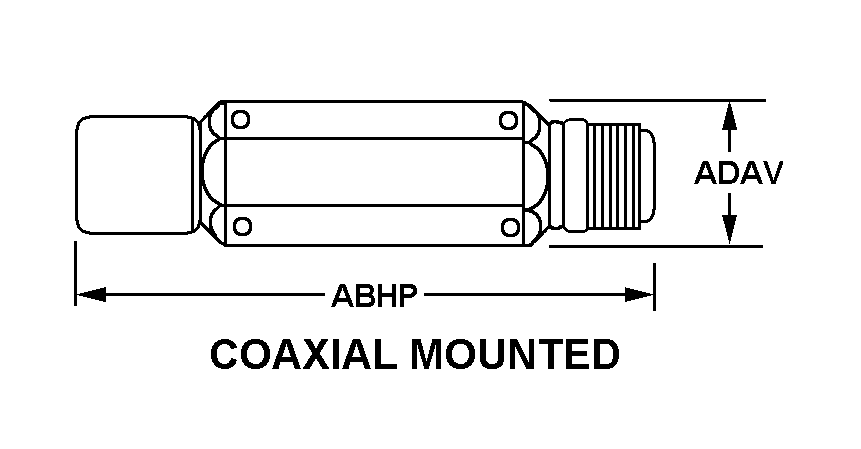

| STYLE DESIGNATOR | 2A COAXIAL MOUNTED |
| OVERALL LENGTH | 0.658 INCHES NOMINAL |
| OVERALL DIAMETER | 0.312 INCHES NOMINAL |
| FREQUENCY RANGE RATING | 0.000 TO 18.000 GIGAHERTZ |
| POWER RATING | ANY ACCEPTABLE |
| IMPEDANCE RATING IN OHMS | NOT RATED |
| VOLTAGE STANDING WAVE RATIO | ANY ACCEPTABLE |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.000 TO 18.000 GIGAHERTZ |
| TERMINATION TYPE | CONNECTION COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | TNC |
| CONNECTOR END DESIGN | FEMALE |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
Restrictions/Controls & Freight Information | NSN 5985-00-576-9755
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
