Product Details | VARIABLE ATTENUATOR
5985-00-577-2863 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: JJ62599, 652400-152, 5985-00-577-2863, 00-577-2863, 5985005772863, 652400152, 005772863
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-577-2863 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-577-2863
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-577-2863
Related Products | NSN 5985-00-577-2863
Technical Data | NSN 5985-00-577-2863
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |

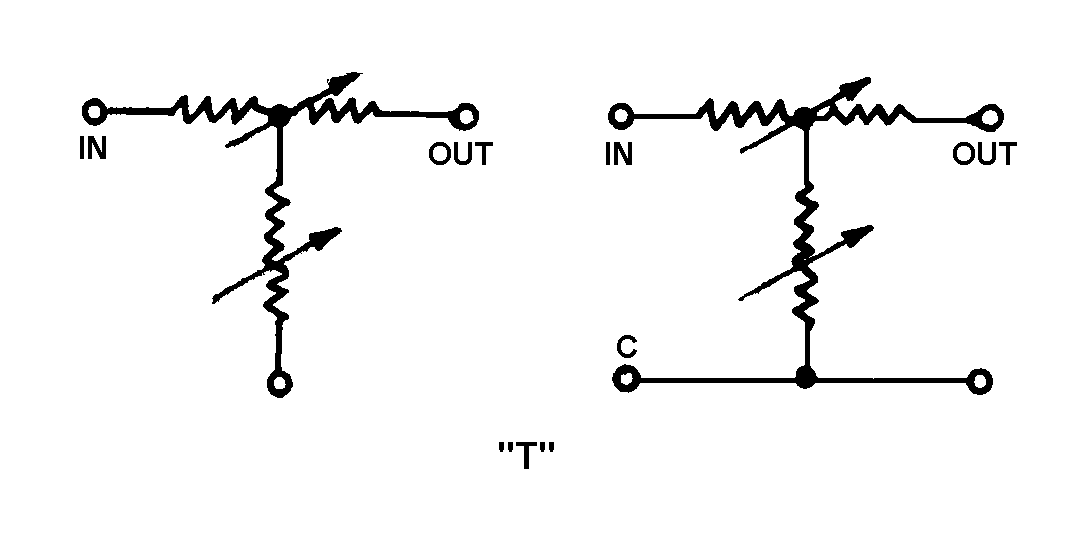

| SCHEMATIC DIAGRAM DESIGNATOR | 8D T |
| IMPEDANCE RATING IN OHMS | 500.0 INPUT-OUTPUT |
| POWER RATING | 2.0 WATTS AVERAGE |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.1 TO 43.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -4.29 TO 4.29 |
| ATTENUATION VARIATION METHOD | CONTINUOUS |
| BODY DIAMETER | 1.157 INCHES NOMINAL |
| BUSHING LENGTH | 0.375 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 2 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 1 THREADED BUSHING |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNEF |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.375 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
| MANUFACTURERS CODE | 12436 |
| DESIGN CONTROL REFERENCE | 652400-152 |
