Product Details | VARIABLE ATTENUATOR
5985-00-577-9659 A device for reducing the strength of an alternating current signal either continuously or in steps, without causing appreciable signal distortion, by maintaining substantially constant output and/or input impedance match. Continuously variable resistive devices must consist of at least two sections or one section with at least two rotating contacts. The item must have an overall attenuation rating. Includes tandem mounted variable resistors designed to function as an attenuator but whose terminals are not connected. See also RESISTOR, VAIABLE (as modified).
Part Alternates: LA353G, 5985-00-577-9659, 00-577-9659, 5985005779659, 005779659
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-577-9659 | 00838 ( ATTENUATOR, VARIABLE ) |
Drawings & Photos | NSN 5985-00-577-9659
Demand History | NSN 5985-00-577-9659
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-577-9659 | 2008-03-61 | 2 | US |
Cross Reference | NSN 5985-00-577-9659
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LA353G | 58880 | MEGGITT (NEW HAMPSHIRE), INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-577-9659
Technical Data | NSN 5985-00-577-9659
| Characteristic | Specifications |
|---|---|
| APPLICATION DESIGN | AUDIO |

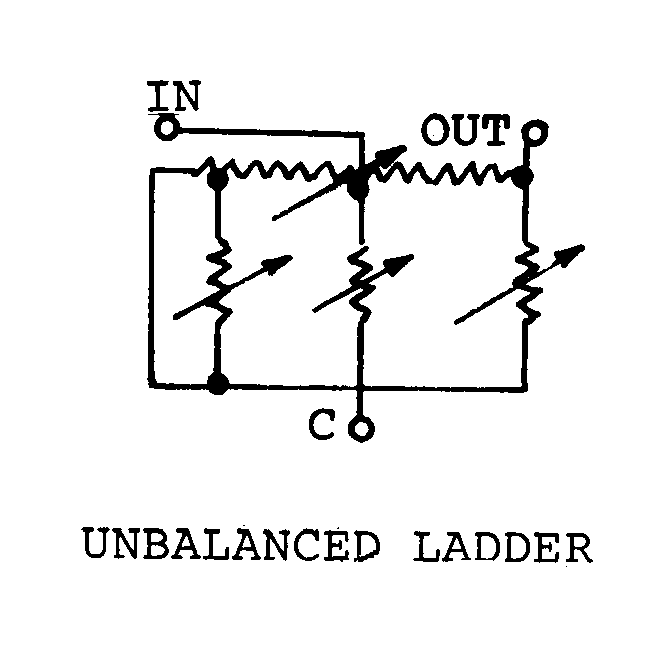

| SCHEMATIC DIAGRAM DESIGNATOR | 2D UNBALANCED LADDER |
| FREQUENCY RANGE | 0.000 KILOHERTZ MINIMUM AND 20.000 KILOHERTZ MAXIMUM |
| IMPEDANCE RATING IN OHMS | 600.0 INPUT-OUTPUT |
| POWER RATING | 2.0 WATTS PEAK |
| OVERALL ATTENUATION RANGE IN DECIBELS | 0.0 TO 40.0 |
| OVERALL ATTENUATION ACCURACY IN DECIBELS | -1.00 TO 1.00 |
| ATTENUATION VARIATION METHOD | STEPPED |
| STEP POSITION QUANTITY | 20 |
| ATTENUATION PER STEP IN DECIBELS | 2.0 |
| BODY STYLE | 33A CYLINDRICAL W/SIDE TERMINALS |
| OVERALL LENGTH | 1.750 INCHES NOMINAL |
| OVERALL WIDTH | 2.219 INCHES NOMINAL |
| BODY DIAMETER | 1.719 INCHES NOMINAL |
| BUSHING LENGTH | 0.375 INCHES NOMINAL |
| BODY LENGTH | 0.875 INCHES NOMINAL |
| ADJUSTMENT DEVICE TYPE AND QUANTITY | 1 SHAFT |
| SHAFT TYPE | ROUND |
| SHAFT DIAMETER | 0.250 INCHES NOMINAL |
| SHAFT LENGTH | 0.875 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 TAB, SOLDER LUG |
| MOUNTING FACILITY TYPE AND QUANTITY | 2 THREADED HOLE |
| MOUNTING FACILITY SCREW THREAD SERIES DESIGNATOR | UNC |
| MOUNTING FACILITY NOMINAL SCREW THREAD DIAMETER | 0.138 INCHES |
| MOUNTING THREAD QUANTITY | 32 PER INCH |
