NSN 5985-01-336-3361 M23971/14-02, M239711402, MIL-P-23971/14
Product Details | RADIO FREQUENCY POWER DIVIDER
5985-01-336-3361 An item specifically designed to separate incoming radio frequency power into predetermined proportional values at its output terminals.20358950037Miscellaneous Communication Equipment59850043Antennas, Waveguides, and Related Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments
Part Alternates: M23971/14-02, M239711402, MIL-P-23971/14, MILP2397114, 5985-01-336-3361, 01-336-3361, 5985013363361, 013363361
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 MAR 1991 | 01-336-3361 | 60411 ( DIVIDER, POWER, RADIO FREQUENCY ) |

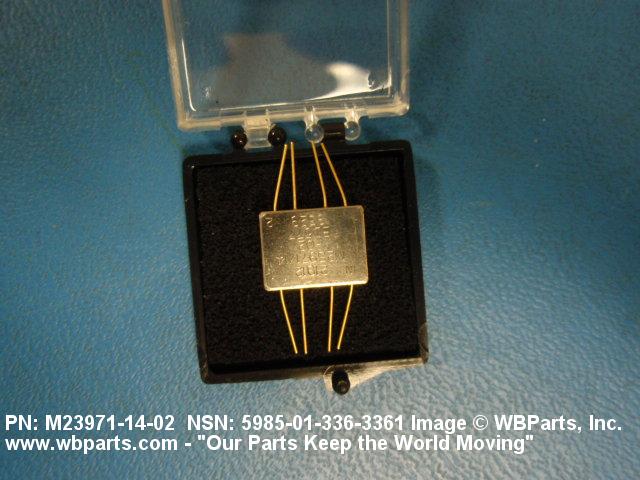

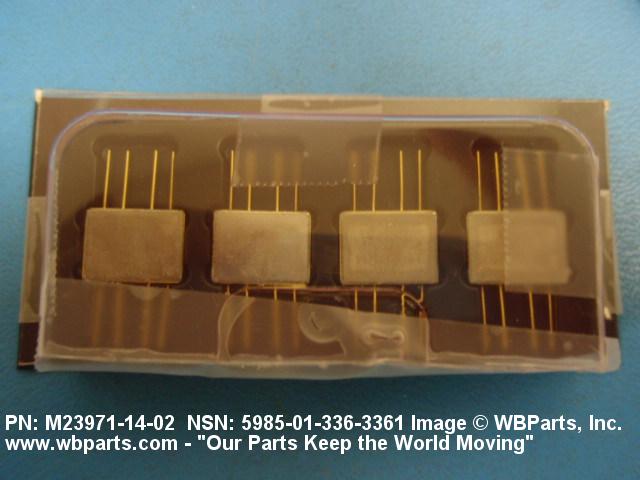

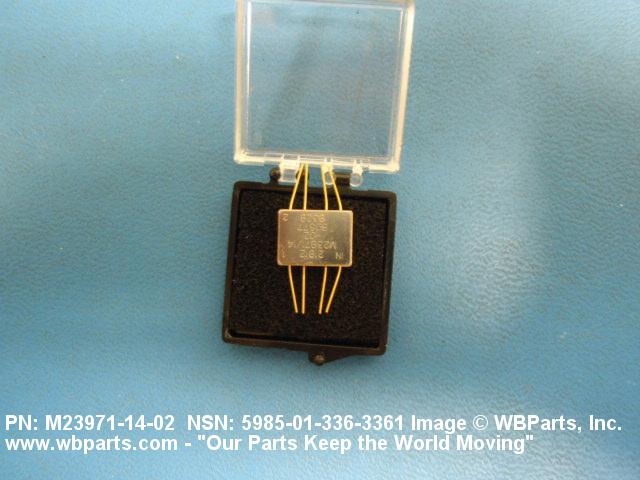

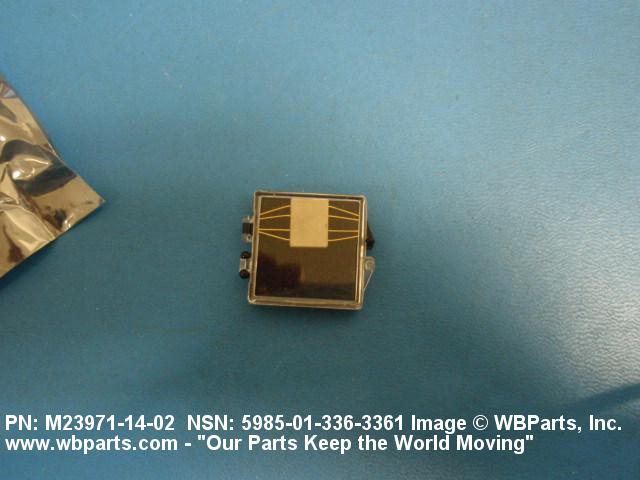

Drawings & Photos | NSN 5985-01-336-3361
Demand History | NSN 5985-01-336-3361
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-336-3361 | 2010-01-22 | 3 | DIBBS |
| 5985-01-336-3361 | 2009-10-283 | 5 | United States |
| 5985-01-336-3361 | 2009-06-161 | 68 | United States |
| MILP2397114 | 2007-12-354 | 4 | US |
| 5985-01-336-3361 | 2007-12-341 | 21 | us |
| M239711402 | 2007-11-319 | 27 | US |
| M239711402 | 2007-11-319 | 99 | US |
| M239711402 | 2007-11-319 | 153 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-336-3361
Related Products | NSN 5985-01-336-3361
Technical Data | NSN 5985-01-336-3361
| Characteristic | Specifications |
|---|---|
| FREQUENCY RATING | 10.0 MEGAHERTZ MINIMUM AND 500.0 MEGAHERTZ MAXIMUM |
| POWER RATING | 1.0 WATTS PEAK |
| VOLTAGE STANDING WAVE RATIO | 1.30 |
| INSERTION LOSS IN DECIBELS | 0.6 |
| OVERALL LENGTH | 1.006 INCHES NOMINAL |
| OVERALL HEIGHT | 0.125 INCHES NOMINAL |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| UNPACKAGED UNIT WEIGHT | 2.8 GRAMS |
| SPECIAL FEATURES | IMPEDANCE 50 OHMS; OPERATING TEMP RANGE -55 TO 85 DEG C; EIGHT 0.018 IN. DIA PINS |
| TEST DATA DOCUMENT | 81349-MIL-P-23971 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-P-23971/14 GOVERNMENT SPECIFICATION |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-P-23971/14 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M23971/14-02 |
Restrictions/Controls & Freight Information | NSN 5985-01-336-3361
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 116030 | MACHINES ETC DATA PROCESSING |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-336-3361
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
