NSN 5985-01-294-6008 22750140, 22750-140, 01-294-6008
Product Details | WAVEGUIDE ADAPTER
5985-01-294-6008 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 22750140, 22750-140, 5985-01-294-6008, 01-294-6008, 5985012946008, 012946008
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 18 FEB 1989 | 01-294-6008 | 00186 ( ADAPTER, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-294-6008
Cross Reference | NSN 5985-01-294-6008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 22750-140 | 63661 | MICROWAVE DEVELOPMENT COMPANY INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-294-6008
Technical Data | NSN 5985-01-294-6008
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | D9 WAVEGUIDE TO COAXIAL |
| ADAPTER HEIGHT | 0.750 INCHES NOMINAL |
| ADAPTER OVERALL WIDTH | 1.750 INCHES NOMINAL |

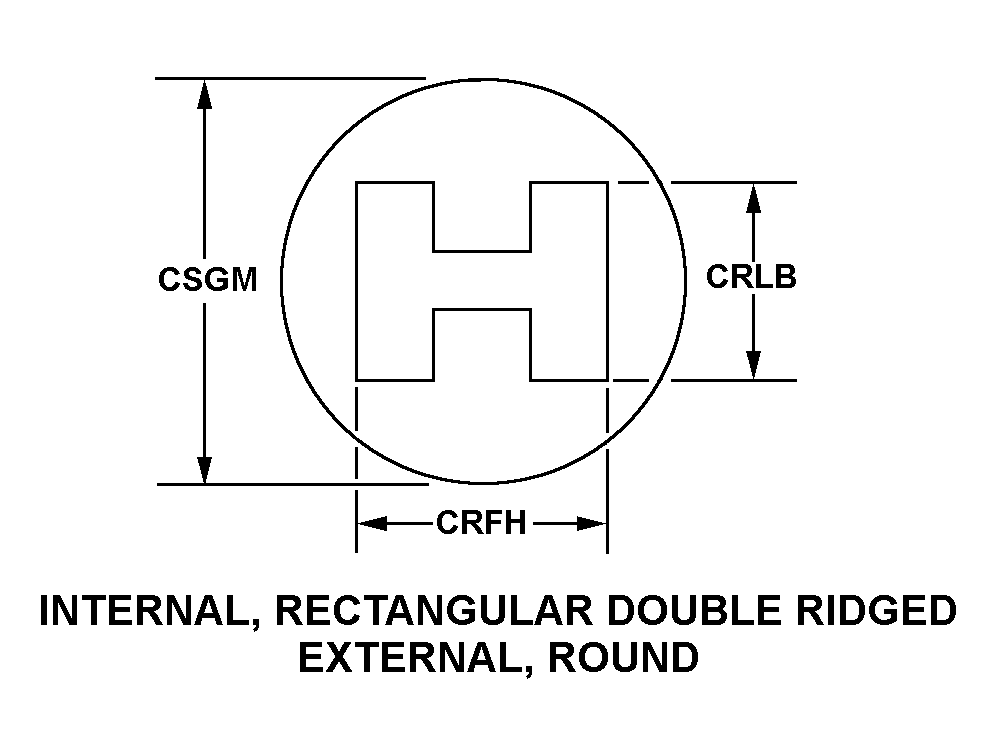

| CROSS-SECTIONAL SHAPE STYLE | A12 INTERNAL, RECTANGULAR DOUBLE RIDGED EXTERNAL, ROUND |
| WAVEGUIDE OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY 6061 SINGLE TUBING SEGMENT |
| FLANGE QUANTITY | 1 |
| FLANGE STYLE | C16 CONTACT, DOUBLE RIDGE TYPE SINGLE FLANGE |
| FLANGE OUTSIDE WIDTH | 1.750 INCHES NOMINAL SINGLE FLANGE |
| FLANGE OUTSIDE HEIGHT | 0.750 INCHES NOMINAL SINGLE FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 2 UNTHREADED STUD SINGLE FLANGE SECOND CONNECTION FACILITY |
Restrictions/Controls & Freight Information | NSN 5985-01-294-6008
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
