NSN 5985-01-283-2490 R81209, R81-209, R81EPS30SMA
Product Details | ELECTRICAL DUMMY LOAD
5985-01-283-2490 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: R81209, R81-209, R81EPS30SMA, R81E-PS-30-SMA, 10109863101, 10109863-101, 21475H120038C1A, 21475-H1200-38-C1A, 4753CSMAF30, 475-3C-SMA-F-30, 5985-01-283-2490, 01-283-2490, 5985012832490, 012832490
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 31 JUL 1988 | 01-283-2490 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-01-283-2490
Cross Reference | NSN 5985-01-283-2490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10109863-101 | 94580 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 21475-H1200-38-C1A | 63661 | MICROWAVE DEVELOPMENT COMPANY INC |
| 475-3C-SMA-F-30 | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| R81-209 | 06351 | MICROWAVE ENGINEERING CORPORATION |
| R81E-PS-30-SMA | 06351 | MICROWAVE ENGINEERING CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-283-2490
Technical Data | NSN 5985-01-283-2490
| Characteristic | Specifications |
|---|---|

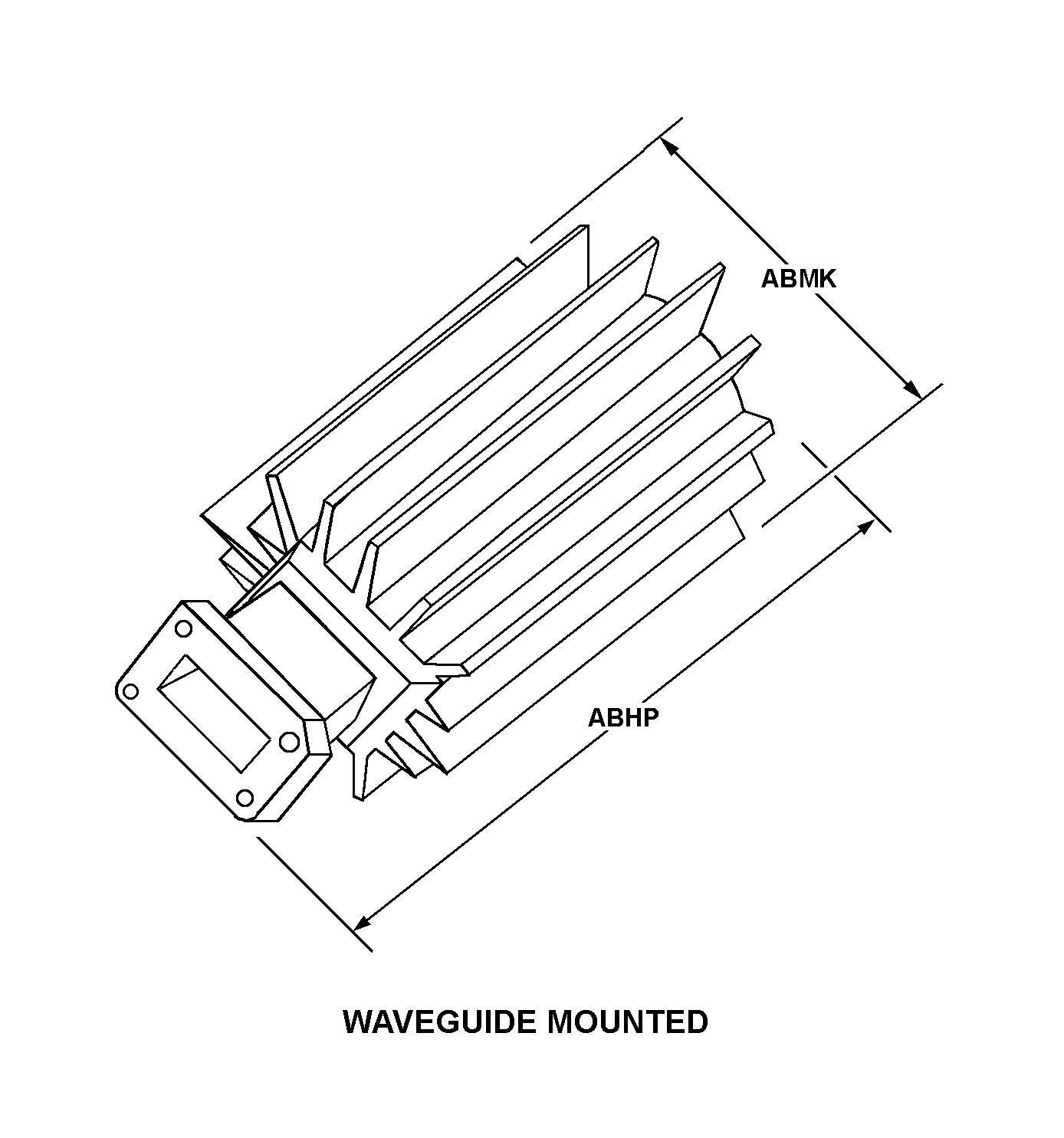

| STYLE DESIGNATOR | 19A WAVEGUIDE MOUNTED |
| OVERALL LENGTH | 13.750 INCHES MAXIMUM |
| OVERALL WIDTH | 4.400 INCHES MAXIMUM |
| FREQUENCY RANGE RATING | 4.750 TO 11.000 GIGAHERTZ |
| POWER RATING | 5.000 KILOWATTS PEAK AND 1.000 KILOWATTS AVERAGE |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 55.0 |
| IMPEDANCE RATING IN OHMS | NOT RATED |
| VOLTAGE STANDING WAVE RATIO | 1.20 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 4.750 TO 11.000 GIGAHERTZ |
| TERMINATION TYPE | COAXIAL LINE FLANGE AND WAVEGUIDE FLANGE |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
| III UNPACKAGED UNIT WEIGHT | 5.000 POUNDS |
Restrictions/Controls & Freight Information | NSN 5985-01-283-2490
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-283-2490
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
