NSN 5985-01-216-2013 FS77206C, FS-77206-C, 60173201
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-216-2013 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: FS77206C, FS-77206-C, 60173201, 601732-01, 3552600 , 5985-01-216-2013, 01-216-2013, 5985012162013, 012162013
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 SEP 1985 | 01-216-2013 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |

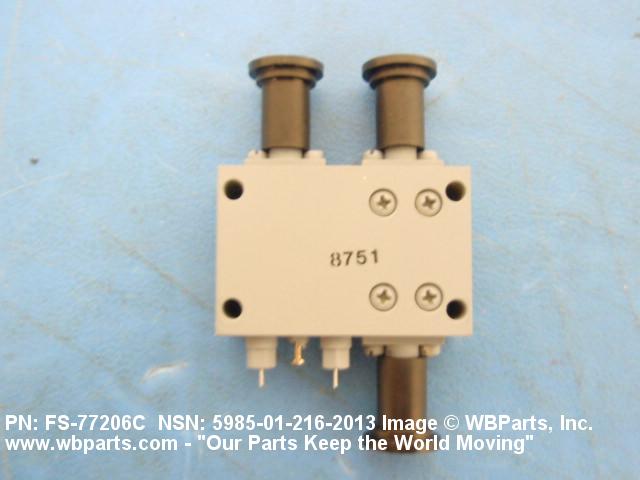

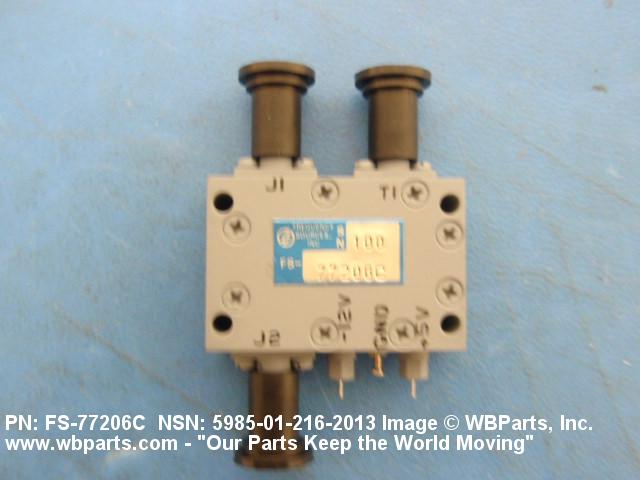

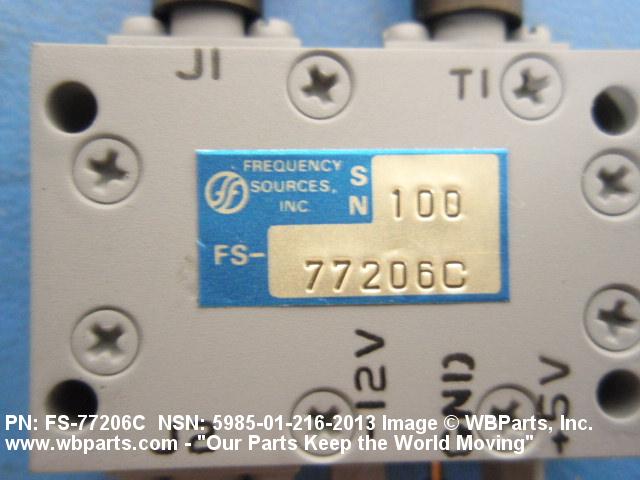

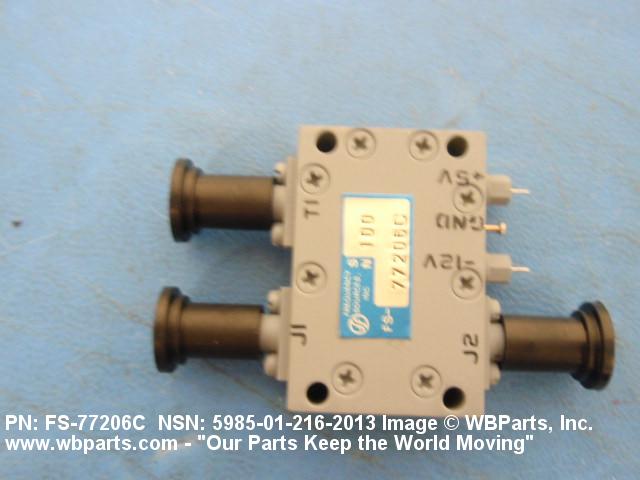

Drawings & Photos | NSN 5985-01-216-2013
Demand History | NSN 5985-01-216-2013
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-01-216-2013 | 2019-12-350 | 1 | US |
| 5985-01-216-2013 | 2017-01-29 | 2 | DIBBS |
| 5985-01-216-2013 | 2017-01-18 | 1 | United Kingdom |
| 5985-01-216-2013 | 2010-03-76 | 1 | United Kingdom |
| 5985-01-216-2013 | 2009-10-278 | 2 | DIBBS |
| 5985-01-216-2013 | 2009-09-246 | 1 | DIBBS |
| 5985-01-216-2013 | 2009-02-49 | 3 | DIBBS |
| 5985-01-216-2013 | 2009-02-34 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-216-2013
Technical Data | NSN 5985-01-216-2013
| Characteristic | Specifications |
|---|---|
| THROW QUANTITY | 1 |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| SWITCH TYPE | NONTRANSFER |
| TERMINAL TYPE AND QUANTITY | 1 TURRET AND 2 SOLDER STUD AND 3 RECEPTACLE, COAXIAL |
| POLE QUANTITY | 1 |
| SWITCHING TIME | 2.0 MICROSECONDS |
| OPERATING TEMP RANGE | -55.0 TO 85.0 DEG CELSIUS |
| OVERALL WIDTH | 0.500 INCHES NOMINAL |
| CONNECTOR END DESIGN | FEMALE |
| COUPLING POSITION QUANTITY | 2 |
| BODY STYLE | RECTANGULAR |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| SWITCH RETURN MECHANISM TYPE | FAIL-SAFE |
Restrictions/Controls & Freight Information | NSN 5985-01-216-2013
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-216-2013
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | E | The current standard price is an estimated price.
|
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
