NSN 5985-01-206-9445 185AC, 185BC, 01-206-9445
Product Details | WAVEGUIDE ADAPTER
5985-01-206-9445 An item designed to establish the necessary accommodations to connect a waveguide to a coaxial line, or to connect two or more terminated waveguides whose physical design does not normally allow connection.
Part Alternates: 185AC, 185BC, 5985-01-206-9445, 01-206-9445, 5985012069445, 012069445
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 24 APR 1985 | 01-206-9445 | 00186 ( ADAPTER, WAVEGUIDE ) |
Demand History | NSN 5985-01-206-9445
Part Number | Request Date | QTY | Origin |
---|---|---|---|
5985-01-206-9445 | 2014-11-04 | 17 | DIBBS |
5985-01-206-9445 | 2010-08-09 | 2 | DIBBS |
5985-01-206-9445 | 2007-03-26 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-206-9445
Related Products | NSN 5985-01-206-9445
Technical Data | NSN 5985-01-206-9445
Characteristic | Specifications |
---|---|
STYLE DESIGNATOR | D1 WAVEGUIDE TO WAVEGUIDE |
ADAPTER LENGTH | 4.750 INCHES NOMINAL |
CROSS-SECTIONAL SHAPE STYLE | A14 INTERNAL, ELLIPTICAL EXTERNAL, ELLIPTICAL |
WAVEGUIDE OUTSIDE WIDTH | 1.320 INCHES NOMINAL |
WAVEGUIDE OUTSIDE HEIGHT | 0.900 INCHES NOMINAL |

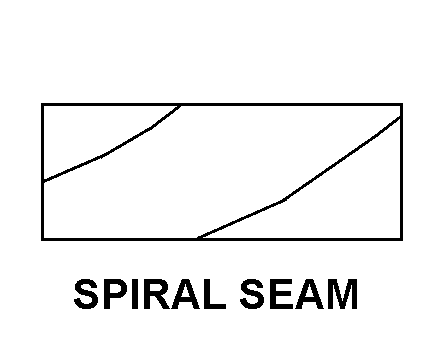

TUBING WALL CONSTRUCTION STYLE | J3 SPIRAL SEAM SINGLE TUBING SEGMENT |
MATERIAL | COPPER ALLOY ALL TUBING SEGMENT AND FLANGE |
FLANGE QUANTITY | 2 |
FLANGE STYLE | C3 CHOKE TYPE FIRST FLANGE C28 COVER TYPE SECOND FLANGE |
FLANGE INSIDE WIDTH | 0.896 INCHES MINIMUM AND 0.904 INCHES MAXIMUM FIRST FLANGE 1.003 INCHES MINIMUM SECOND FLANGE |
FLANGE INSIDE HEIGHT | 0.396 INCHES MINIMUM AND 0.404 INCHES MAXIMUM FIRST FLANGE 0.503 INCHES MINIMUM SECOND FLANGE |
FLANGE OUTSIDE WIDTH | 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM FIRST FLANGE 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM SECOND FLANGE |
FLANGE OUTSIDE HEIGHT | 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM FIRST FLANGE 1.610 INCHES MINIMUM AND 1.640 INCHES MAXIMUM SECOND FLANGE |
FLANGE INSIDE DIAMETER | 1.406 INCHES MINIMUM AND 1.437 INCHES MAXIMUM FIRST FLANGE |
FLANGE DEPTH | 0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM FIRST FLANGE 0.423 INCHES MINIMUM AND 0.453 INCHES MAXIMUM SECOND FLANGE |
FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE FIRST FLANGE ALL CONNECTION FACILITIES 4 UNTHREADED HOLE SECOND FLANGE ALL CONNECTION FACILITIES |
FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES MINIMUM SECOND FLANGE ALL CONNECTION FACILITIES |
THREAD SERIES DESIGNATOR | UNC FIRST FLANGE ALL CONNECTION FACILITIES |
NOMINAL THREAD SIZE | 0.164 INCHES FIRST FLANGE ALL CONNECTION FACILITIES |
THREAD CLASS | SB FIRST FLANGE ALL CONNECTION FACILITIES |
THREAD DIRECTION | RIGHT-HAND FIRST FLANGE ALL CONNECTION FACILITIES |
VOLTAGE STANDING WAVE RATIO | 1.17 |
SPECIAL FEATURES | FREQUENCY RANGE 8.5 TO 9.8 GHZ |
III FSC APPLICATION DATA | RADAR EQUIPMENT |
