NSN 5985-01-183-6512 JANTXV2N4033 , LE41302950001, LE413-0295-0001
Product Details | WAVEGUIDE SWITCH
5985-01-183-6512 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: JANTXV2N4033 , LE41302950001, LE413-0295-0001, MIL-PRF-19500/512 , MILPRF19500512, MIL-S-19500/512 , MILS19500512, 10133355 , 30C02500, 30C025001, 30C02500-1, 8507002108, 8507002-108 , 5985-01-183-6512, 01-183-6512, 5985011836512, 011836512
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JUL 1984 | 01-183-6512 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-183-6512
Demand History | NSN 5985-01-183-6512
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30C02500-1 | 2024-07-207 | 4 | DIBBS |
| LE413-0295-0001 | 2024-07-207 | 4 | DIBBS |
| 5985-01-183-6512 | 2018-03-79 | 4 | DIBBS |
| 5985-01-183-6512 | 2017-09-260 | 4 | DIBBS |
| 5985-01-183-6512 | 2017-01-08 | 5 | DIBBS |
| 5985-01-183-6512 | 2016-06-180 | 6 | DIBBS |
| 5985-01-183-6512 | 2016-05-133 | 2 | DIBBS |
| 5985-01-183-6512 | 2015-04-97 | 3 | DIBBS |
| 5985-01-183-6512 | 2013-11-324 | 4 | DIBBS |
| 5985-01-183-6512 | 2013-04-91 | 4 | DIBBS |
| 5985-01-183-6512 | 2010-02-36 | 1 | DIBBS |
| 5985-01-183-6512 | 2010-01-27 | 6 | DIBBS |
| 5985-01-183-6512 | 2010-01-04 | 3 | DIBBS |
| 5985-01-183-6512 | 2009-12-352 | 3 | DIBBS |
| 5985-01-183-6512 | 2009-03-79 | 1 | DIBBS |
| 5985-01-183-6512 | 2009-02-56 | 1 | DIBBS |
| 5985-01-183-6512 | 2009-01-06 | 3 | DIBBS |
| 5985-01-183-6512 | 2008-12-342 | 1 | DIBBS |
| 30C025001 | 2008-09-255 | 1 | US |
| 5985-01-183-6512 | 2007-05-143 | 3 | DIBBS |
Cross Reference | NSN 5985-01-183-6512
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30C02500 | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| 30C02500-1 | 50140 | K&L MICROWAVE, INC. |
| 30C02500-1 | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| LE413-0295-0001 | 28916 | ATLANTIC MICROWAVE CORPORATION DIV COBHAM ELECTRONIC SYSTEMS |
| LE413-0295-0001 | 43999 | BOEING COMPANY, THE DBA BOEING |
| LE413-0295-0001 | 54647 | MICROTECH, INC. |
| LE413-0295-0001 | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| LE413-0295-0001 | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-183-6512
Related Products | NSN 5985-01-183-6512
Technical Data | NSN 5985-01-183-6512
| Characteristic | Specifications |
|---|---|
| VOLTAGE STANDING WAVE RATIO | 1.25 SINGLE |
| INSERTION LOSS IN DECIBELS | 0.25 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 1.0 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 22.0 MINIMUM AND 30.0 MAXIMUM |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 3 RECTANGULAR FLANGE |
| SWITCHING TIME | 100.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | LATCHING |
| WAVEGUIDE FLANGE TYPE | CONTACT |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 THREADED HOLE |

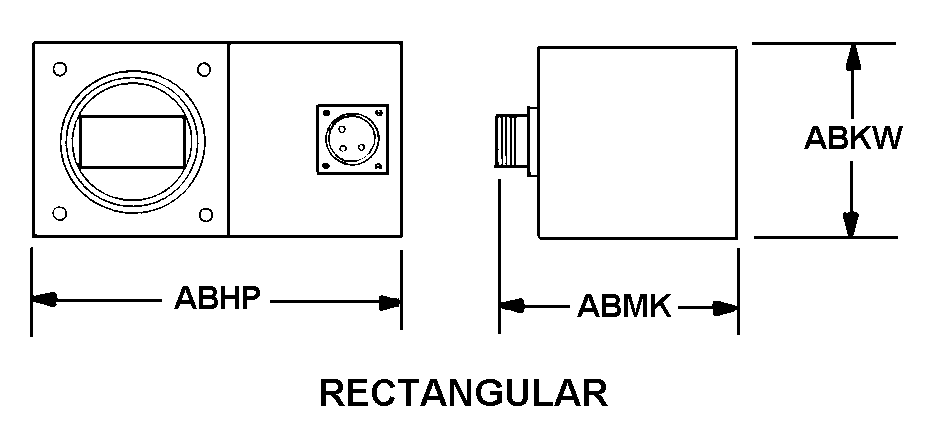

| BODY STYLE | 10C RECTANGULAR |
| OVERALL LENGTH | 2.375 INCHES NOMINAL |
| OVERALL HEIGHT | 5.190 INCHES MAXIMUM |
| OVERALL WIDTH | 3.380 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | PAINT BODY OUTSIDE SURFACES |
| THREAD SERIES DESIGNATOR | UNC FLANGE CONNECTION FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.138 INCHES FLANGE CONNECTION FACILITY HOLE |
| FEATURES PROVIDED | GROUNDED OFF CIRCUIT TERMINATION |
| SPECIAL FEATURES | LEFT HAND MOUNTED |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III OPERATING TEMP RANGE | -54.0 TO 95.0 DEG CELSIUS |
Restrictions/Controls & Freight Information | NSN 5985-01-183-6512
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063025 | SEMICONDUCTORS/DEVICES NOI ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | 3 | Electrostatic Sensitive Device (ESD), subject to damage caused by electrostatic discharge. (See DoD 4500.32-R, Volume 1, Appendix A, Section I for additional information on ESD devices). |
Management | NSN 5985-01-183-6512
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
