NSN 5985-01-183-6513 LE41302970001, LE413-0297-0001, 30C02700
Product Details | WAVEGUIDE SWITCH
5985-01-183-6513 An item specifically designed for mechanically or electronically positioning one or more waveguide sections so as to couple it or them to other sections in a waveguide system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).
Part Alternates: LE41302970001, LE413-0297-0001, 30C02700, 30C027001, 30C02700-1, 5985-01-183-6513, 01-183-6513, 5985011836513, 011836513
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 07 JUL 1984 | 01-183-6513 | 05118 ( SWITCH, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-01-183-6513
Demand History | NSN 5985-01-183-6513
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 30C02700-1 | 2024-06-156 | 2 | DIBBS |
| LE413-0297-0001 | 2024-06-156 | 2 | DIBBS |
| 30C02700-1 | 2022-12-355 | 2 | DIBBS |
| LE413-0297-0001 | 2022-12-355 | 2 | DIBBS |
| 30C02700-1 | 2020-12-345 | 1 | DIBBS |
| LE413-0297-0001 | 2020-12-345 | 1 | DIBBS |
| 30C02700-1 | 2020-11-307 | 1 | DIBBS |
| LE413-0297-0001 | 2020-11-307 | 1 | DIBBS |
| 30C02700-1 | 2020-05-147 | 1 | DIBBS |
| LE413-0297-0001 | 2020-05-147 | 1 | DIBBS |
| 30C02700-1 | 2020-05-135 | 1 | DIBBS |
| LE413-0297-0001 | 2020-05-135 | 1 | DIBBS |
| 30C02700-1 | 2019-03-63 | 2 | DIBBS |
| LE413-0297-0001 | 2019-03-63 | 2 | DIBBS |
| 30C02700-1 | 2019-02-52 | 2 | DIBBS |
| LE413-0297-0001 | 2019-02-52 | 2 | DIBBS |
| 5985-01-183-6513 | 2018-11-330 | 2 | DIBBS |
| 5985-01-183-6513 | 2018-11-319 | 2 | DIBBS |
| 5985-01-183-6513 | 2018-11-305 | 1 | DIBBS |
| 5985-01-183-6513 | 2018-09-270 | 2 | DIBBS |
| 5985-01-183-6513 | 2018-04-116 | 2 | DIBBS |
| 5985-01-183-6513 | 2018-01-03 | 1 | DIBBS |
| 5985-01-183-6513 | 2015-03-68 | 2 | DIBBS |
| 5985-01-183-6513 | 2010-10-286 | 3 | DIBBS |
| 5985-01-183-6513 | 2008-12-340 | 5 | DIBBS |
| 5985-01-183-6513 | 2008-09-249 | 4 | DIBBS |
| 5985-01-183-6513 | 2008-05-140 | 2 | DIBBS |
| 5985-01-183-6513 | 2007-06-163 | 3 | DIBBS |
Cross Reference | NSN 5985-01-183-6513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30C02700 | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| 30C02700-1 | 50140 | K&L MICROWAVE, INC. |
| 30C02700-1 | 82152 | L-3 COMMUNICATIONS CORPORATION DBA DATRON ADVANCED TECHNOLOGIES |
| LE413-0297-0001 | 28916 | ATLANTIC MICROWAVE CORPORATION DIV COBHAM ELECTRONIC SYSTEMS |
| LE413-0297-0001 | 43999 | BOEING COMPANY, THE DBA BOEING |
| LE413-0297-0001 | 54647 | MICROTECH, INC. |
| LE413-0297-0001 | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| LE413-0297-0001 | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-183-6513
Related Products | NSN 5985-01-183-6513
Technical Data | NSN 5985-01-183-6513
| Characteristic | Specifications |
|---|---|
| INSERTION LOSS IN DECIBELS | 0.25 SINGLE |
| MINIMUM CROSSTALK RATING IN DECIBELS | 60.0 SINGLE |
| ACTUATOR OPERATING METHOD | RELAY |
| ACTUATOR CURRENT TYPE AND RATING IN AMPS | 1.0 DC NOMINAL |
| ACTUATOR VOLTAGE IN VOLTS | 22.0 MINIMUM AND 30.0 MAXIMUM |
| SWITCH TYPE | NONTRANSFER |
| POLE QUANTITY | 1 |
| THROW QUANTITY | 2 |
| COUPLING POSITION QUANTITY | 1 |
| TERMINAL TYPE AND QUANTITY | 1 CONNECTOR, RECEPTACLE AND 3 RECTANGULAR FLANGE |
| SWITCHING TIME | 100.0 MILLISECONDS |
| SWITCH RETURN MECHANISM TYPE | LATCHING |
| WAVEGUIDE FLANGE TYPE | CONTACT |
| FLANGE CONNECTING FACILITY AND QUANTITY | 8 THREADED HOLE |

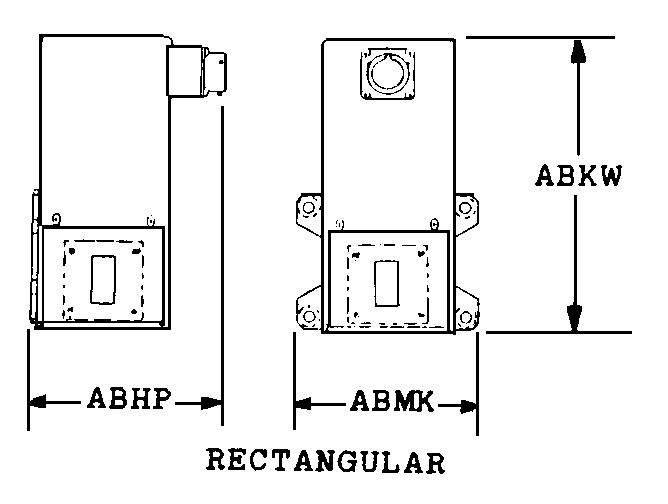

| BODY STYLE | 9C RECTANGULAR |
| OVERALL LENGTH | 2.980 INCHES NOMINAL |
| OVERALL HEIGHT | 4.340 INCHES NOMINAL |
| OVERALL WIDTH | 1.875 INCHES NOMINAL |
| MATERIAL | ALUMINUM ALLOY BODY |
| SURFACE TREATMENT | CHROMATE BODY ALL SURFACES |
| THREAD SERIES DESIGNATOR | UNC FLANGE CONNECTION FACILITY HOLE |
| NOMINAL THREAD SIZE | 0.138 INCHES FLANGE CONNECTION FACILITY HOLE |
| SPECIAL FEATURES | RIGHT HAND MOUNTED |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| III OPERATING TEMP RANGE | -54.0 TO 95.0 DEG CELSIUS |
| III UNPACKAGED UNIT WEIGHT | 1.300 POUNDS |
Restrictions/Controls & Freight Information | NSN 5985-01-183-6513
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061300 | CIRCUIT BREAKER/SWITCH NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-183-6513
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
