NSN 5985-01-175-5751 DM NI70-1 , DMN1701, DMN1-70-1
Product Details | ANTENNA
5985-01-175-5751 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: DM NI70-1 , DMN1701, DMN1-70-1, DMNI701, DMNI70-1, 704A35335002, 704A35-335-002, 706A35335002, 706A35-335-002, 5985-01-175-5751, 01-175-5751, 5985011755751, 011755751
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 03 APR 1984 | 01-175-5751 | 00749 ( ANTENNA ) |

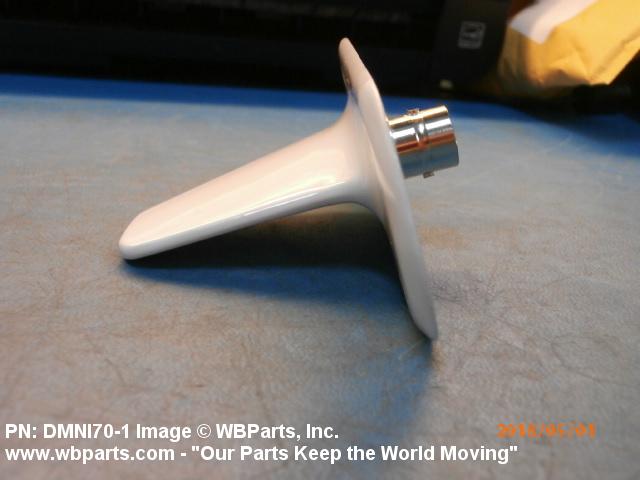

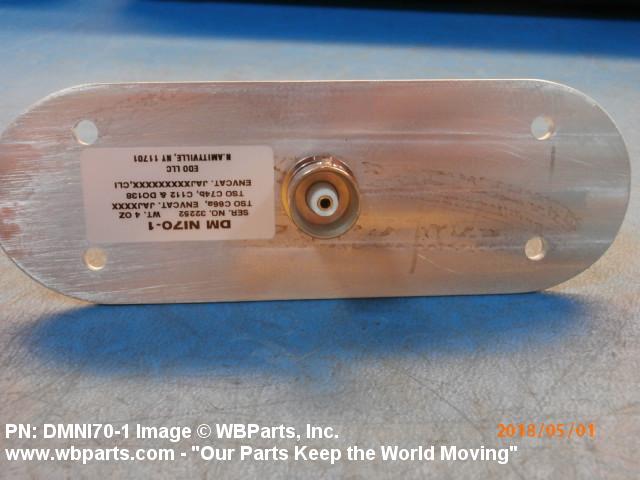

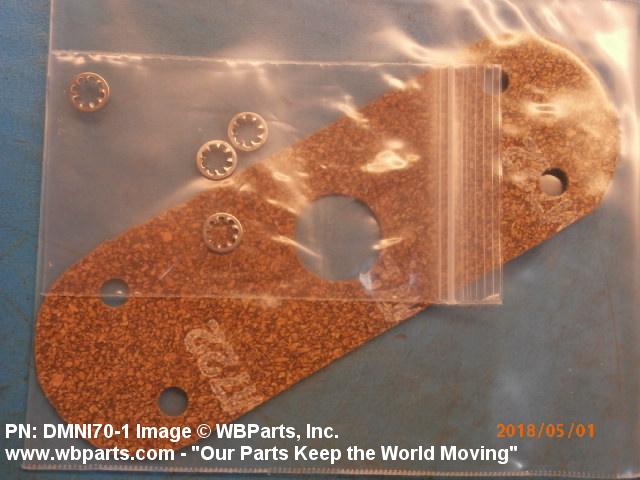

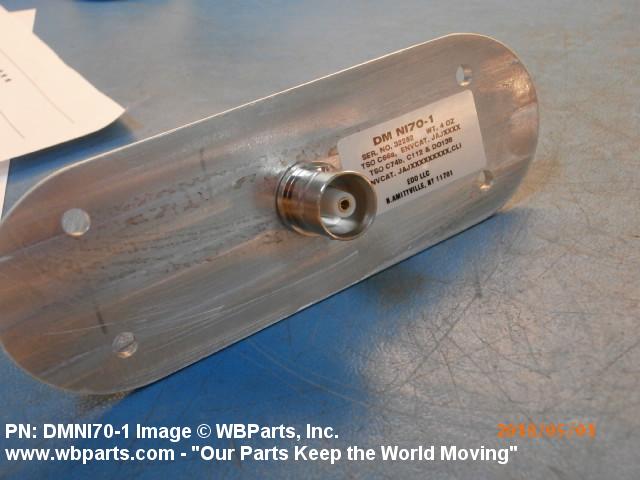

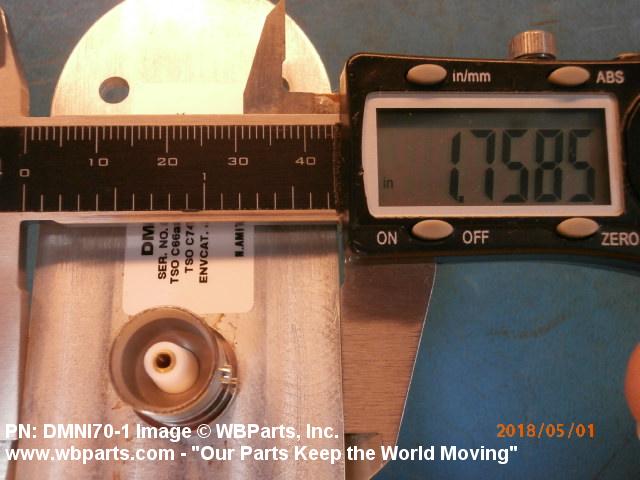

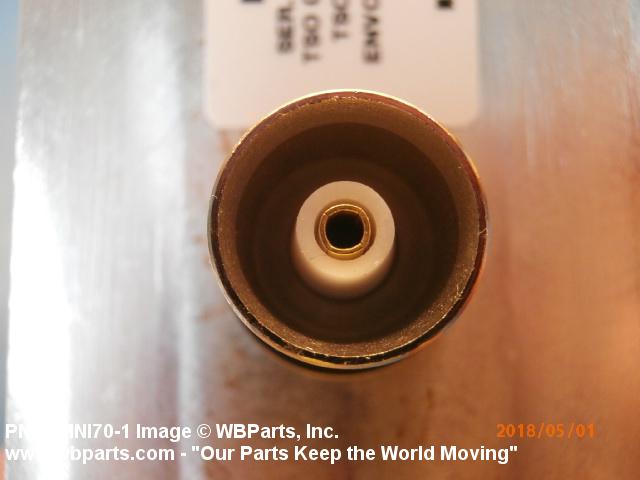

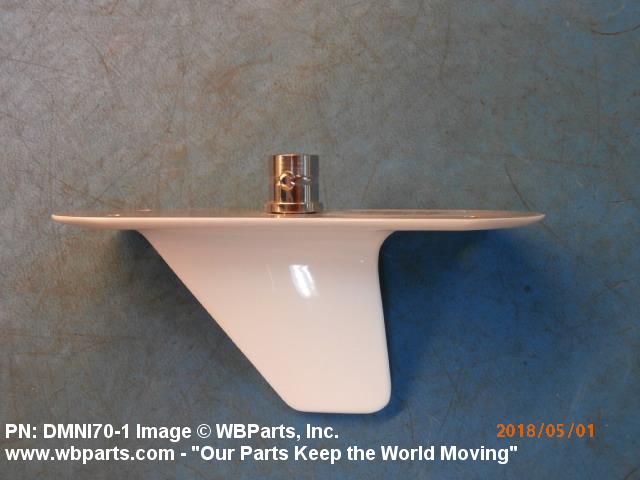

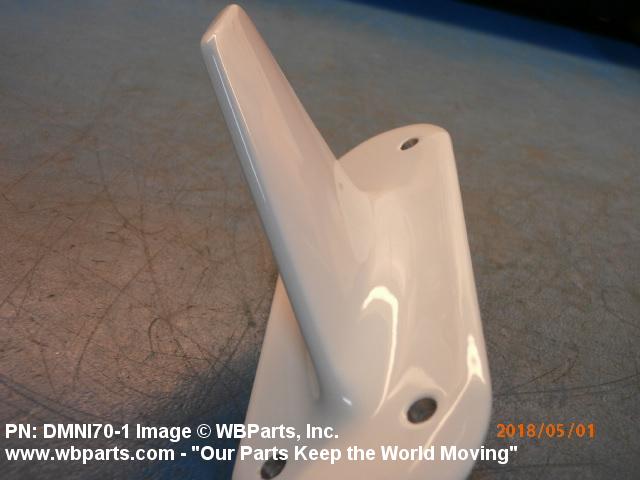

Drawings & Photos | NSN 5985-01-175-5751
Demand History | NSN 5985-01-175-5751
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DMN1701 | 2024-03-86 | 3 | Lebanon |
| DMN1701 | 2024-02-43 | 2 | PH |
| DMNI701 | 2018-02-54 | 8 | Indonesia |
| DMN1701 | 2017-09-271 | 1 | Malaysia |
| 704A35335002 | 2017-08-233 | 8 | Indonesia |
| 5985-01-175-5751 | 2017-07-184 | 1 | Malaysia |
| DMN1701 | 2017-06-180 | 1 | Malaysia |
| 5985-01-175-5751 | 2017-06-171 | 1 | Malaysia |
| 5985-01-175-5751 | 2017-06-166 | 1 | MY |
| DMN1701 | 2017-06-166 | 1 | Malaysia |
| DMN1701 | 2017-06-166 | 1 | Malaysia |
| DMNI701 | 2016-06-168 | 2 | us |
| DMNI701 | 2016-06-168 | 5 | us |
| DMN1701 | 2012-08-244 | 1 | CL |
| DMNI70-1 | 2012-04-115 | 3 | |
| 5985011755751 | 2011-12-343 | 1 | US |
| DMN1701 | 2011-07-188 | 1 | us |
| DMNI701 | 2011-06-159 | 3 | BR |
| DMN1701 | 2011-04-101 | 12 | Brazil |
| DMN1701 | 2009-11-327 | 1 | United Arab Emirates |
| DMN1701 | 2007-12-353 | 1 | Italy |
Cross Reference | NSN 5985-01-175-5751
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-175-5751
Technical Data | NSN 5985-01-175-5751
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | BLADE SINGLE ANTENNA ELEMENT |
| ELECTROMAGNETIC POLARIZATION TYPE | VERTICAL SINGLE ANTENNA ELEMENT |
| RADIATION PATTERN | OMNIDIRECTIONAL SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 0.950 GIGAHERTZ MINIMUM AND 1.220 GIGAHERTZ MAXIMUM SINGLE ANTENNA ELEMENT |
| POWER RATING | 2.000 KILOWATTS PEAK SINGLE ANTENNA ELEMENT |
| CHARACTERISTIC IMPEDANCE IN OHMS | 50.0 SINGLE ANTENNA ELEMENT |

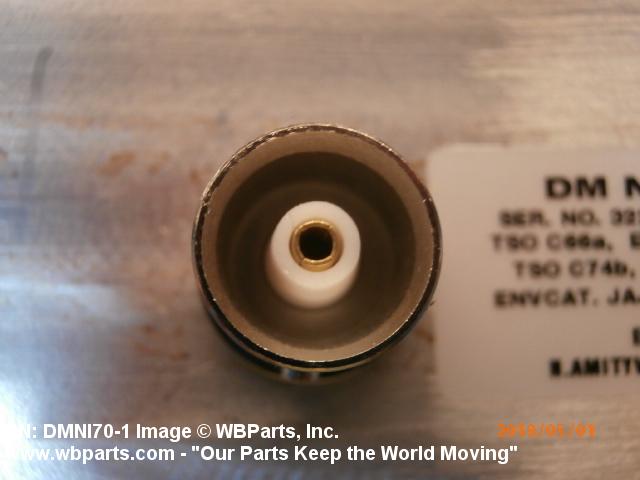

| TERMINAL TYPE | RECEPTACLE, COAXIAL SINGLE ANTENNA ELEMENT |
| COAXIAL CONNECTOR SERIES DESIGNATION | C SINGLE ANTENNA ELEMENT |
| CONNECTOR END DESIGN | SOCKET SINGLE ANTENNA ELEMENT |

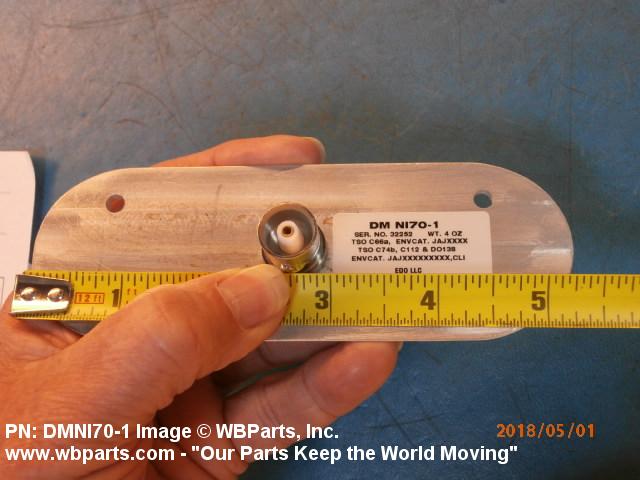

| OVERALL LENGTH | 6.250 INCHES NOMINAL |

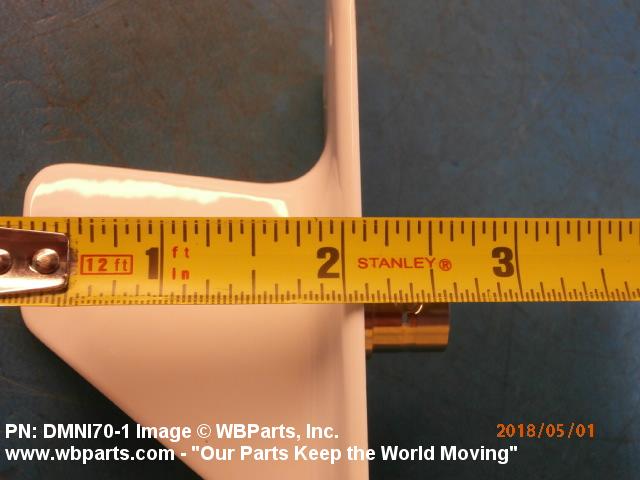

| OVERALL HEIGHT | 2.300 INCHES NOMINAL |
| OVERALL WIDTH | 2.700 INCHES NOMINAL |

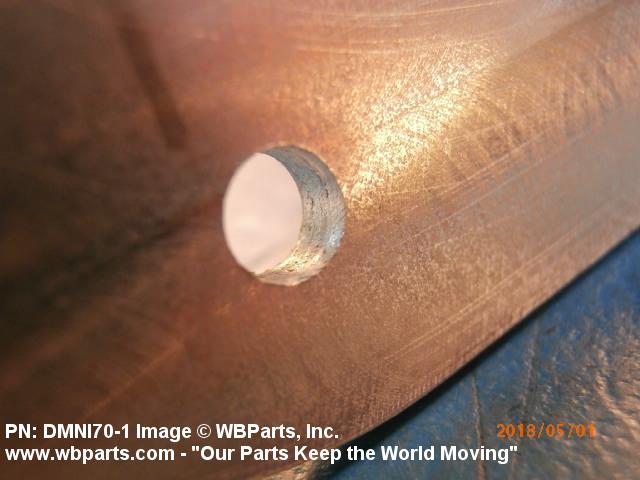

| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE QUANTITY | 4 |
Restrictions/Controls & Freight Information | NSN 5985-01-175-5751
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
