NSN 5985-01-142-8188 M15370/3-020, M153703020, MIL-C-15370/3

Product Details | DIRECTIONAL COUPLER

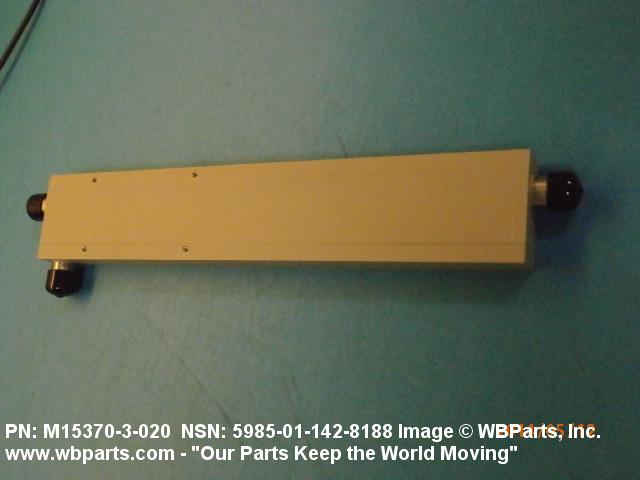

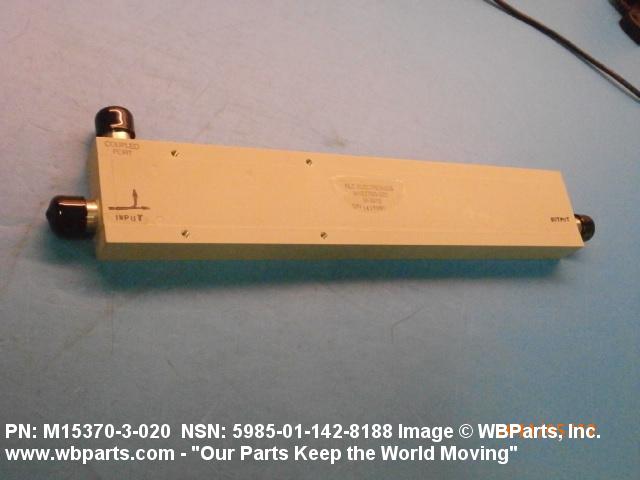

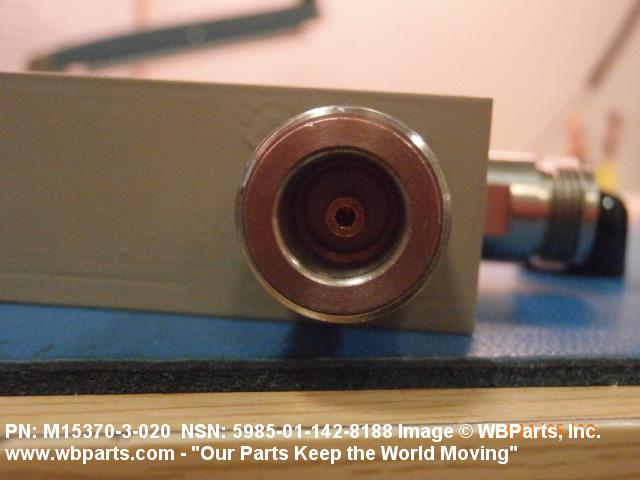

5985-01-142-8188 An item specifically designed to be inserted into a transmission line, waveguide or coaxial transmission line to provide a suitable test outlet. The test signal is attenuated to a predetermined value.

Part Alternates: M15370/3-020, M153703020, MIL-C-15370/3, MILC153703, MIL-DTL-15370/E, MILDTL15370E, 5985-01-142-8188, 01-142-8188, 5985011428188, 011428188

Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
59	20 NOV 1982	01-142-8188	00384 ( COUPLER, DIRECTIONAL )

Drawings & Photos | NSN 5985-01-142-8188

Part Number	Request Date	QTY	Origin
5985-01-142-8188	2024-10-276	37	DIBBS
5985-01-142-8188	2021-02-46	26	DIBBS
5985-01-142-8188	2020-03-80	31	GU
5985-01-142-8188	2020-03-77	31	DIBBS
5985-01-142-8188	2017-12-361	1	US
5985-01-142-8188	2017-05-129	1	US
5985-01-142-8188	2014-03-78	1	United States
5985-01-142-8188	2013-03-64	1	United States
5985-01-142-8188	2012-12-346	43	DIBBS
5985-01-142-8188	2012-12-338	2	US
5985-01-142-8188	2012-09-270	50	DIBBS
5985-01-142-8188	2012-03-72	5	DIBBS
5985-01-142-8188	2012-02-58	5	DIBBS
5985-01-142-8188	2011-11-311	20	DIBBS
5985-01-142-8188	2011-11-306	20	DIBBS
5985-01-142-8188	2011-09-251	20	DIBBS
5985-01-142-8188	2009-06-154	14	DIBBS
5985-01-142-8188	2009-04-118	1	US
5985-01-142-8188	2008-11-331	3	DIBBS
5985-01-142-8188	2008-11-331	14	DIBBS
5985-01-142-8188	2008-10-305	13	DIBBS
5985-01-142-8188	2008-09-248	2	DIBBS

Cross Reference | NSN 5985-01-142-8188

Part Number	Cage Code	Manufacturer
M15370/3-020	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-C-15370/3	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-DTL-15370/E	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5985-01-142-8188

Compare

Related Products | NSN 5985-01-142-8188

5985-01-142-8627, 5985-01-142-8643, 5985-01-142-8735, 5985-01-142-9046, 5985-01-142-9047

Technical Data | NSN 5985-01-142-8188

Characteristic	Specifications
UNIT TYPE	COAXIAL LINE OR TRANSMISSION LINE
RADIO FREQUENCY RATING	240.0 MEGAHERTZ MINIMUM AND 500.0 MEGAHERTZ MAXIMUM
VOLTAGE STANDING WAVE RATIO AT REFERENCE FREQUENCY	1.2 TO 1 AT 240 TO 500 MHZ
DESIGN TYPE	BIDIRECTIONAL
POWER LOSS IN DECIBELS	0.2

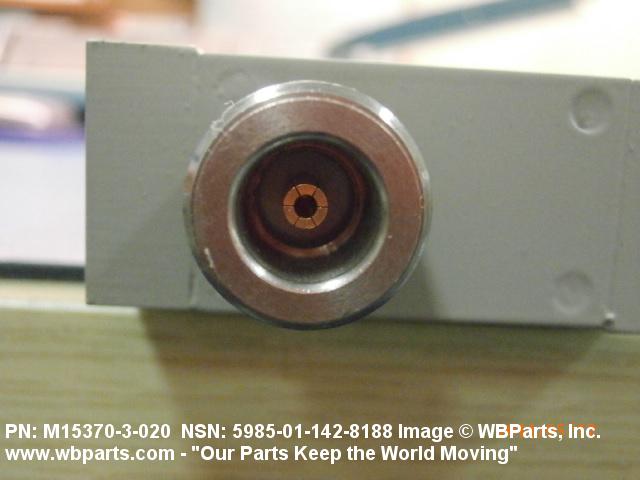

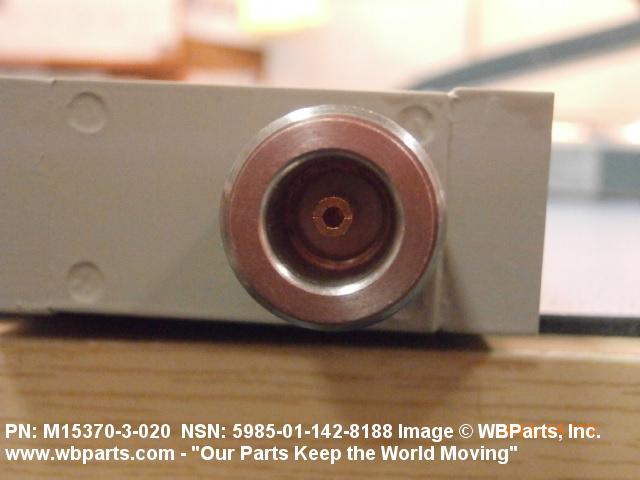

TERMINAL FITTING NAME	FEMALE CONNECTOR
TERMINAL FITTING CONTROLLING AGENCY	DEPARTMENT OF DEFENSE
TERMINAL FITTING IDENTIFYING NUMBER	TYPE N

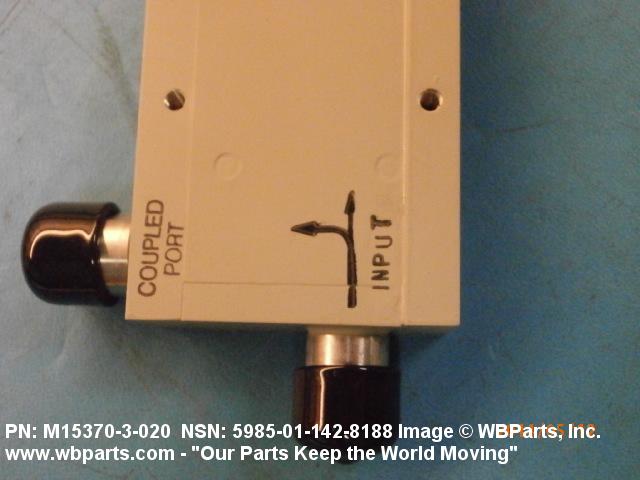

TERMINAL FITTING USAGE DESIGN	MAIN LINE AND SECONDARY LINE

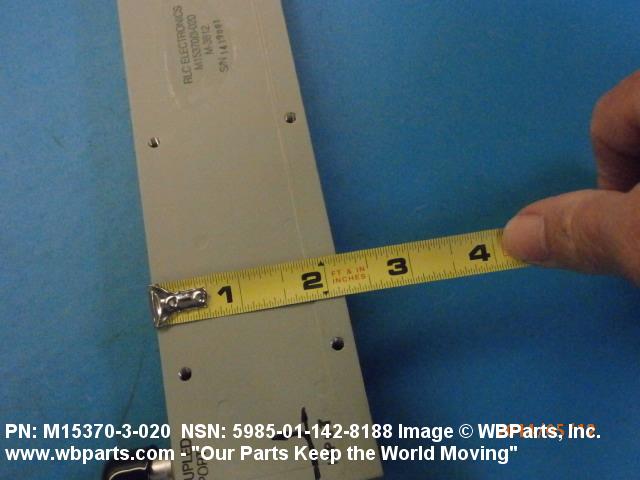

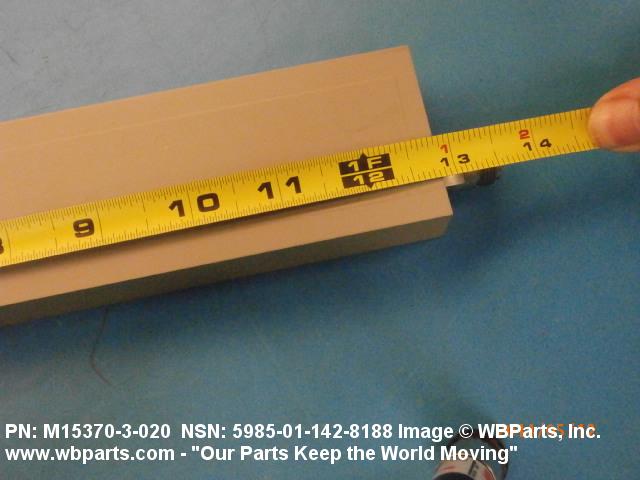

OVERALL LENGTH	13.580 INCHES NOMINAL
OVERALL WIDTH	2.880 INCHES NOMINAL

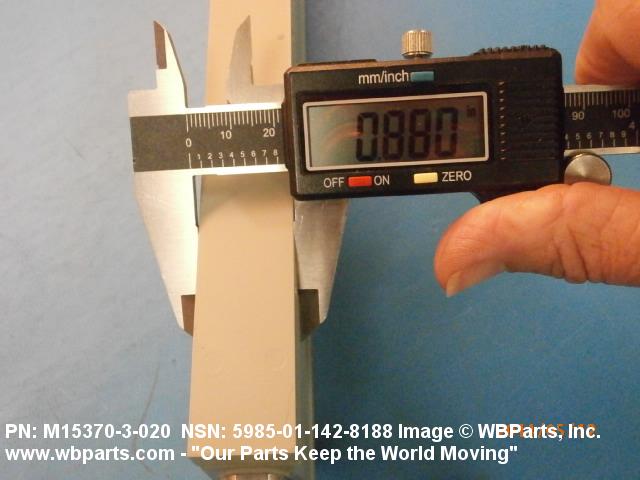

OVERALL HEIGHT	0.880 INCHES NOMINAL
TEST DATA DOCUMENT	81349-MIL-C-15370 SPECIFICATION
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-C-15370/3
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M15370/3-020
