NSN 5985-01-092-8858 8001093, 800109-3, 8438S322
Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-092-8858 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 8001093, 800109-3, 8438S322, 8438-S322, 5985-01-092-8858, 01-092-8858, 5985010928858, 010928858
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 APR 1980 | 01-092-8858 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-092-8858
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-092-8858
Technical Data | NSN 5985-01-092-8858
| Characteristic | Specifications |
|---|---|
| SWITCH TYPE | TRANSFER |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 1.0 MILLISECONDS |

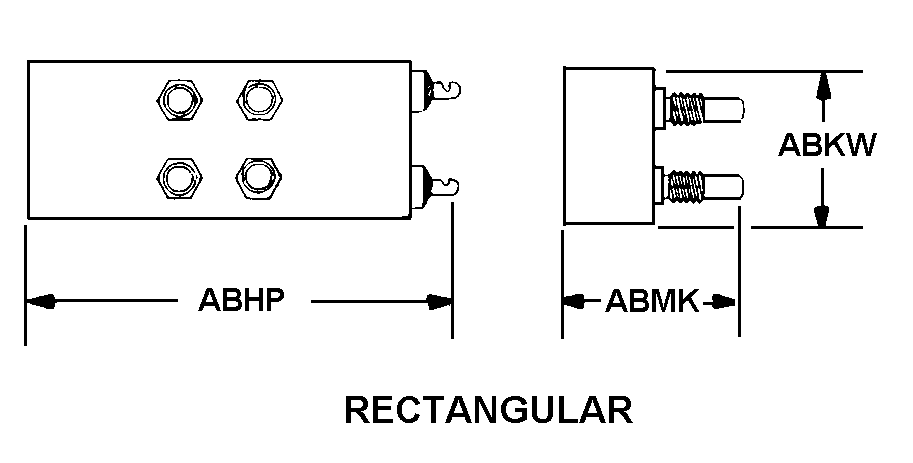

| BODY STYLE | 30B RECTANGULAR |
| OVERALL LENGTH | 1.800 INCHES NOMINAL |
| OVERALL HEIGHT | 0.480 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| SPECIAL FEATURES | CLASSIFIED FREQUENCY PER AMECOM SPECIFICATION C9996 B3P5950 TO B4P150 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | DIFFERENTIATED BY REPARABLE PTS |
| MANUFACTURERS CODE | 92755 |
| MFR SOURCE CONTROLLING REFERENCE | 800109-3 |
| MANUFACTURERS CODE | 96341 |
| DESIGN CONTROL REFERENCE | 8438-S322 |
Restrictions/Controls & Freight Information | NSN 5985-01-092-8858
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062680 | PLATES SWITCH/OUTLET SUB1 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | TG | Warner-Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
