Product Details | RADIO FREQUENCY TRANSMISSION LINE SWITCH
5985-01-092-8859 An item specifically designed for mechanically or electronically positioning one or more radio frequency transmission line sections so as to couple it or them to other sections in a radio frequency transmission line system. The switching function may be operated by a manual actuator, an electromechanical actuator or by means of an arrangement of semiconductors and passive circuit devices. Excludes RELAY, (as modified).202593000005985000000
Part Alternates: 8001181, 800118-1, 8438S325, 8438-S325, 5985-01-092-8859, 01-092-8859, 5985010928859, 010928859
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 05 APR 1980 | 01-092-8859 | 05298 ( SWITCH, RADIO FREQUENCY TRANSMISSION LINE ) |
Drawings & Photos | NSN 5985-01-092-8859
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-092-8859
Technical Data | NSN 5985-01-092-8859
| Characteristic | Specifications |
|---|---|
| SWITCH TYPE | TRANSFER |
| COAXIAL CONNECTOR SERIES DESIGNATION | SMA |
| CONNECTOR END DESIGN | FEMALE |
| SWITCHING TIME | 1.0 MILLISECONDS |

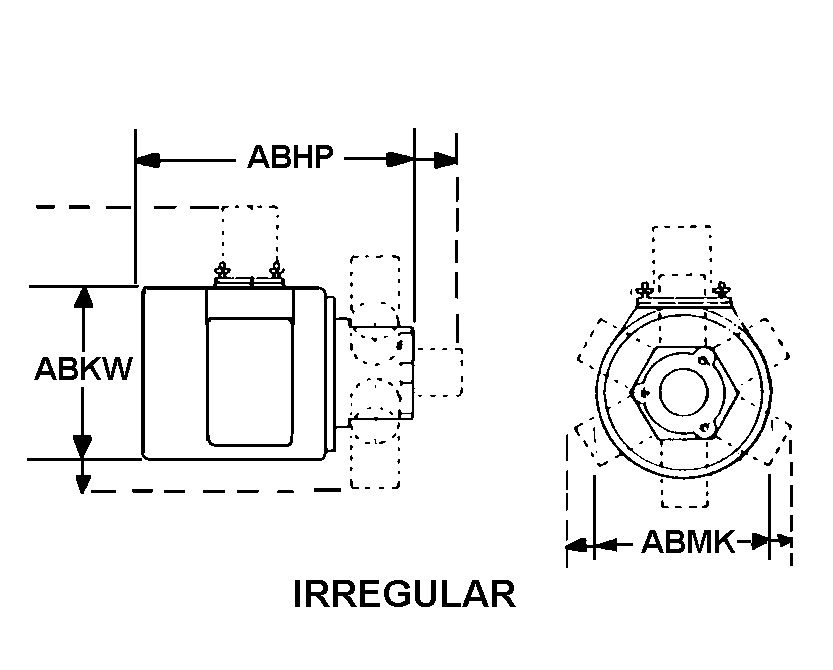

| BODY STYLE | 1B IRREGULAR |
| OVERALL LENGTH | 1.250 INCHES NOMINAL |
| OVERALL HEIGHT | 2.260 INCHES NOMINAL |
| SPECIAL FEATURES | CLASSIFIED FREQUENCY PER AMECOM SPECIFICATION C9996 B3M100 TO B3P2150 |
| REFERENCE NUMBER DIFFERENTIATING CHARACTERISTICS | DIFFERENTIATED BY REPARABLE PTS |
| MANUFACTURERS CODE | 92755 |
| MFR SOURCE CONTROLLING REFERENCE | 800118-1 |
| MANUFACTURERS CODE | 96341 |
| DESIGN CONTROL REFERENCE | 8438-S325 |
