NSN 5985-01-078-8574 399274, 01-078-8574, 010788574
Product Details | WAVEGUIDE COUPLING
5985-01-078-8574 A device specifically designed to conveniently couple and lock together mating surfaces of two adjacent sections of a waveguide.
Part Alternates: 399274, 5985-01-078-8574, 01-078-8574, 5985010788574, 010788574
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 20 JUN 1979 | 01-078-8574 | 02439 ( COUPLING, WAVEGUIDE ) |

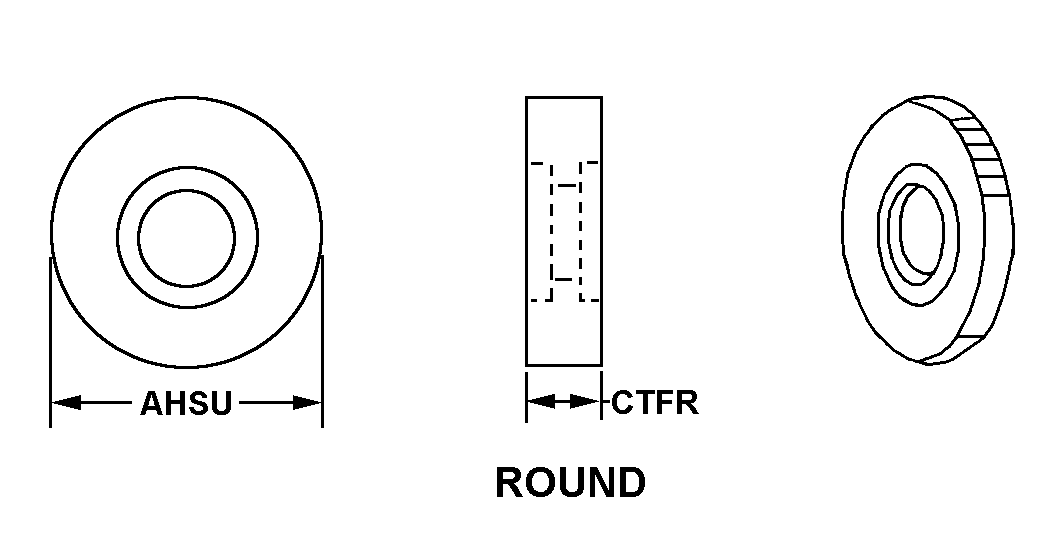

Drawings & Photos | NSN 5985-01-078-8574
Cross Reference | NSN 5985-01-078-8574
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 399274 | 16733 | RADIO FREQUENCY SYSTEMS INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-01-078-8574
Technical Data | NSN 5985-01-078-8574
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | F1 ROUND |
| COUPLING OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| COUPLING OVERALL DEPTH | 3.500 INCHES NOMINAL |
| MATERIAL | ALUMINUM SINGLE FLANGE |
| (NON-CORE DATA) MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-200 FED SPEC SINGLE MATERIAL RESPONSE SINGLE TUBING SEGMENT |
| MANUFACTURERS CODE | 16733 |
| DESIGN CONTROL REFERENCE | 399274 |
Restrictions/Controls & Freight Information | NSN 5985-01-078-8574
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
