NSN 5985-00-569-5849 SMA778244, SM-A-778244, SMA7782441
Product Details | WAVEGUIDE COUPLING

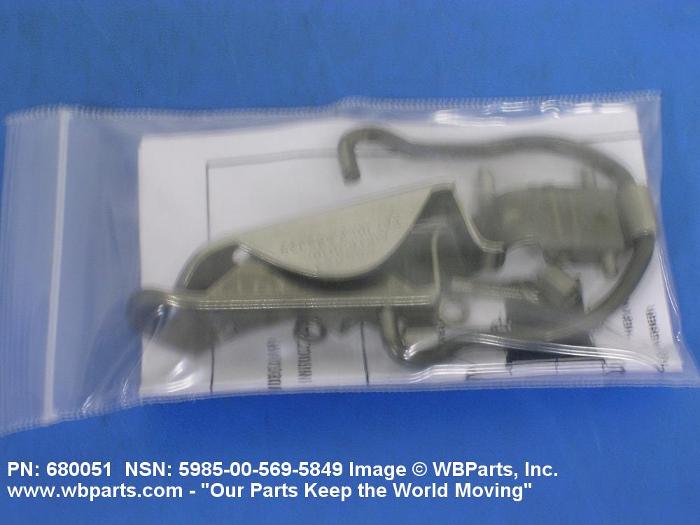

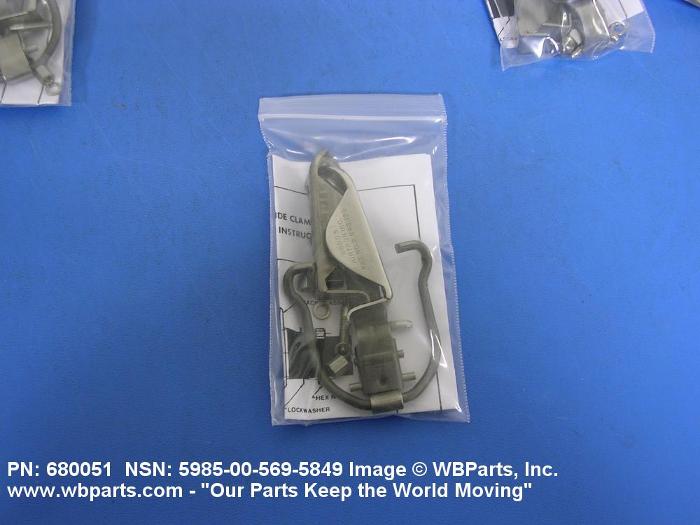

5985-00-569-5849 A device specifically designed to conveniently couple and lock together mating surfaces of two adjacent sections of a waveguide.
Part Alternates: SMA778244, SM-A-778244, SMA7782441, SM-A-778244-1, G230901, G4000801, G400080-1, 1811265, 272216198012, 352250017874, 48110, 680051, 680051H, 8531063, 5985-00-569-5849, 00-569-5849, 5985005695849, 005695849
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-569-5849 | 02439 ( COUPLING, WAVEGUIDE ) |
Drawings & Photos | NSN 5985-00-569-5849
Demand History | NSN 5985-00-569-5849
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 48110 | 2017-07-186 | 15 | CL |
| 5985-00-569-5849 | 2009-01-21 | 26 | DIBBS |
| 5985-00-569-5849 | 2008-11-306 | 1 | DIBBS |
| 5985-00-569-5849 | 2008-08-232 | 32 | DIBBS |
| 5985-00-569-5849 | 2008-07-196 | 2 | United States |
| 5985-00-569-5849 | 2008-01-03 | 103 | DIBBS |
| 5985-00-569-5849 | 2007-04-95 | 75 | DIBBS |
| 5985-00-569-5849 | 2007-02-53 | 37 | DIBBS |
Cross Reference | NSN 5985-00-569-5849
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1811265 | 03956 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NAVAL AND MARINE SYSTEMS |
| 272216198012 | D9645 | THALES DEFENCE & SECURITY SYSTEMSGMBH |
| 352250017874 | H0203 | THALES NEDERLAND B.V. DBA THALES LAND & JOINT SYSTEMS |
| 48110 | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| 48110 | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
| 680051 | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| 680051 | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
| 680051 | KD4N7 | MINISTRY OF DEFENCE AIR DEFENCE AIR TRAFFIC SYSTEMS IPT ADATS IPT |
| 680051H | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| 680051H | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
| 8531063 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| G230901 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| G400080-1 | 24930 | EXELIS INC. DBA RADAR, RECONNAISSANCE & UNDERSEA |
| SM-A-778244 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
| SM-A-778244-1 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-569-5849
Related Products | NSN 5985-00-569-5849
Technical Data | NSN 5985-00-569-5849
| Characteristic | Specifications |
|---|---|

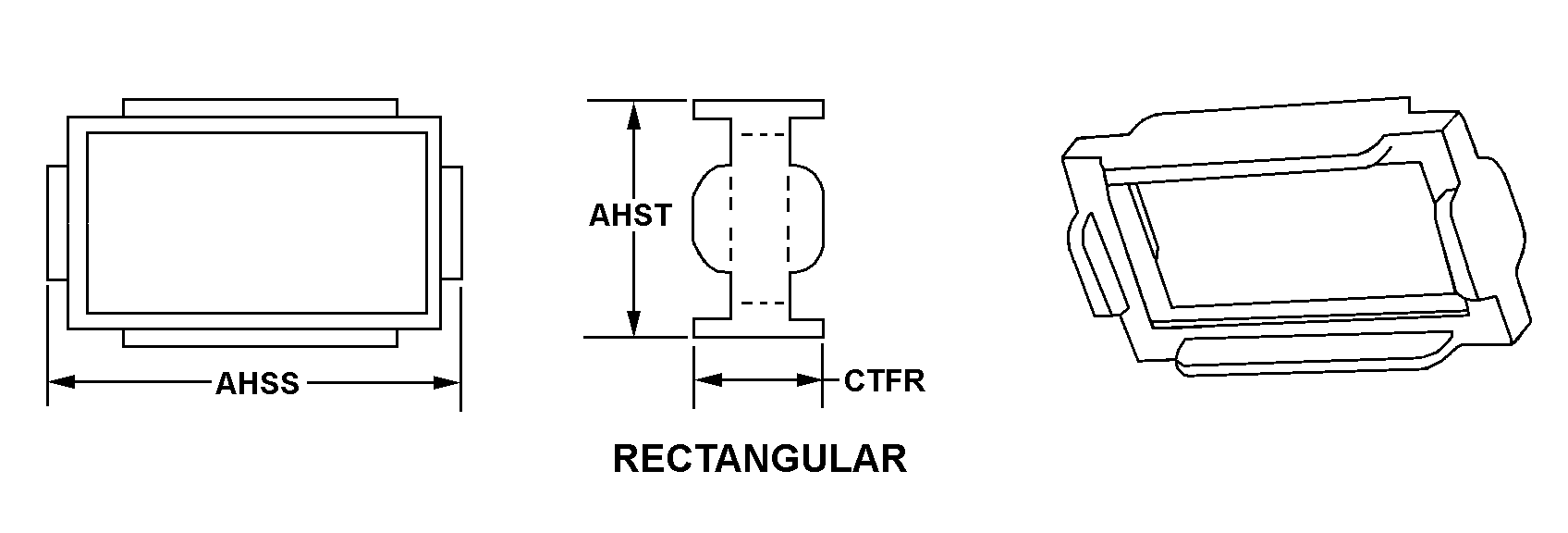

| STYLE DESIGNATOR | F3 RECTANGULAR |
