NSN 5985-01-032-4025 SMF720409, SM-F-720409, 01-032-4025
Product Details | WAVEGUIDE ASSEMBLY
5985-01-032-4025 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: SMF720409, SM-F-720409, 5985-01-032-4025, 01-032-4025, 5985010324025, 010324025
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 1976 | 01-032-4025 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-01-032-4025
Cross Reference | NSN 5985-01-032-4025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-F-720409 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-032-4025
Related Products | NSN 5985-01-032-4025
Technical Data | NSN 5985-01-032-4025
| Characteristic | Specifications |
|---|---|

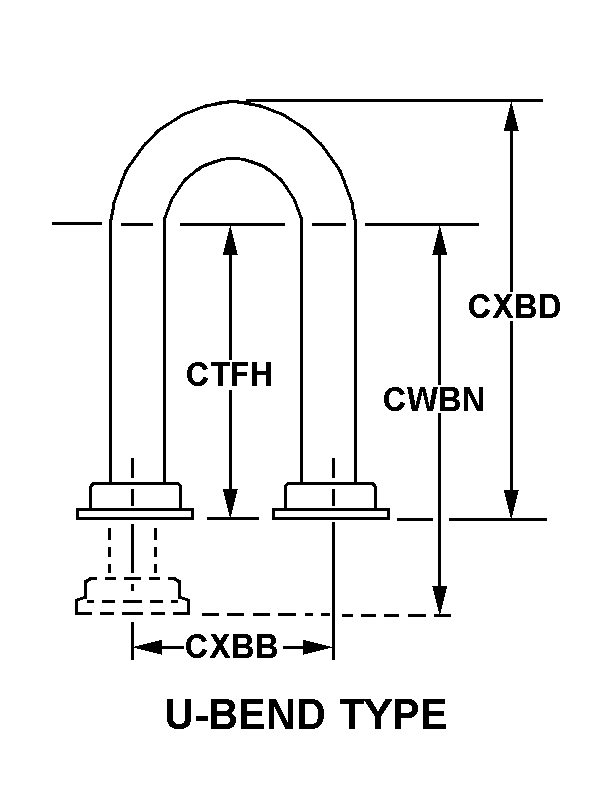

| STYLE DESIGNATOR | B6 U-BEND TYPE |
| WAVEGUIDE LEG LENGTH | 2.250 INCHES NOMINAL |
| WAVEGUIDE LONGER LEG LENGTH | 19.250 INCHES NOMINAL |
| WAVEGUIDE CENTER TO CENTER DISTANCE | 11.000 INCHES NOMINAL |
| WAVEGUIDE HEIGHT | 20.750 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.500 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 1.372 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.622 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.750 INCHES NOMINAL |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |

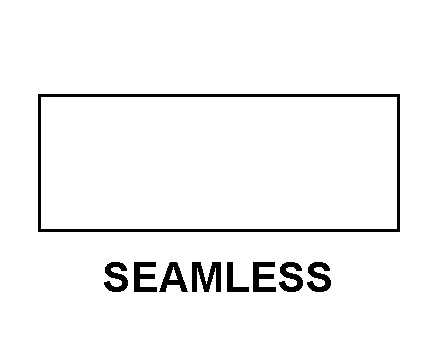

| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| BEND ANGLE IN DEG | 90.0 FIRST BEND H-PLANE 90.0 SECOND BEND H-PLANE |
| MATERIAL | COPPER ALLOY ALL FLANGE |
| SURFACE TREATMENT | CHROMATE ALL FLANGE INSIDE SURFACES ENAMEL ALL FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |

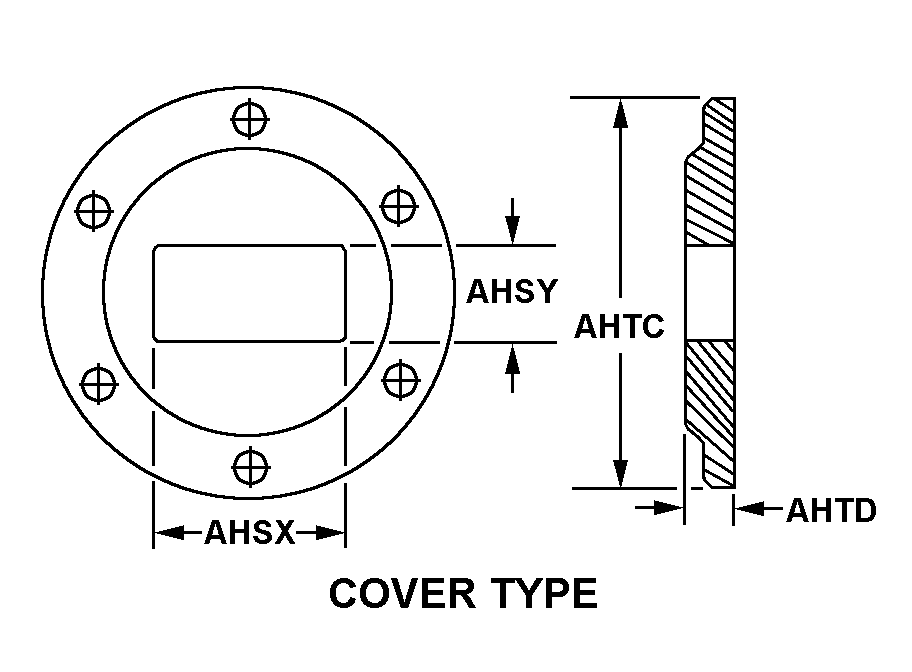

| FLANGE STYLE | C24 COVER TYPE FIRST FLANGE C24 COVER TYPE SECOND FLANGE |
| FLANGE INSIDE WIDTH | 1.503 INCHES NOMINAL FIRST FLANGE 1.372 INCHES NOMINAL SECOND FLANGE |
| FLANGE INSIDE HEIGHT | 0.753 INCHES NOMINAL FIRST FLANGE 0.622 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE DIAMETER | 3.125 INCHES NOMINAL FIRST FLANGE 3.125 INCHES NOMINAL SECOND FLANGE |
| FLANGE DEPTH | 0.375 INCHES NOMINAL FIRST FLANGE 0.750 INCHES NOMINAL SECOND FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 6 UNTHREADED HOLE FIRST FLANGE SINGLE CONNECTION FACILITY 6 THREADED HOLE SECOND FLANGE SINGLE CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.010 INCHES NOMINAL FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC SECOND FLANGE SINGLE CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.190 INCHES SECOND FLANGE SINGLE CONNECTION FACILITY |
| THREAD CLASS | B2 SECOND FLANGE SINGLE CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND SECOND FLANGE SINGLE CONNECTION FACILITY |
| VOLTAGE STANDING WAVE RATIO | 1.10 |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | RG-50 ALL TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/55-001 FIRST FLANGE M3922/60-001 SECOND FLANGE |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SM-F-720409 |
Restrictions/Controls & Freight Information | NSN 5985-01-032-4025
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J./  |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-01-032-4025
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | Q | Electronics Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 4 | Communications Systems Agency and Satellite Communications |
| Weapons Systems/End Item or Homogeneous Group | 4A | AN/FSC-78/GSC-39 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7G | Depot level reparable electronic material to support Naval Inventory Control Point, Space and Naval Warfare Systems Command, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | J | PILFERAGE - PILFERAGE CONTROLS MAY BE DESIGNATED BY THE CODING ACTIVITY TO ITEMS CODED U (UNCLASSIFIED) BY RECORDING THE ITEM TO J. |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 AY : Assembly |
