NSN 5985-01-032-4026 SMC7208836, SM-C-720883-6, 01-032-4026
Product Details | WAVEGUIDE ASSEMBLY
5985-01-032-4026 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: SMC7208836, SM-C-720883-6, 5985-01-032-4026, 01-032-4026, 5985010324026, 010324026
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 DEC 1976 | 01-032-4026 | 00305 ( WAVEGUIDE ASSEMBLY ) |
Drawings & Photos | NSN 5985-01-032-4026
Cross Reference | NSN 5985-01-032-4026
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SM-C-720883-6 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-01-032-4026
Related Products | NSN 5985-01-032-4026
Technical Data | NSN 5985-01-032-4026
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B1 STRAIGHT TYPE |
| WAVEGUIDE LENGTH | 87.380 INCHES NOMINAL |

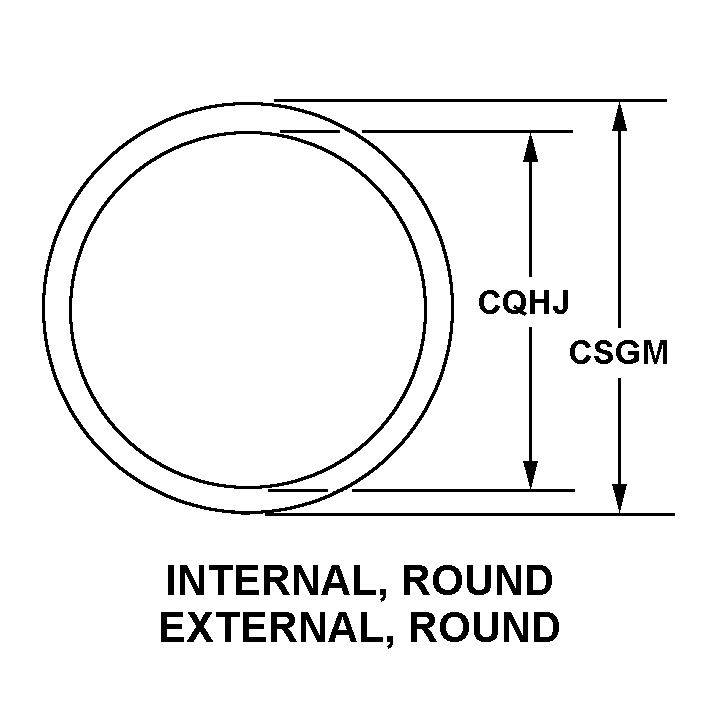

| CROSS-SECTIONAL SHAPE STYLE | A7 INTERNAL, ROUND EXTERNAL, ROUND |
| WAVEGUIDE INSIDE DIAMETER | 3.000 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE DIAMETER | 3.250 INCHES NOMINAL |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| MATERIAL | ALUMINUM ALLOY ALL FLANGE |
| SURFACE TREATMENT | OXIDE FILM ALL FLANGE INSIDE SURFACES ENAMEL ALL FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |

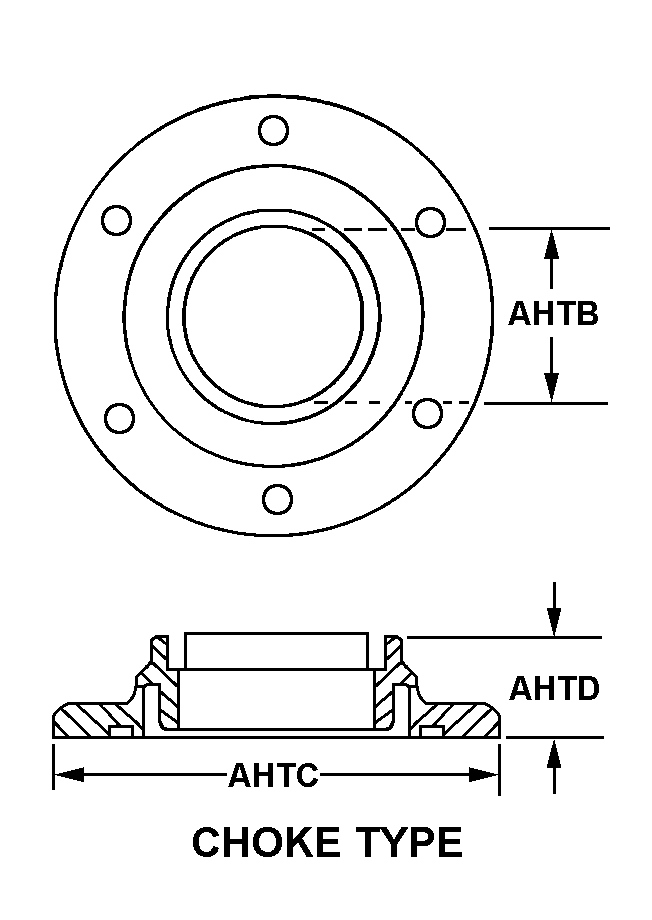

| FLANGE STYLE | C1 CHOKE TYPE FIRST FLANGE C1 CHOKE TYPE SECOND FLANGE |
| FLANGE INSIDE DIAMETER | 3.243 INCHES NOMINAL FIRST FLANGE 3.243 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE DIAMETER | 4.500 INCHES NOMINAL FIRST FLANGE 4.500 INCHES NOMINAL SECOND FLANGE |
| FLANGE DEPTH | 0.617 INCHES NOMINAL FIRST FLANGE 0.625 INCHES NOMINAL SECOND FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 1 CLAMP RING FIRST FLANGE SINGLE CONNECTION FACILITY 1 CLAMP RING SECOND FLANGE SINGLE CONNECTION FACILITY |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | SM-C-720883-16 ALL TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | SM-C-720916 FIRST FLANGE SM-C-720917 SECOND FLANGE |
| MANUFACTURERS CODE | 80063 |
| DESIGN CONTROL REFERENCE | SM-C-720883-6 |
Restrictions/Controls & Freight Information | NSN 5985-01-032-4026
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | CL | U.S. Army Communications-Electronics Fort Monmouth, NJ 07703-5006 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
