NSN 5985-00-902-5883 M3970/15-004, M397015004, MIL-W-3970/15
Product Details | WAVEGUIDE ASSEMBLY
5985-00-902-5883 An item consisting of one or more definite lengths of straight or formed, flexible or rigid, prefabricated hollow tubing of conductive material. The tubing has a predetermined cross section and is designed to guide or conduct high frequency electromagnetic energy through its interior. One or more ends are terminated. May include common mounting of a SWITCH, WAVE GUIDE, a DUMMY LOAD, ELECTRICAL and other components such as waveguide section, cable terminal chamber and the like. Excludes COUPLER, ROTARY, RADIO FREQUENCY; COUPLER, DIRECTIONAL; ADAPTER, WAVEGUIDE; and TUNER, WAVEGUIDE.
Part Alternates: M3970/15-004, M397015004, MIL-W-3970/15, MILW397015, UG-880/U, UG880U, 5985-00-902-5883, 00-902-5883, 5985009025883, 009025883
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1960 | 00-902-5883 | 00305 ( WAVEGUIDE ASSEMBLY ) |

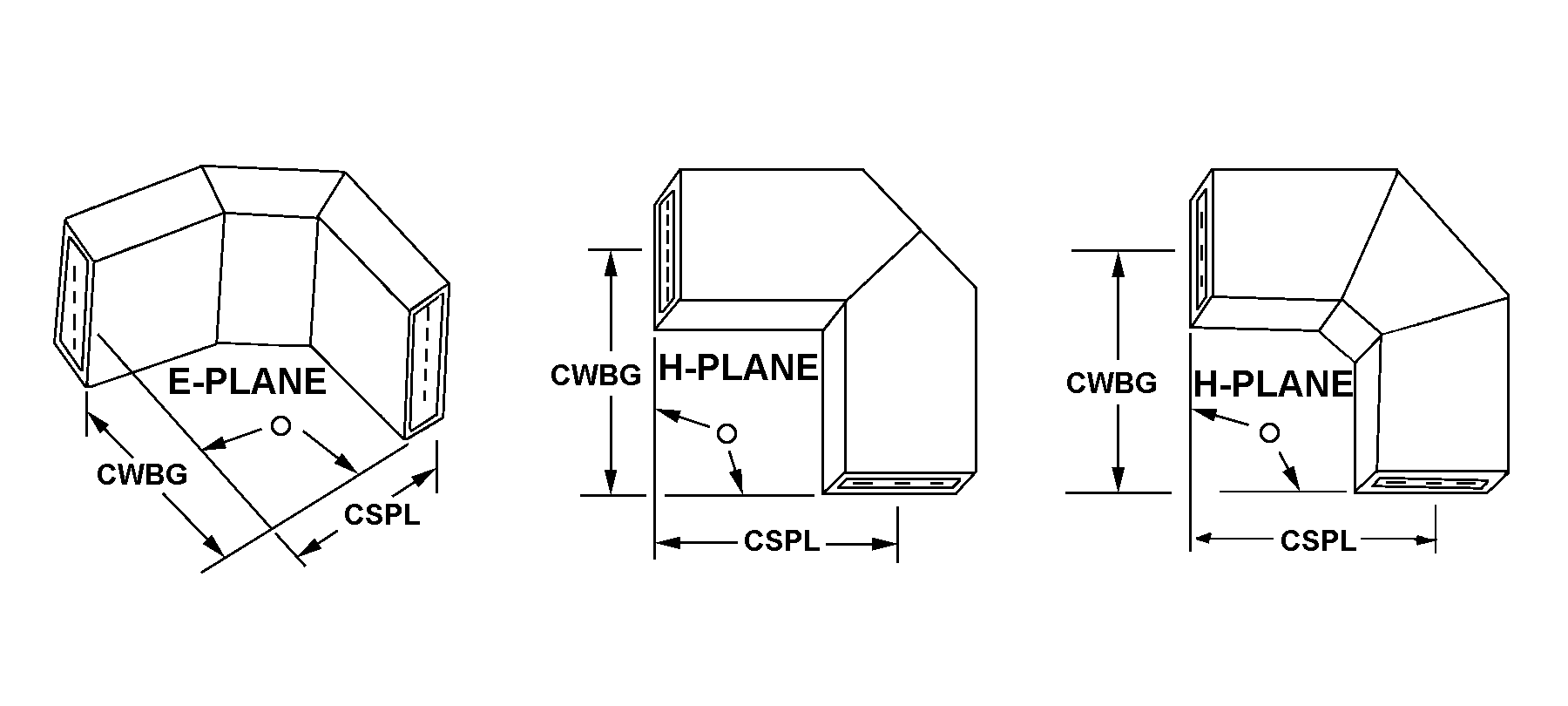

Drawings & Photos | NSN 5985-00-902-5883
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-902-5883
Technical Data | NSN 5985-00-902-5883
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | B3 CORNER TYPE |
| WAVEGUIDE LONGER OFFSET DISTANCE | 1.708 INCHES NOMINAL |
| WAVEGUIDE OFFSET DISTANCE | 1.708 INCHES NOMINAL |
| CROSS-SECTIONAL SHAPE STYLE | A1 INTERNAL, RECTANGULAR EXTERNAL, RECTANGULAR |
| WAVEGUIDE OUTSIDE WIDTH | 1.250 INCHES NOMINAL |
| WAVEGUIDE INSIDE WIDTH | 1.122 INCHES NOMINAL |
| WAVEGUIDE INSIDE HEIGHT | 0.497 INCHES NOMINAL |
| WAVEGUIDE OUTSIDE HEIGHT | 0.625 INCHES NOMINAL |
| FLEXIBILITY | RIGID SINGLE TUBING SEGMENT |
| TUBING WALL CONSTRUCTION STYLE | J1 SEAMLESS SINGLE TUBING SEGMENT |
| BEND ANGLE IN DEG | 60.0 SINGLE BEND E-PLANE |
| MATERIAL | COPPER ALLOY ALL FLANGE |
| SURFACE TREATMENT | ANY ACCEPTABLE ALL FLANGE INSIDE SURFACES ANY ACCEPTABLE ALL FLANGE OUTSIDE SURFACES |
| FLANGE QUANTITY | 2 |
| FLANGE STYLE | C2 CHOKE TYPE FIRST FLANGE C28 COVER TYPE SECOND FLANGE |
| FLANGE INSIDE WIDTH | 1.122 INCHES NOMINAL FIRST FLANGE 1.253 INCHES NOMINAL SECOND FLANGE |
| FLANGE INSIDE HEIGHT | 0.497 INCHES NOMINAL FIRST FLANGE 0.628 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE WIDTH | 1.875 INCHES NOMINAL FIRST FLANGE 1.875 INCHES NOMINAL SECOND FLANGE |
| FLANGE OUTSIDE HEIGHT | 1.875 INCHES NOMINAL FIRST FLANGE 1.875 INCHES NOMINAL SECOND FLANGE |
| FLANGE DEPTH | 0.625 INCHES NOMINAL FIRST FLANGE 0.438 INCHES NOMINAL SECOND FLANGE |
| FLANGE CONNECTING FACILITY AND QUANTITY | 4 THREADED HOLE FIRST FLANGE SINGLE CONNECTION FACILITY 4 UNTHREADED HOLE SECOND FLANGE SINGLE CONNECTION FACILITY |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES NOMINAL SECOND FLANGE SINGLE CONNECTION FACILITY |
| THREAD SERIES DESIGNATOR | UNC FIRST FLANGE SINGLE CONNECTION FACILITY |
| NOMINAL THREAD SIZE | 0.164 INCHES FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD CLASS | 2B FIRST FLANGE SINGLE CONNECTION FACILITY |
| THREAD DIRECTION | RIGHT-HAND FIRST FLANGE SINGLE CONNECTION FACILITY |
| (NON-CORE DATA) TEST DATA DOCUMENT | 81349-MIL-W-3970 SPECIFICATION |
| SPECIFICATION/STANDARD DATA | 81349-MIL-W-3970/15 GOVERNMENT SPECIFICATION |
| (NON-CORE DATA) TUBING MANUFACTURER PART NUMBER | M85/1-073 SINGLE TUBING SEGMENT |
| (NON-CORE DATA) FLANGE MANUFACTURER PART NUMBER | M3922/59-7 FIRST FLANGE M3922/53-2 SECOND FLANGE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-W-3970/15 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD | M3970/15-004 |
Restrictions/Controls & Freight Information | NSN 5985-00-902-5883
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-902-5883
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9E | Defense Supply Center Columbus Columbus, OH 43218 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
