Product Details | ELECTRICAL DUMMY LOAD
5985-00-852-3775 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: GT817B910, 11455311, 470091, 4700-91, 4700910HMS, 4700-910HMS, 7126393P7, 5985-00-852-3775, 00-852-3775, 5985008523775, 008523775
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1962 | 00-852-3775 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-00-852-3775
Demand History | NSN 5985-00-852-3775
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-852-3775 | 2020-11-320 | 1 | United States |
| 5985-00-852-3775 | 2016-10-299 | 43 | DIBBS |
| 5985-00-852-3775 | 2013-07-210 | 12 | United States |
| 5985-00-852-3775 | 2012-06-182 | 23 | DIBBS |
| 5985-00-852-3775 | 2011-05-138 | 18 | DIBBS |
| 5985-00-852-3775 | 2010-06-179 | 6 | DIBBS |
| 5985-00-852-3775 | 2010-02-55 | 11 | DIBBS |
| 5985-00-852-3775 | 2008-11-318 | 22 | DIBBS |
| 5985-00-852-3775 | 2008-02-37 | 17 | DIBBS |
Cross Reference | NSN 5985-00-852-3775
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11455311 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 4700-91 | 74868 | AMPHENOL CORPORATION |
| 4700-910HMS | 74868 | AMPHENOL CORPORATION |
| 7126393P7 | 78792 | GENERAL ELECTRIC CO TRANSMITTER DIVISION |
| GT817B910 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-852-3775
Related Products | NSN 5985-00-852-3775
Technical Data | NSN 5985-00-852-3775
| Characteristic | Specifications |
|---|---|

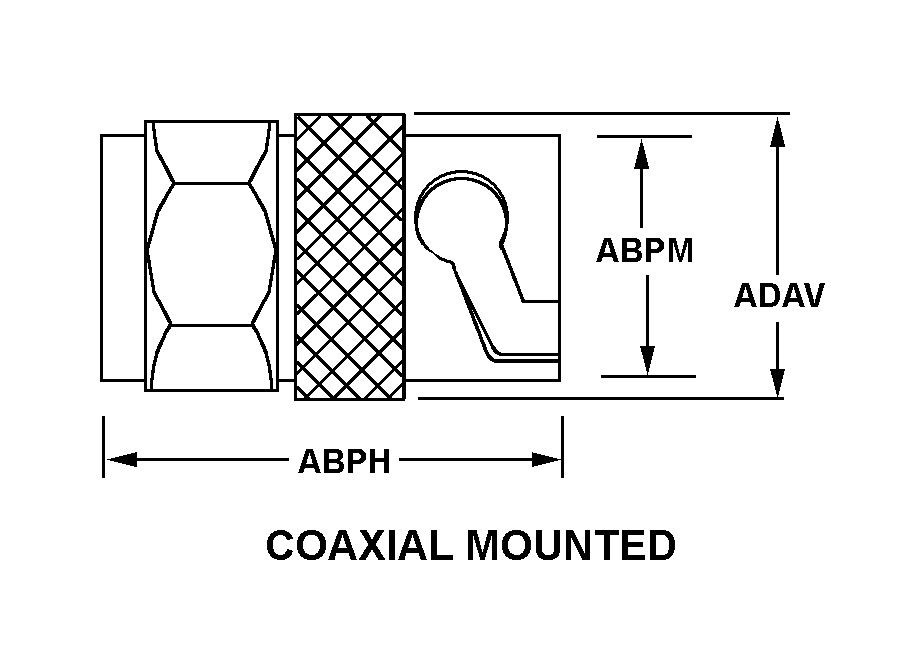

| STYLE DESIGNATOR | 3A COAXIAL MOUNTED |
| OVERALL LENGTH | 1.290 INCHES NOMINAL |
| BODY DIAMETER | ANY ACCEPTABLE |
| OVERALL DIAMETER | 0.563 INCHES NOMINAL |
| FREQUENCY RANGE RATING | ANY ACCEPTABLE |
| POWER RATING | 0.500 WATTS AVERAGE |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| VOLTAGE STANDING WAVE RATIO | ANY ACCEPTABLE |
| TERMINATION TYPE | CONNECTION COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | BNC |
| CONNECTOR END DESIGN | MALE |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | ALL POSITIONS |
Restrictions/Controls & Freight Information | NSN 5985-00-852-3775
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
