Product Details | ELECTRICAL DUMMY LOAD
5985-00-514-7575 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 1893881, 189388-1, 7143, 5985-00-514-7575, 00-514-7575, 5985005147575, 005147575
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
---|---|---|---|
59 | 09 JUL 1971 | 00-514-7575 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Request a Quote
What Our Customers Say
Compare
Related Products | NSN 5985-00-514-7575
Technical Data | NSN 5985-00-514-7575
Characteristic | Specifications |
---|---|

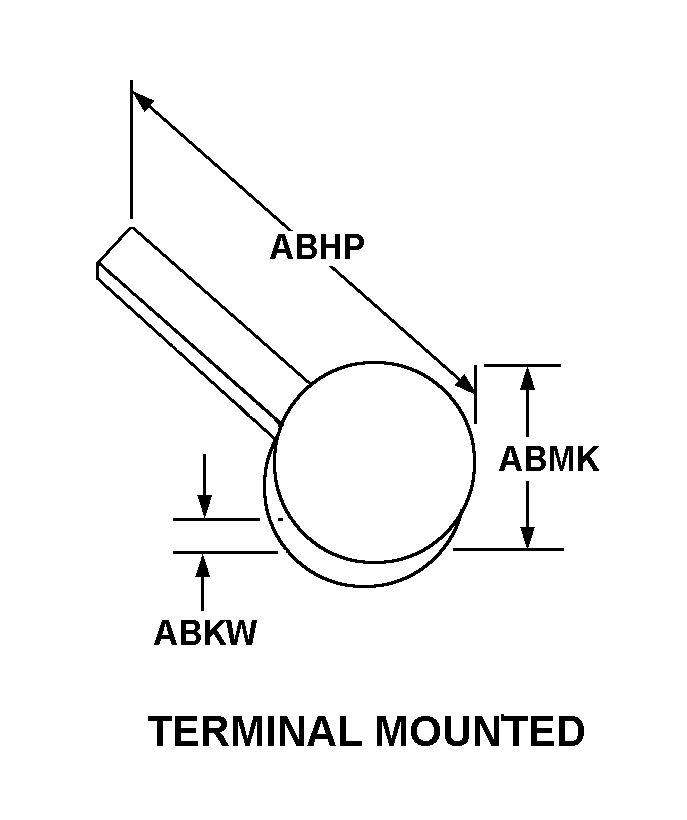

STYLE DESIGNATOR | 30A TERMINAL MOUNTED |
OVERALL LENGTH | 0.500 INCHES NOMINAL |
OVERALL HEIGHT | 0.246 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
OVERALL WIDTH | 0.248 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
FREQUENCY RANGE RATING | 0.000 TO 8.000 GIGAHERTZ AND 8.000 TO 12.400 GIGAHERTZ |
POWER RATING | 1.000 WATTS AVERAGE |
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
VOLTAGE STANDING WAVE RATIO | 1.20 AND 1.35 |
VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 0.000 TO 8.000 GIGAHERTZ AND 8.000 TO 12.400 GIGAHERTZ |
TERMINATION TYPE | BINDING POST |
COOLING METHOD | SELF-COOLED |
OPERATING POSITION | ALL POSITIONS |
III PRECIOUS MATERIAL | GOLD |
III PRECIOUS MATERIAL AND LOCATION | OVERALL SURFACES GOLD |
III FSC APPLICATION DATA | ANTENNAS,WAVEGUIDES,AND RELATED EQUIPMENT |
