NSN 5985-00-254-7173 AN104AX, E784A, 00-254-7173
Product Details | ANTENNA
5985-00-254-7173 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: AN104AX, E784A, 5985-00-254-7173, 00-254-7173, 5985002547173, 002547173
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1961 | 00-254-7173 | 00749 ( ANTENNA ) |

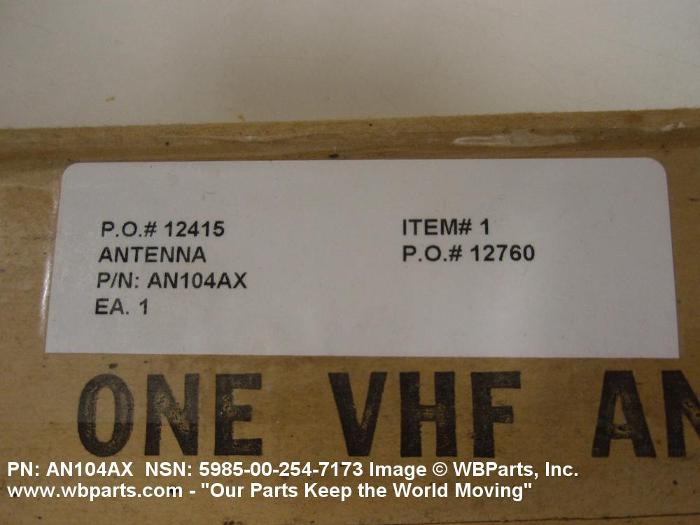

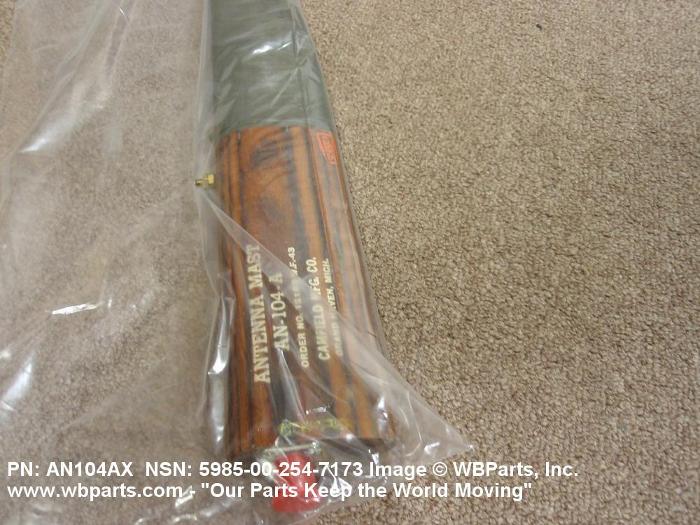

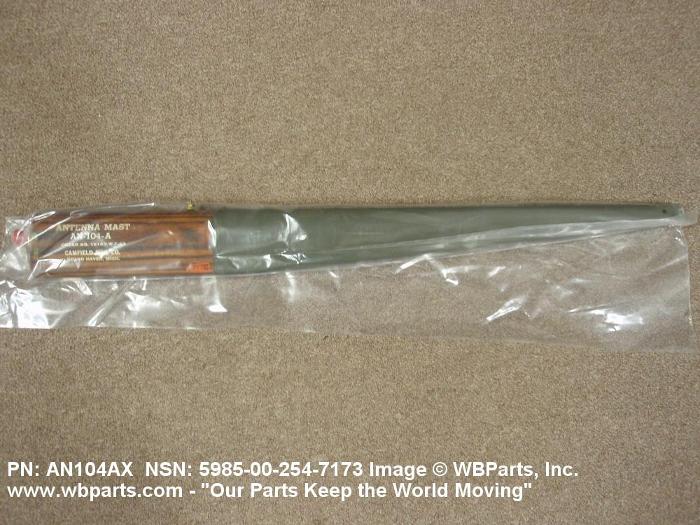

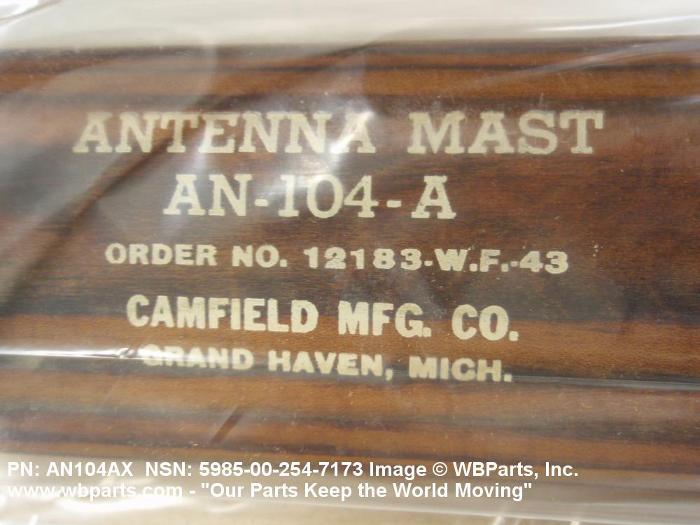

Drawings & Photos | NSN 5985-00-254-7173
Demand History | NSN 5985-00-254-7173
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AN104AX | 2011-06-159 | 1 | United States |
| AN104AX | 2009-06-164 | 2 | US |
| AN104AX | 2008-11-314 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-254-7173
Technical Data | NSN 5985-00-254-7173
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | STUB SINGLE ANTENNA ELEMENT |
| BEAM SCANNING METHOD | FIXED SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 100.000 MEGAHERTZ MINIMUM AND 156.000 MEGAHERTZ MAXIMUM SINGLE ANTENNA ELEMENT |
| MOUNTING METHOD | BRACKET |
| MANUFACTURERS CODE | 10001 |
| DESIGN CONTROL REFERENCE | E784A |
Restrictions/Controls & Freight Information | NSN 5985-00-254-7173
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060560 | AERIALS/ANTENNAE O/T TV |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
