Product Details | ELECTRICAL DUMMY LOAD
5985-00-251-1453 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 452094, 890378, 990C588H01, 5985-00-251-1453, 00-251-1453, 5985002511453, 002511453
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 16 JUL 1969 | 00-251-1453 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-00-251-1453
Cross Reference | NSN 5985-00-251-1453
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 452094 | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| 452094 | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
| 890378 | 66544 | CONTINENTAL MICROWAVE AND TOOL CO., INC. |
| 890378 | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
| 990C588H01 | 18323 | NORTHROP GRUMMAN SYSTEMS CORPORATION DBA ELECTRONIC SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-251-1453
Technical Data | NSN 5985-00-251-1453
| Characteristic | Specifications |
|---|---|

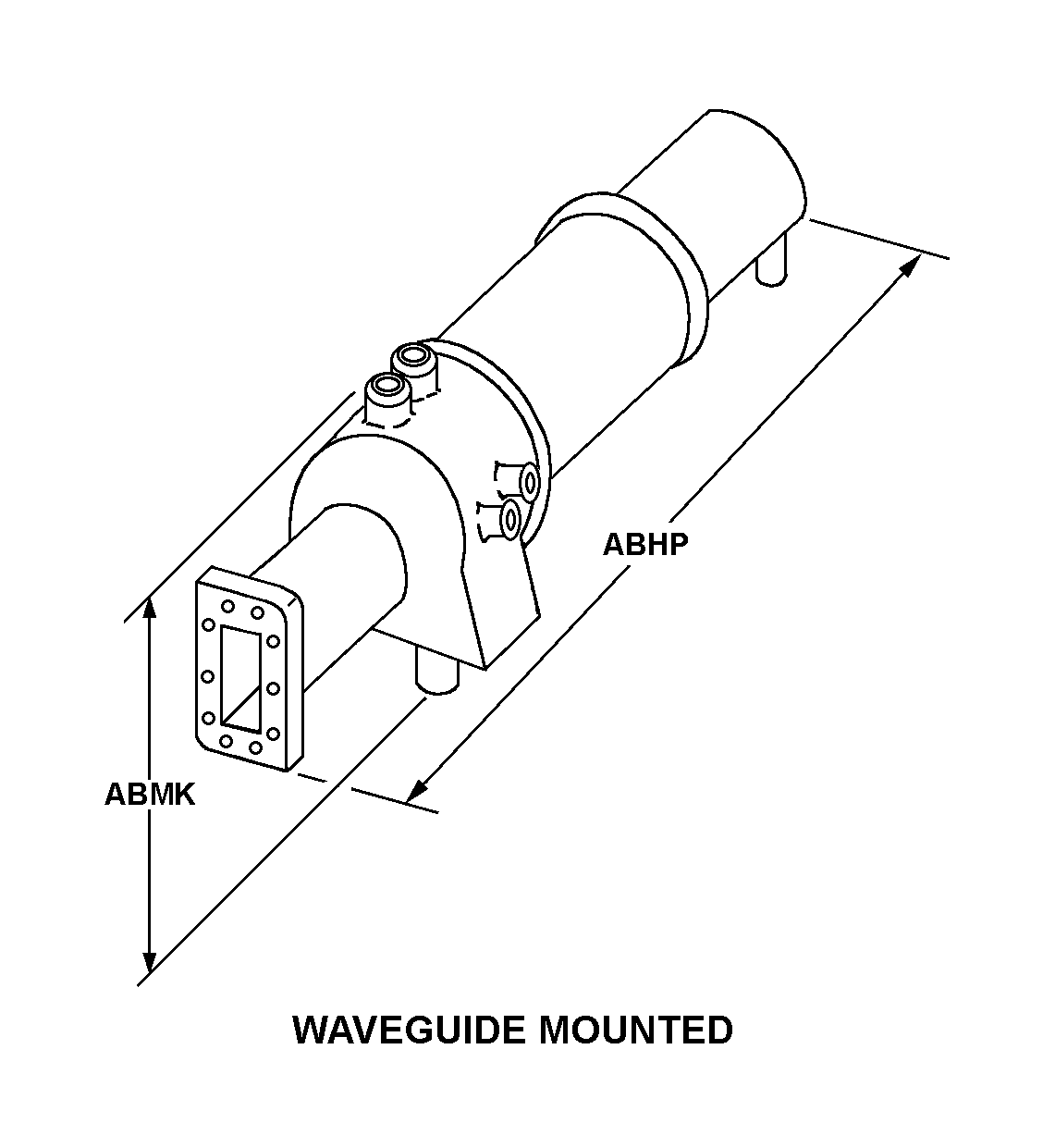

| STYLE DESIGNATOR | 25A WAVEGUIDE MOUNTED |
