NSN 5985-00-145-3515 X110LIA, 00-145-3515, 001453515
Product Details | RADIO FREQUENCY REFLECTION ISOLATOR
5985-00-145-3515 A device which allows radio frequency energy to pass in one direction with very little power loss, but blocks the flow of energy in the other direction by means of multiple WAVE-polarization or an integral dissipative load. It isolates frequency sensitive circuity from the effects of reflected radio frequency energy resulting from component mismatch. It usually has one or more ports terminated with coaxial connector(s) and/or waveguide flange(s); or other electrical terminations. Isolators designed for internal use in waveguide runs may consist of rods, rings, chips, strips and the like and have no ports or terminations. See also DIPLEXER; DUPLEXER. Excludes CIRCULATOR, RADIO FREQUENCY.
Part Alternates: X110LIA, 5985-00-145-3515, 00-145-3515, 5985001453515, 001453515
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 AUG 1971 | 00-145-3515 | 20347 ( ISOLATOR, RADIO FREQUENCY REFLECTION ) |

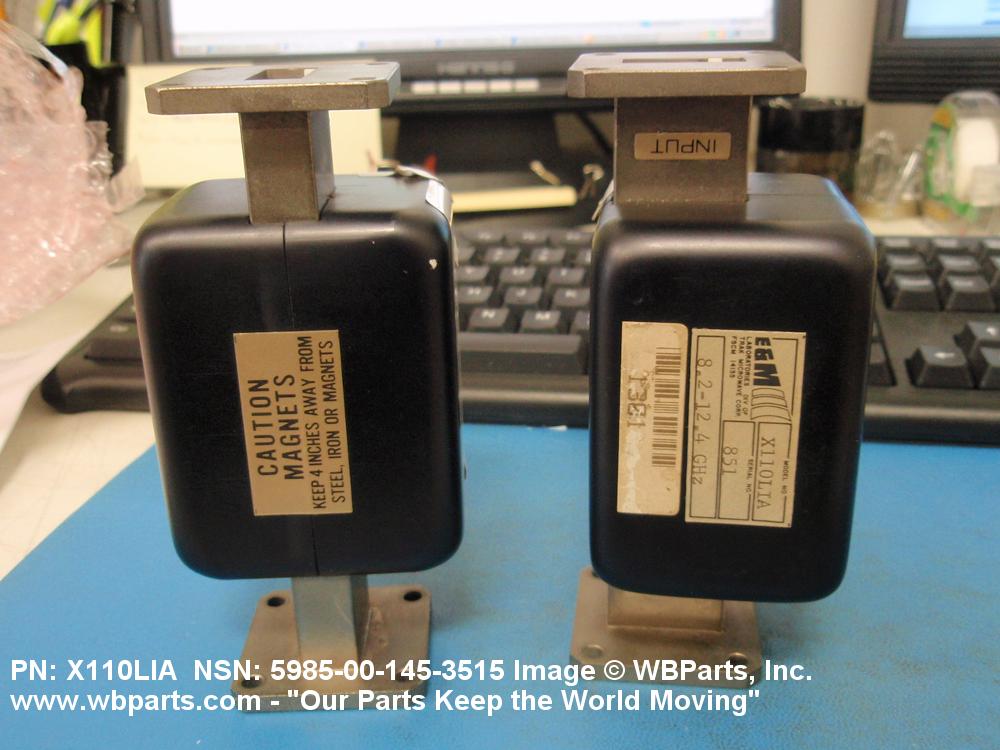

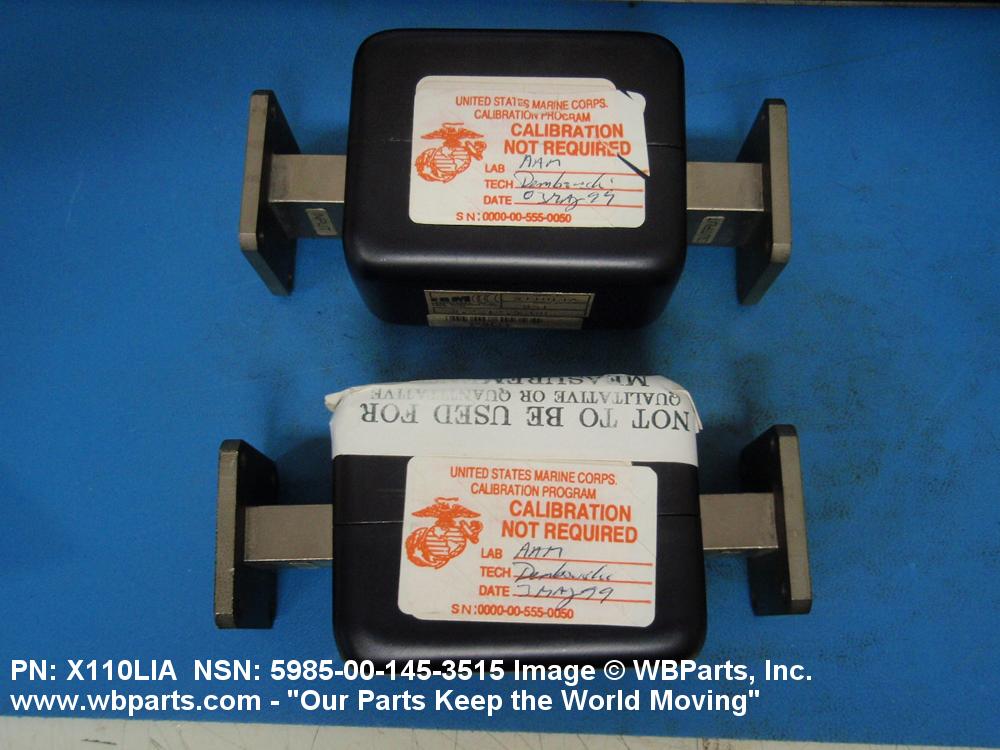

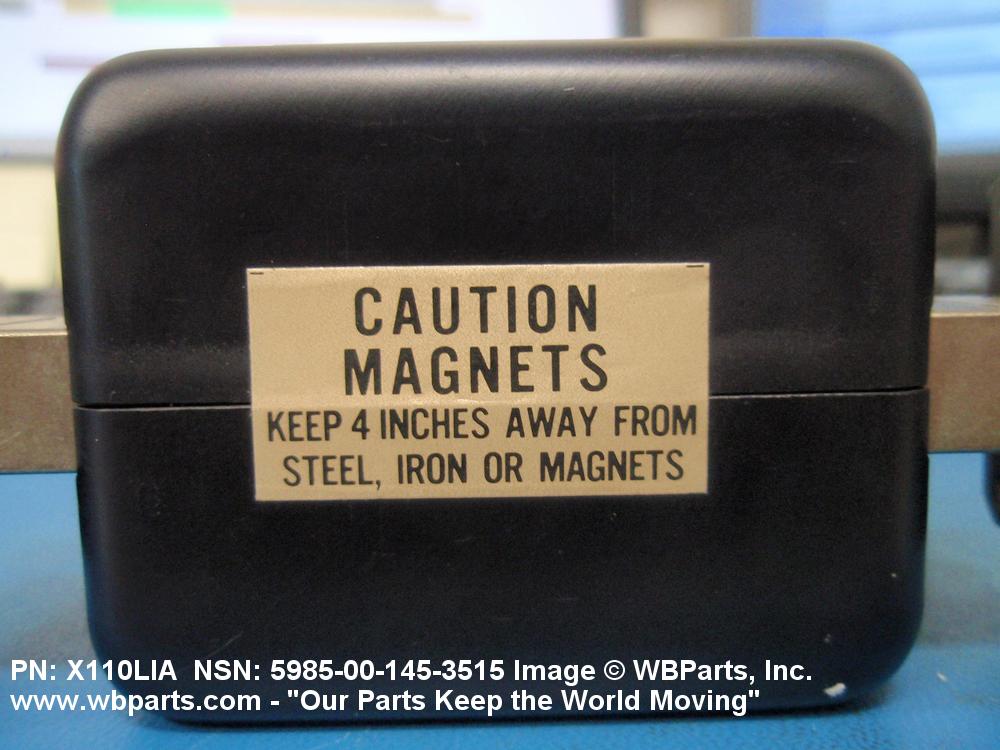

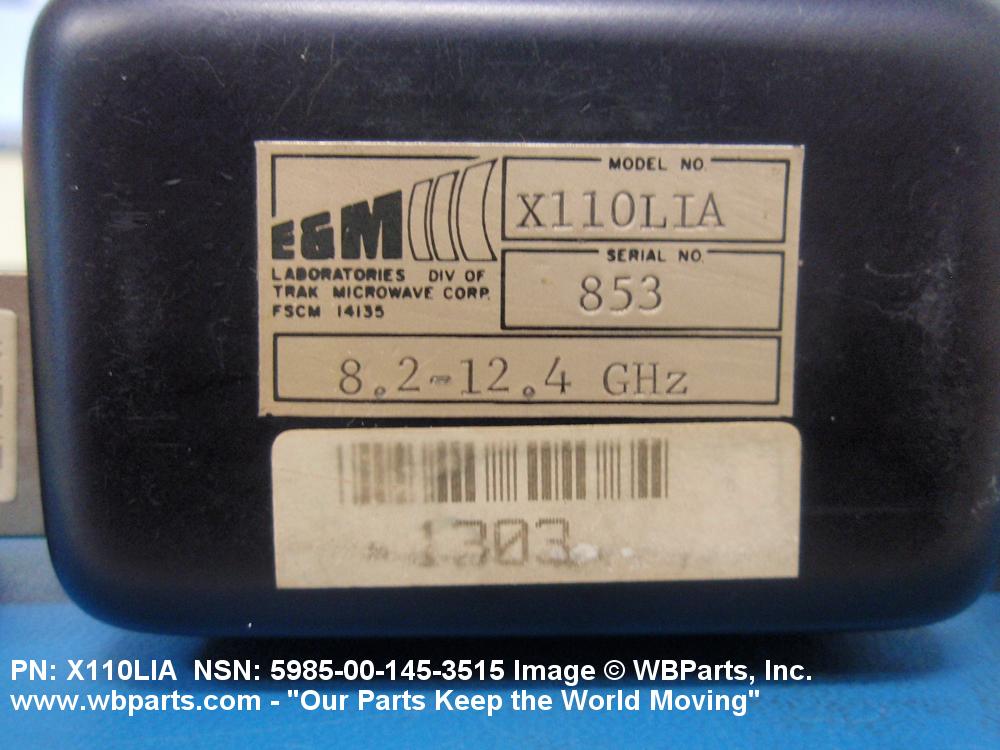

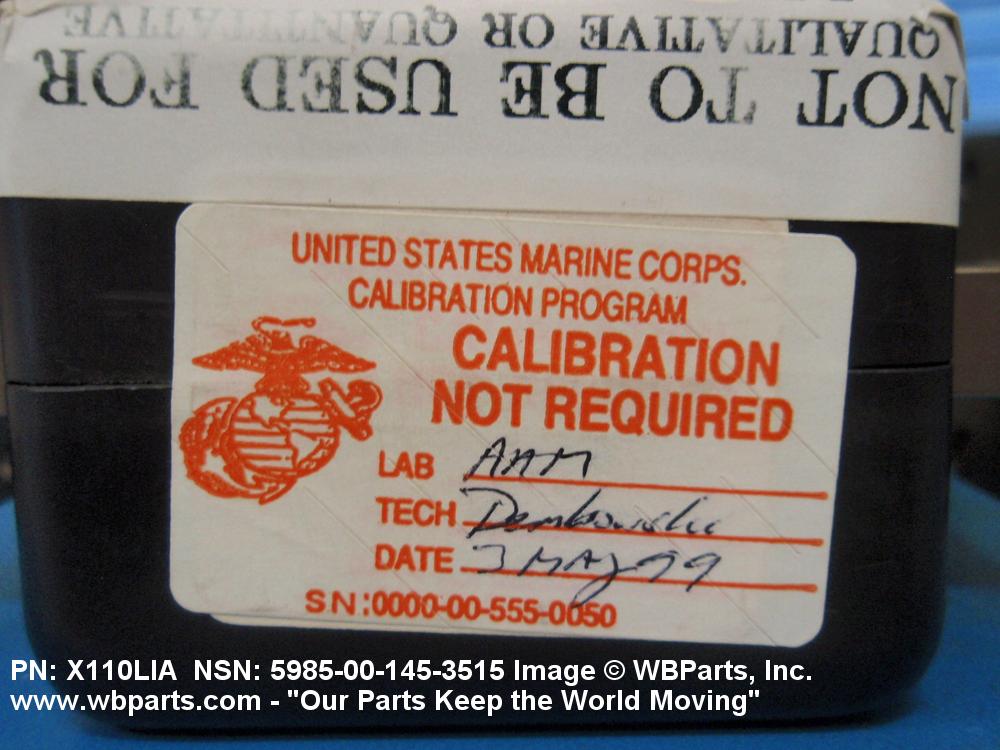

Drawings & Photos | NSN 5985-00-145-3515
Demand History | NSN 5985-00-145-3515
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-145-3515 | 2011-03-60 | 2 | United States |
Cross Reference | NSN 5985-00-145-3515
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| X110LIA | 14135 | E AND M LABORATORIES DIV OF TRAK MICROWAVE CORP |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-145-3515
Technical Data | NSN 5985-00-145-3515
| Characteristic | Specifications |
|---|---|
| FREQUENCY RANGE RATING | 8.2 TO 12.4 GIGAHERTZ |
| CONNECTOR QUANTITY | 2 |
| CONTROLLING AGENCY | EANDMLABORATORIES INC |
| TRADE DESIGNATION | ISOLATOR,RADIO FREQUENCY REFLECTION |
| IDENTIFYING NUMBER | X110L1A MODEL NO. |
| FLANGE QUANTITY | 2 |
| FLANGE TYPE | COVER |
| FLANGE CONNECTION FACILITY QUANTITY | 4 |
| FLANGE CONNECTING HOLE DIAMETER | 0.169 INCHES NOMINAL |
| FLANGE CONNECTING HOLE SPACING | SPACED ON 1.220 IN. BY 1.280 IN. MTG CENTERS |
| LENGTH | 1.650 INCHES NOMINAL |
| WIDTH | 1.650 INCHES NOMINAL |
| DOCUMENT TYPE | TECHNICAL MANUAL |
| DOCUMENT IDENTIFICATION | MIL-F-3922 |
| IDENTIFICATION DESIGNATOR | TYPE UG-39/U |
Restrictions/Controls & Freight Information | NSN 5985-00-145-3515
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063520 | WAVEGUIDE IN BOXES/CRATES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 723 | unknown |
| Originating Activity Code | TX | Defense Supply Center Columbus Columbus, OH 43218 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-145-3515
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9N | Navy-owned stocks of defense electronic material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
