NSN 5985-00-108-8481 12677481, 1267748-1, 160B660
Product Details | ELECTRICAL DUMMY LOAD
5985-00-108-8481 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 12677481, 1267748-1, 160B660, 5985-00-108-8481, 00-108-8481, 5985001088481, 001088481
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 17 DEC 1972 | 00-108-8481 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-00-108-8481
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-108-8481
Technical Data | NSN 5985-00-108-8481
| Characteristic | Specifications |
|---|---|

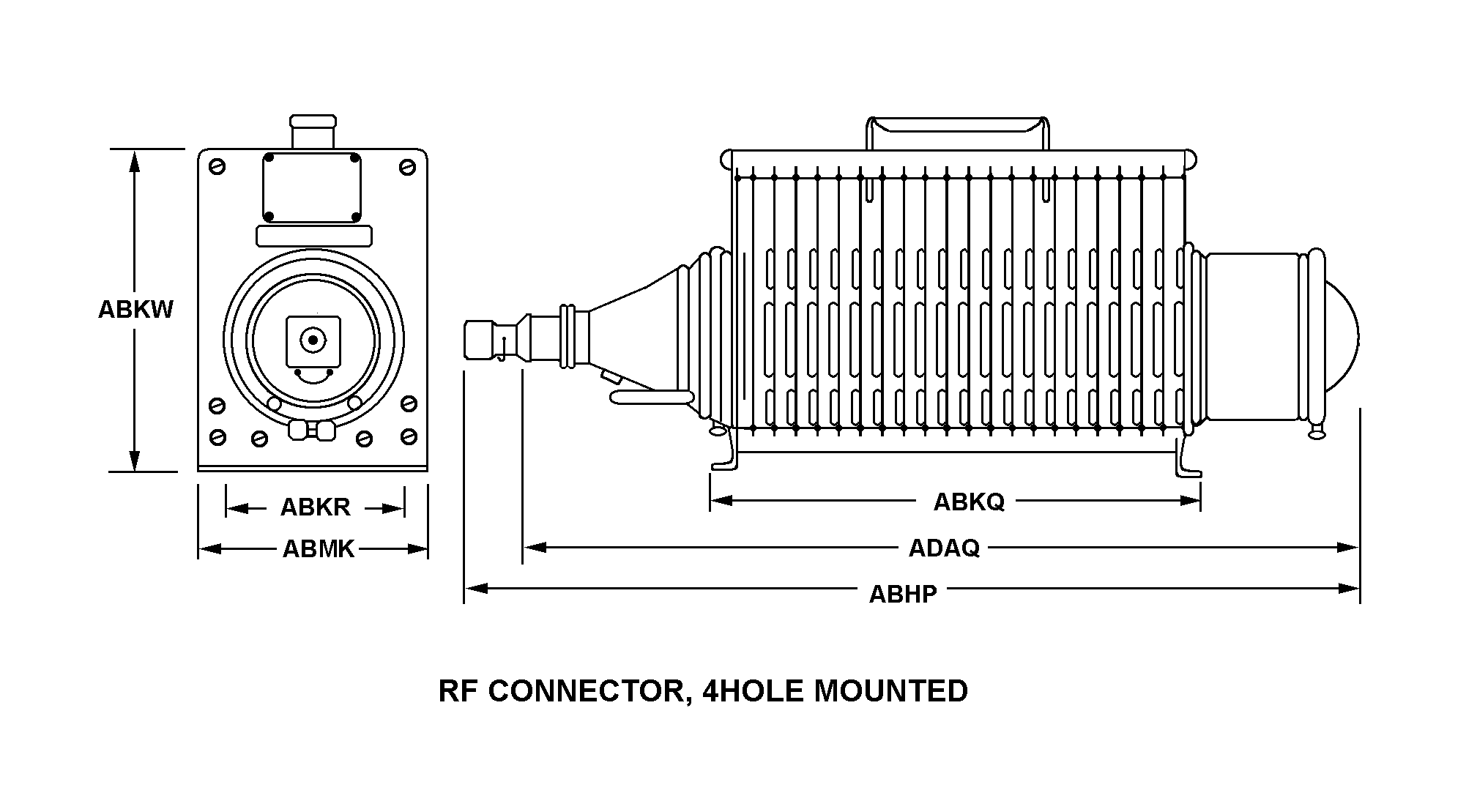

| STYLE DESIGNATOR | 7A RF CONNECTOR, 4 HOLE MOUNTED |
| OVERALL LENGTH | 14.000 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 11.625 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO WIDTH | 3.250 INCHES NOMINAL |
| OVERALL HEIGHT | 8.250 INCHES MAXIMUM |
| OVERALL WIDTH | 5.880 INCHES MAXIMUM |
| BODY LENGTH | 12.500 INCHES MAXIMUM |
| FREQUENCY RANGE RATING | 0.000 TO 100.000 KILOHERTZ |
| POWER RATING | 10.000 KILOWATTS PEAK AND 600.000 WATTS AVERAGE |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 40.0 |
| IMPEDANCE RATING IN OHMS | 50.0 NOMINAL |
| TERMINATION TYPE | CONNECTION COAXIAL |
| COAXIAL CONNECTOR SERIES DESIGNATION | N |
| CONNECTOR END DESIGN | FEMALE |
| COOLING METHOD | SELF-COOLED |
| MANUFACTURERS CODE | 61364 |
| DESIGN CONTROL REFERENCE | 160B660 |
