NSN 5985-00-102-4204 C12626, LXH28, 25460281
Product Details | ELECTRICAL DUMMY LOAD
5985-00-102-4204 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: C12626, LXH28, 25460281, 2546028-1, 5985-00-102-4204, 00-102-4204, 5985001024204, 001024204
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 29 MAY 1968 | 00-102-4204 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-00-102-4204
Demand History | NSN 5985-00-102-4204
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5985-00-102-4204 | 2009-12-346 | 20 | DIBBS |
| 5985-00-102-4204 | 2008-12-354 | 1 | DIBBS |
| 5985-00-102-4204 | 2007-12-356 | 1 | DIBBS |
Cross Reference | NSN 5985-00-102-4204
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2546028-1 | 00341 | LEXAN INDUSTRIES INC DIV STRUTHERS ELECTRONICS |
| 2546028-1 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| C12626 | 21845 | SOLITRON DEVICES, INC. |
| C12626 | 54487 | MERCURY COMMERCIAL ELECTRONICS, INC. DBA MICRONETICS |
| LXH28 | 3B150 | RAYTHEON TECHNICAL SERVICES COMPANY LLC |
| LXH28 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-102-4204
Technical Data | NSN 5985-00-102-4204
| Characteristic | Specifications |
|---|---|

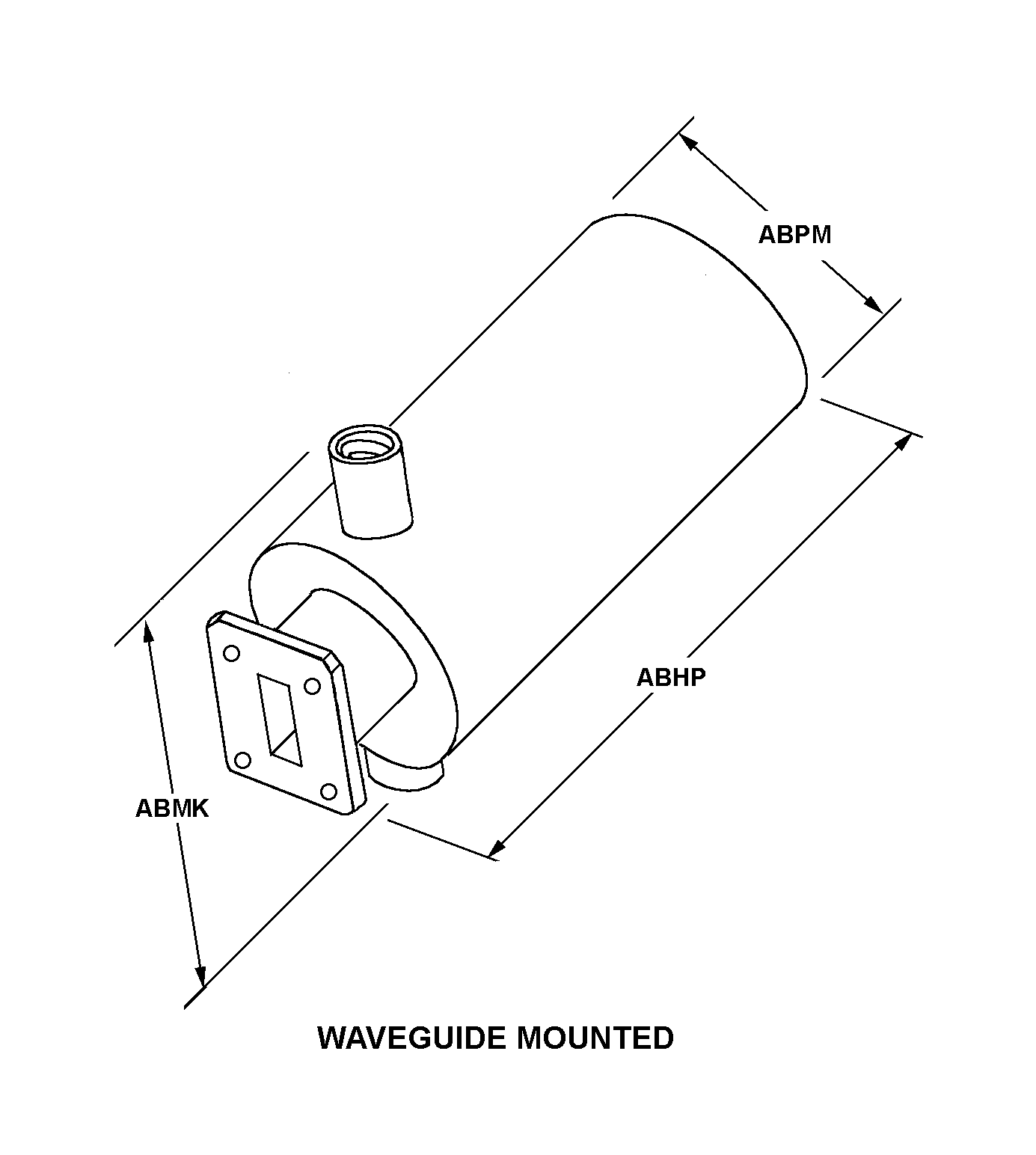

| STYLE DESIGNATOR | 24A WAVEGUIDE MOUNTED |
| OVERALL LENGTH | 10.610 INCHES MINIMUM AND 10.640 INCHES MAXIMUM |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| BODY DIAMETER | 3.250 INCHES MAXIMUM |
| POWER RATING | 7.000 KILOWATTS AVERAGE |
| AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER | 25.0 |
| IMPEDANCE RATING IN OHMS | NOT RATED |
| VOLTAGE STANDING WAVE RATIO | 1.10 |
| TERMINATION TYPE | WAVEGUIDE FLANGE |
| INTERNAL OPERATING PRESSURE | 6.00 POUNDS PER SQUARE INCH GAGE |
| WAVEGUIDE FLANGE DESIGNATION | UG-52B/U |
| COOLING METHOD | FORCED LIQUID |
| COOLANT CHAMBER PRESSURE | 10.0 POUNDS PER SQUARE INCH GAGE |
| COOLING SYSTEM COOLANT FLOW RATE | 1.5 GALLONS PER MINUTE |
| OPERATING POSITION | ALL POSITIONS |
| SPECIAL FEATURES | MATERIAL TO BE COMMERCIAL BRONZE, PAINTED |
| III UNPACKAGED UNIT WEIGHT | 14.000 POUNDS |
| III RF CONNECTOR CHANGING FEATURE | NOT INCLUDED |
| III FSC APPLICATION DATA | ANTENNAS, WAVEGUIDES, AND RELATED EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-00-102-4204
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | D | Munitions List Item or Commerce Control List Item. Demilitarization required. Total destruction of the item and components so as to preclude restoration or repair to a usable condition by melting, cutting, tearing, scratching, crushing, breaking, punching, neutralizing, etc. (As an alternate, burial or deep water dumping may be used when coordinated with the DoD Demilitarization Program Office.) |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062960 | REOSTATS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | HH | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-102-4204
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
