NSN 5985-00-089-5143 AS2287ALQ91, S65625201, S65-625201
Product Details | ANTENNA
5985-00-089-5143 An item consisting of a conductor or a system of conductors specifically designed to radiate and/or receive electromagnetic waves in free space. May include beam-forming devices, drive motors, synchros, radome, and associated mechanical structure.
Part Alternates: AS2287ALQ91, S65625201, S65-625201, 01-82-02721, 7092751, 709275-1, 5985-00-089-5143, 00-089-5143, 5985000895143, 018202721, 000895143
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 24 JUN 1967 | 00-089-5143 | 00749 ( ANTENNA ) |

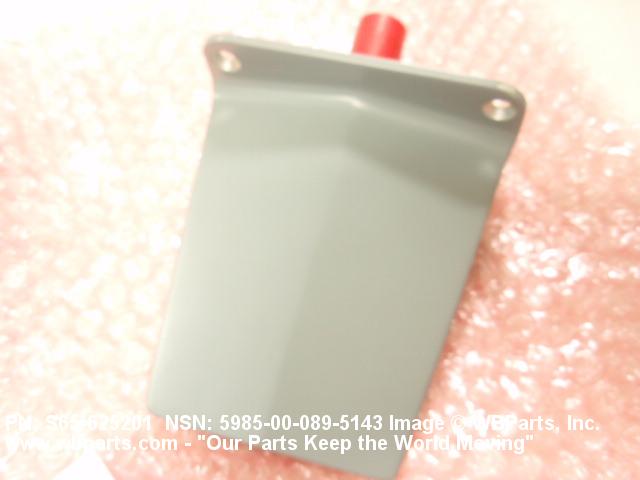

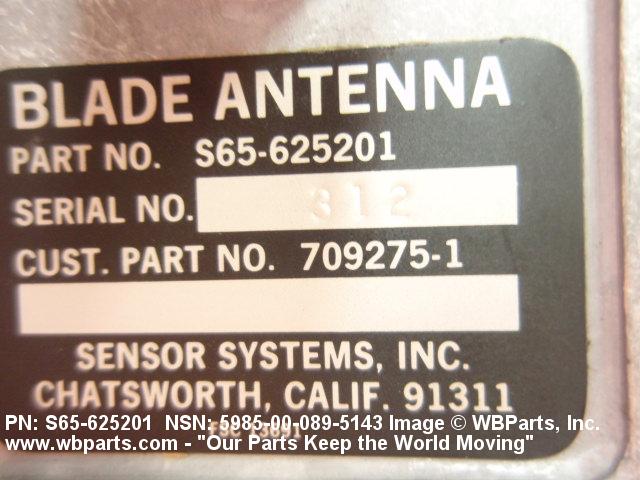

Drawings & Photos | NSN 5985-00-089-5143
Demand History | NSN 5985-00-089-5143
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 01-82-02721 | 2024-05-134 | 5 | DIBBS |
| 01-82-02721 | 2024-05-134 | 7 | DIBBS |
| 709275-1 | 2024-05-134 | 5 | DIBBS |
| 709275-1 | 2024-05-134 | 7 | DIBBS |
| S65-625201 | 2024-05-134 | 5 | DIBBS |
| S65-625201 | 2024-05-134 | 7 | DIBBS |
| 01-82-02721 | 2023-11-331 | 5 | DIBBS |
| 709275-1 | 2023-11-331 | 5 | DIBBS |
| S65-625201 | 2023-11-331 | 5 | DIBBS |
| 01-82-02721 | 2023-11-318 | 5 | DIBBS |
| 709275-1 | 2023-11-318 | 5 | DIBBS |
| S65-625201 | 2023-11-318 | 5 | DIBBS |
| 01-82-02721 | 2022-03-84 | 7 | DIBBS |
| 709275-1 | 2022-03-84 | 7 | DIBBS |
| S65-625201 | 2022-03-84 | 7 | DIBBS |
| 01-82-02721 | 2022-03-73 | 7 | DIBBS |
| 709275-1 | 2022-03-73 | 7 | DIBBS |
| S65-625201 | 2022-03-73 | 7 | DIBBS |
| 01-82-02721 | 2021-04-115 | 2 | DIBBS |
| 709275-1 | 2021-04-115 | 2 | DIBBS |
| S65-625201 | 2021-04-115 | 2 | DIBBS |
| 01-82-02721 | 2020-02-48 | 3 | DIBBS |
| 709275-1 | 2020-02-48 | 3 | DIBBS |
| S65-625201 | 2020-02-48 | 3 | DIBBS |
| 01-82-02721 | 2019-10-274 | 6 | DIBBS |
| 709275-1 | 2019-10-274 | 6 | DIBBS |
| S65-625201 | 2019-10-274 | 6 | DIBBS |
| 01-82-02721 | 2019-09-261 | 6 | DIBBS |
| 709275-1 | 2019-09-261 | 6 | DIBBS |
| S65-625201 | 2019-09-261 | 6 | DIBBS |
| 5985-00-089-5143 | 2012-09-267 | 5 | DIBBS |
| S65625201 | 2011-07-203 | 1 | United States |
| S65625201 | 2010-11-320 | 1 | United States |
| S65625201 | 2009-03-63 | 16 | United States |
| S65625201 | 2007-03-87 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5985-00-089-5143
Related Products | NSN 5985-00-089-5143
Technical Data | NSN 5985-00-089-5143
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | HORN SINGLE ANTENNA ELEMENT |
| ELECTROMAGNETIC POLARIZATION TYPE | VERTICAL SINGLE ANTENNA ELEMENT |
| RADIATION PATTERN | BIDIRECTIONAL SINGLE ANTENNA ELEMENT |
| BEAM SCANNING METHOD | FIXED SINGLE ANTENNA ELEMENT |
| FREQUENCY RATING | 0.800 GIGAHERTZ MINIMUM AND 1.100 GIGAHERTZ MAXIMUM SINGLE ANTENNA ELEMENT |
| POWER RATING | 4.000 WATTS PEAK SINGLE ANTENNA ELEMENT |
| TERMINAL TYPE | BUSHING SINGLE ANTENNA ELEMENT |
| COAXIAL CONNECTOR SERIES DESIGNATION | N SINGLE ANTENNA ELEMENT |
| CONNECTOR END DESIGN | PIN SINGLE ANTENNA ELEMENT |
| OVERALL LENGTH | 5.170 INCHES NOMINAL |
| OVERALL HEIGHT | 2.130 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| MOUNTING METHOD | UNTHREADED HOLE |
| MOUNTING HOLE QUANTITY | 4 |
| III BEAM WIDTH ANGLE | 15.0 DEGREES VERTICAL SINGLE ANTENNA ELEMENT |
| III OPERATING TEMP RANGE | -55.0 TO 71.0 DEG CELSIUS |
| III FSC APPLICATION DATA | MISCELLANEOUS COMMUNICATION EQUIPMENT |
Restrictions/Controls & Freight Information | NSN 5985-00-089-5143
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 060560 | AERIALS/ANTENNAE O/T TV |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5985-00-089-5143
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | EH | SX:ELECTRONIC COMPONENTS |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
