Product Details | ELECTRICAL DUMMY LOAD
5985-00-060-2043 A specific electrical element or set of electrical elements that are connected together to form a fixed arrangement and used as a substitute load for terminating an electrical circuit. A dummy load contains all the essential electrical characteristics necessary to terminate the circuit but does not function in the same manner as the load which it replaces. Examples are resistors used to replace antennas, batteries, loudspeakers, or the like. Includes single port terminations of twin lead, coaxial and waveguide transmission lines as low power terminations of a section of a transmission system in a specified manner. Includes dummy loads when arranged in a group or bank. Excludes power absorbers. See also LOAD BANK, ELECTRICAL.
Part Alternates: 12561, 452002, 580R064H01, 85160, 5985-00-060-2043, 00-060-2043, 5985000602043, 000602043
Electrical and Electronic Equipment Components | Antennas, Waveguides, and Related Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 15 JUN 1967 | 00-060-2043 | 00335 ( DUMMY LOAD, ELECTRICAL ) |
Drawings & Photos | NSN 5985-00-060-2043
Cross Reference | NSN 5985-00-060-2043
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12561 | 21845 | SOLITRON DEVICES, INC. |
| 452002 | 80006 | LITTON SYSTEMS INC AIRTRON DIV |
| 580R064H01 | 00929 | MICROLAB/FXR |
| 580R064H01 | 54487 | MERCURY COMMERCIAL ELECTRONICS, INC. DBA MICRONETICS |
| 580R064H01 | 97942 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN SYSTEMS |
| 85160 | 24469 | HERLEY INDUSTRIES, INC. DBA HERLEY-LANCASTER |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5985-00-060-2043
Technical Data | NSN 5985-00-060-2043
| Characteristic | Specifications |
|---|---|

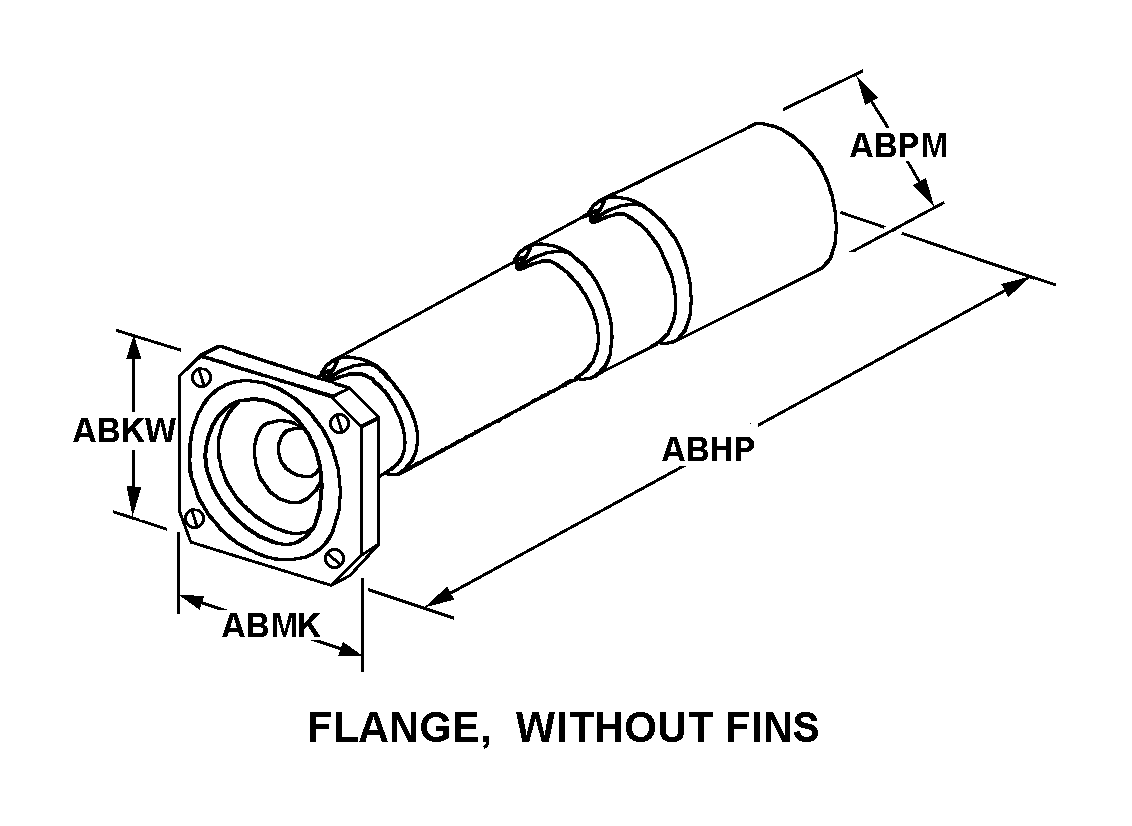

| STYLE DESIGNATOR | 17A FLANGE, WITHOUT FINS |
| OVERALL LENGTH | 6.550 INCHES NOMINAL |
| OVERALL HEIGHT | 2.370 INCHES NOMINAL |
| OVERALL WIDTH | 1.900 INCHES NOMINAL |
| BODY DIAMETER | 1.250 INCHES NOMINAL |
| FREQUENCY RANGE RATING | 8.500 TO 10.300 GIGAHERTZ |
| POWER RATING | 600.000 WATTS AVERAGE AND 300.000 KILOWATTS PEAK |
| IMPEDANCE RATING IN OHMS | NOT RATED |
| VOLTAGE STANDING WAVE RATIO | 1.10 |
| VOLTAGE STANDING WAVE RATIO FREQUENCY RANGE | 8.500 TO 10.300 GIGAHERTZ |
| TERMINATION TYPE | WAVEGUIDE FLANGE |
| INTERNAL OPERATING PRESSURE | ANY ACCEPTABLE |
| WAVEGUIDE FLANGE DESIGNATION | UG137B/U |
| COOLING METHOD | SELF-COOLED |
| OPERATING POSITION | HORIZONTAL |
| TEST DATA DOCUMENT | 97942-580R064 DRAWING |
