NSN 5977-00-238-6800 4100243, 4-1002-43, 00-238-6800
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-238-6800 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: 4100243, 4-1002-43, 5977-00-238-6800, 00-238-6800, 5977002386800, 002386800
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-238-6800 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-238-6800
Cross Reference | NSN 5977-00-238-6800
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4-1002-43 | 16636 | TITAN CORP THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-238-6800
Technical Data | NSN 5977-00-238-6800
| Characteristic | Specifications |
|---|---|

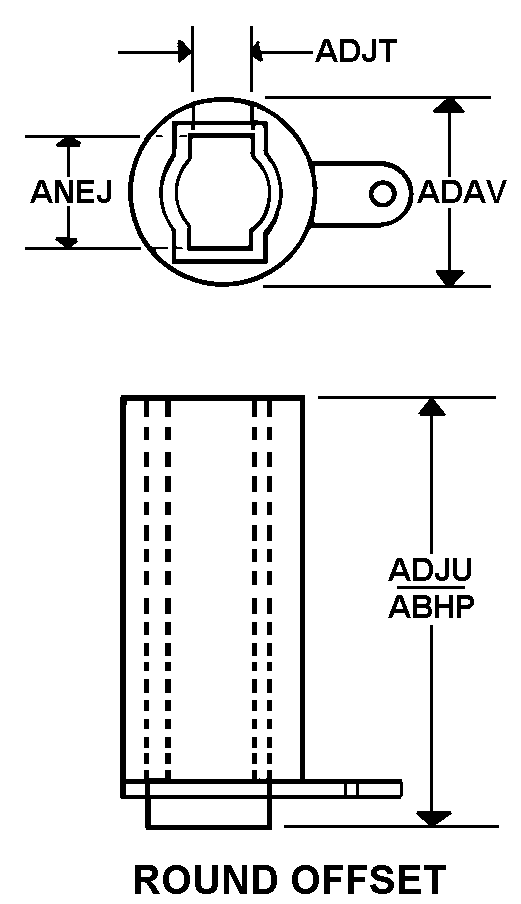

| STYLE DESIGNATOR | A12 ROUND OFFSET |
| OVERALL LENGTH | 0.969 INCHES NOMINAL |
| OVERALL DIAMETER | 0.624 INCHES NOMINAL |
| INSIDE WIDTH | 0.125 INCHES NOMINAL |
| INSIDE LENGTH | 0.969 INCHES NOMINAL |
| INSIDE THICKNESS | 0.281 INCHES NOMINAL |
| MATERIAL AND LOCATION | BRASS BOX |
| OUTER SURFACE INSULATION MATERIAL | ANY ACCEPTABLE |
| CONTACT END BEVEL | NOT INCLUDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 1 |
| TOP THREAD LOCATION | EXTERNAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.438-27 UNS |
| THREAD LENGTH | 0.203 INCHES NOMINAL |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | PRESS FIT |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
| MANUFACTURERS CODE | 16636 |
| DESIGN CONTROL REFERENCE | 4-1002-43 |
Restrictions/Controls & Freight Information | NSN 5977-00-238-6800
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5977-00-238-6800
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
