NSN 5977-00-238-6824 M20004, 234-0139-00, 00-238-6824
Product Details | ELECTRICAL CONTACT BRUSH HOLDER
5977-00-238-6824 A holder designed to accommodate and position a brush against a commutator or collector ring. Also includes items consisting of two or more brush holders (boxes) cast as an inseparable unit. May include facilities for applying pressure to the brush(es) and may also be furnished with the brush(es). See also HOLDER ASSEMBLY, ELECTRICAL CONTACT BRUSH.
Part Alternates: M20004, 234-0139-00, 5977-00-238-6824, 00-238-6824, 5977002386824, 234013900, 002386824
Electrical and Electronic Equipment Components | Electrical Contact Brushes and Electrodes
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 01 JAN 1963 | 00-238-6824 | 02937 ( HOLDER, ELECTRICAL CONTACT BRUSH ) |
Drawings & Photos | NSN 5977-00-238-6824
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5977-00-238-6824
Technical Data | NSN 5977-00-238-6824
| Characteristic | Specifications |
|---|---|

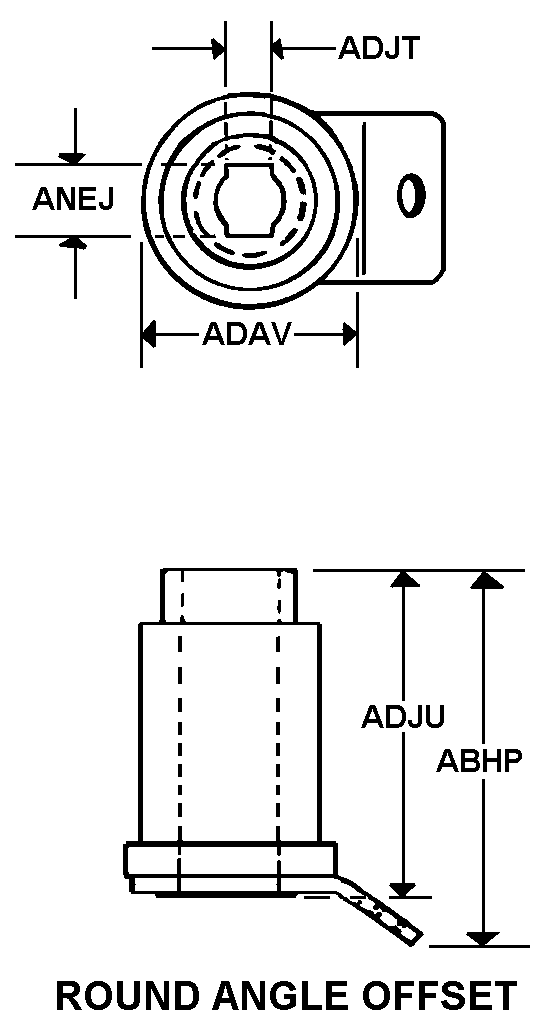

| STYLE DESIGNATOR | A15 ROUND ANGLE OFFSET |
| OVERALL LENGTH | 0.781 INCHES NOMINAL |
| OVERALL DIAMETER | 0.531 INCHES NOMINAL |
| INSIDE WIDTH | 0.255 INCHES NOMINAL |
| INSIDE LENGTH | 0.781 INCHES NOMINAL |
| INSIDE THICKNESS | 0.219 INCHES NOMINAL |
| MATERIAL AND LOCATION | BRASS BOX |
| CONTACT END BEVEL | NOT INCLUDED |
| TERMINAL TYPE | SCREW |
| TERMINAL QUANTITY | 1 |
| TOP THREAD LOCATION | EXTERNAL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.375-32 UNEF |
| THREAD LENGTH | 0.250 INCHES NOMINAL |
| CAP | NOT INCLUDED |
| MOUNTING FACILITY | PRESS FIT |
| MOUNTING FACILITY QUANTITY | 1 |
| BRUSH SPRING ADJUSTABILITY | NONADJUSTABLE |
| BRUSH PRESSURE SPRING | NOT INCLUDED |
| BRUSH QUANTITY ACCOMMODATED PER HOLDER | 1 |
| MANUFACTURERS CODE | 13499 |
| DESIGN CONTROL REFERENCE | 234-0139-00 |
Restrictions/Controls & Freight Information | NSN 5977-00-238-6824
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 062120 | GENERATORS/MOTORS/PARTS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5977-00-238-6824
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9G | Navy-owned stocks of defense general material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9G | Defense Supply Center Richmond Richmond, VA 23297 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
