NSN 5975-01-548-2314 HJ1058BPK25, 01-548-2314, 015482314
Product Details | STUFFING TUBE
5975-01-548-2314 An item specifically designed to pass an electrical cable or tube through a continuous structure with provisions for packing so as to prevent the leakage of liquids and/or gases through the opening. May include packing nut(s), adapter(s), washer(s), gasket(s), bushing(s), packing(s), cap(s), and/or plug(s).
Part Alternates: HJ1058BPK25, 5975-01-548-2314, 01-548-2314, 5975015482314, 015482314
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 14 FEB 2007 | 01-548-2314 | 00882 ( STUFFING TUBE ) |
Drawings & Photos | NSN 5975-01-548-2314
Cross Reference | NSN 5975-01-548-2314
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HJ1058BPK25 | 74545 | HUBBELL INC WIRING DEVICE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-548-2314
Technical Data | NSN 5975-01-548-2314
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYIMIDE OVERALL |

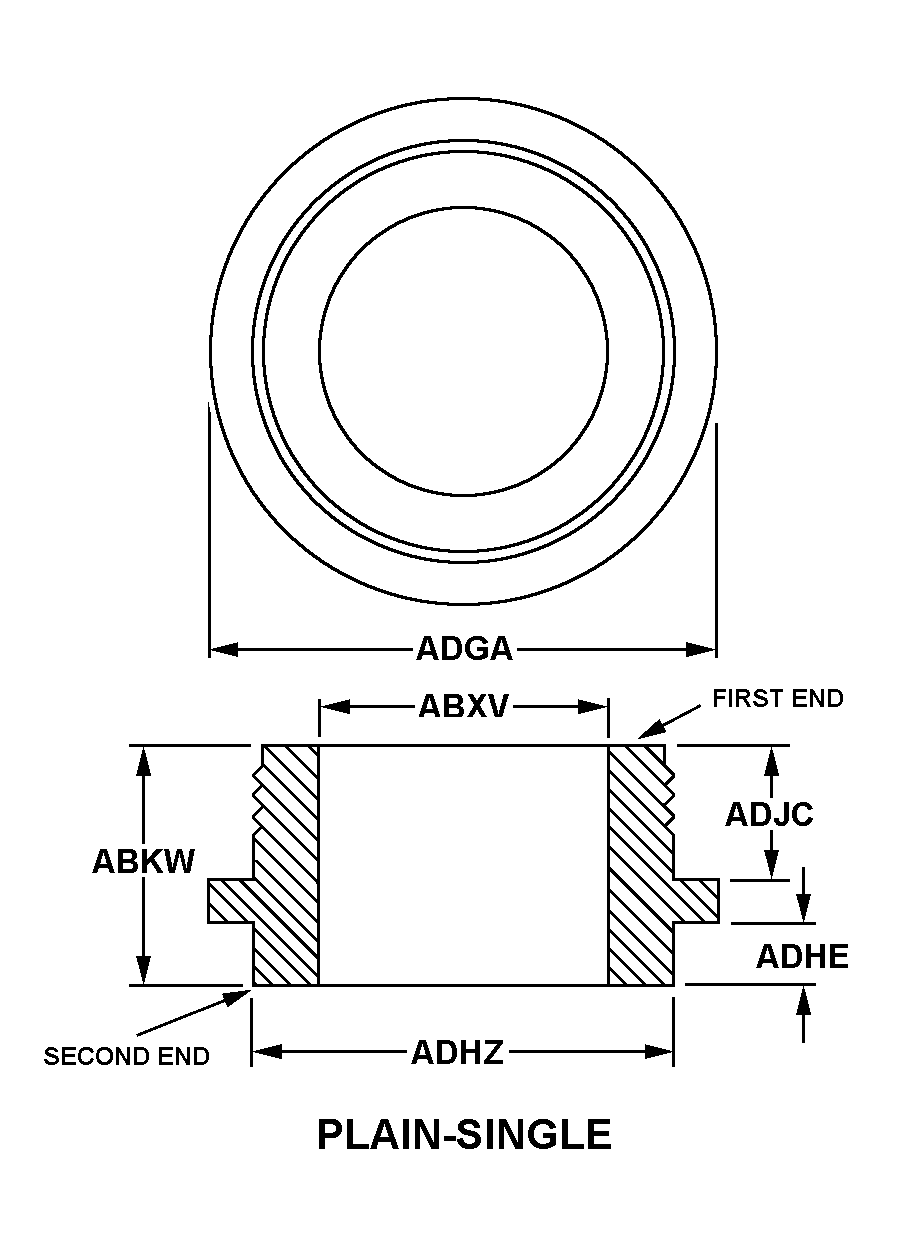

| STYLE DESIGNATOR | 53 PLAIN-SINGLE |
| BORE DIAMETER | 0.250 INCHES MINIMUM AND 0.310 INCHES MAXIMUM |
| SPECIAL FEATURES | PACKAGED 25 PER CARTON; COLOR - BLACK |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | CORD CONNECTOR |
Restrictions/Controls & Freight Information | NSN 5975-01-548-2314
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HX | Navy ICP Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-548-2314
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
