NSN 5975-01-544-1856 DF188736 FIND AY87, DF188736FINDAY87, DN188736C11AY87
Product Details | JUNCTION BOX
5975-01-544-1856 An enclosure of other than cast metal designed to house, mount, and protect, but does not include wiring connections or electrical device(s) such as terminals and/or terminal boards, switches, jacks, fuseholders, connectors, circuit breakers and the like. It is designed for and may include a cover and such accessories as mounting hardware, brackets, locks, clamps, mounts and conduit fittings. Excludes CONDUIT OUTLET; and CHAMBER, CABLE TERMINAL. For boxes which include electrical device(s) such as terminals and/or terminal boards, switches, fuseholders, jacks, connectors, circuit breakers and the like, or combinations thereof, see SWITCH BOX; FUZE BOX; JACK BOX; TERMINAL BOX; CIRCUIT BREAKER BOX; and DISTRIBUTION BOX. For boxes wired to provide the interconnecting facilities for a specific major group of electronic items outside of the box, see INTERCONNECTING BOX. See also INTERCONNECTING CABINET.
Part Alternates: DF188736 FIND AY87, DF188736FINDAY87, DN188736C11AY87, DN188736C11-AY87, 15090713, 469-6726341 FIND AY87, 4696726341FINDAY87, 5975-01-544-1856, 01-544-1856, 5975015441856, 015441856
Electrical and Electronic Equipment Components | Electrical Hardware and Supplies
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 59 | 04 OCT 2006 | 01-544-1856 | 06219 ( JUNCTION BOX ) |
Drawings & Photos | NSN 5975-01-544-1856
Cross Reference | NSN 5975-01-544-1856
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5975-01-544-1856
Technical Data | NSN 5975-01-544-1856
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C4 SQUARE-TWO GANG BOX |
| BODY LENGTH | 4.500 INCHES NOMINAL |
| BODY WIDTH | 2.125 INCHES NOMINAL |
| INSIDE DEPTH | 1.000 INCHES NOMINAL |
| ENTRANCE QUANTITY | 2 |
| COVER MOUNTING HOLE QUANTITY | 8 |
| COVER TYPE | FLAT |
| COVER OPENING SHAPE AND QUANTITY | 1 SQUARE |

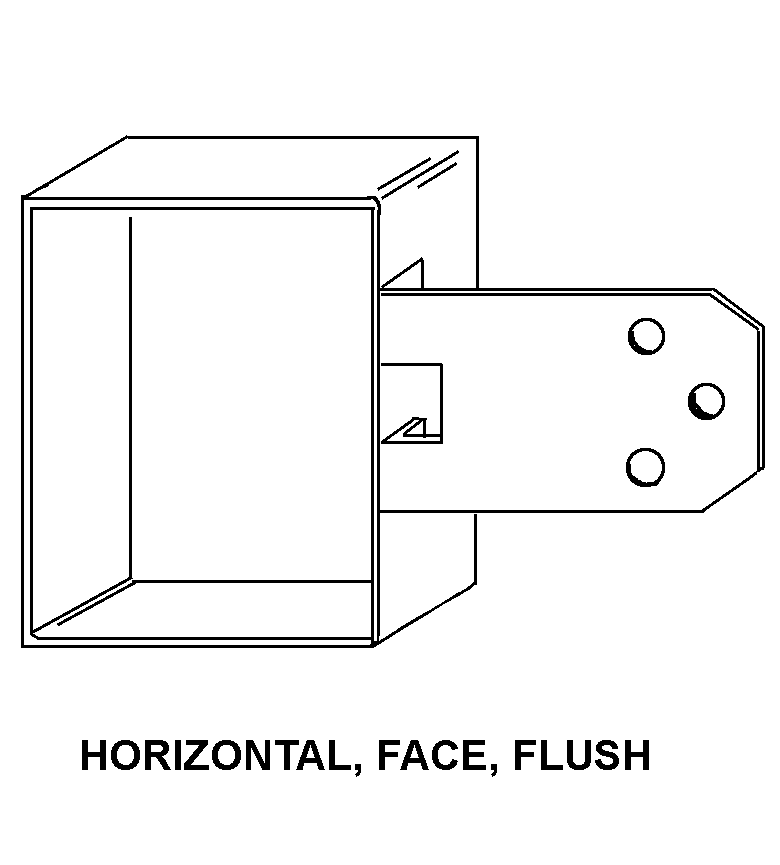

| MOUNTING BRACKET STYLE | E1 HORIZONTAL, FACE, FLUSH |
| MATERIAL | ALUMINUM ALLOY OVERALL |
| COVER ATTACHMENT METHOD | SCREW AND WASHER |
| ENVIRONMENTAL PROTECTION | MOISTURE PROOF AND WEATHER RESISTANT |
| SPECIAL FEATURES | ITEM IS FURNISHED W/ALL THE HARDWARE FOR A FUNCTIONAL JUNCTION BOX |
| III END ITEM IDENTIFICATION | SEAWOLF CLASS SSN |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | ANCHOR PROFILER JACKBOX |
Restrictions/Controls & Freight Information | NSN 5975-01-544-1856
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 063160 | SWITCH BOXES/ELEC ENCLOSURES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5975-01-544-1856
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
